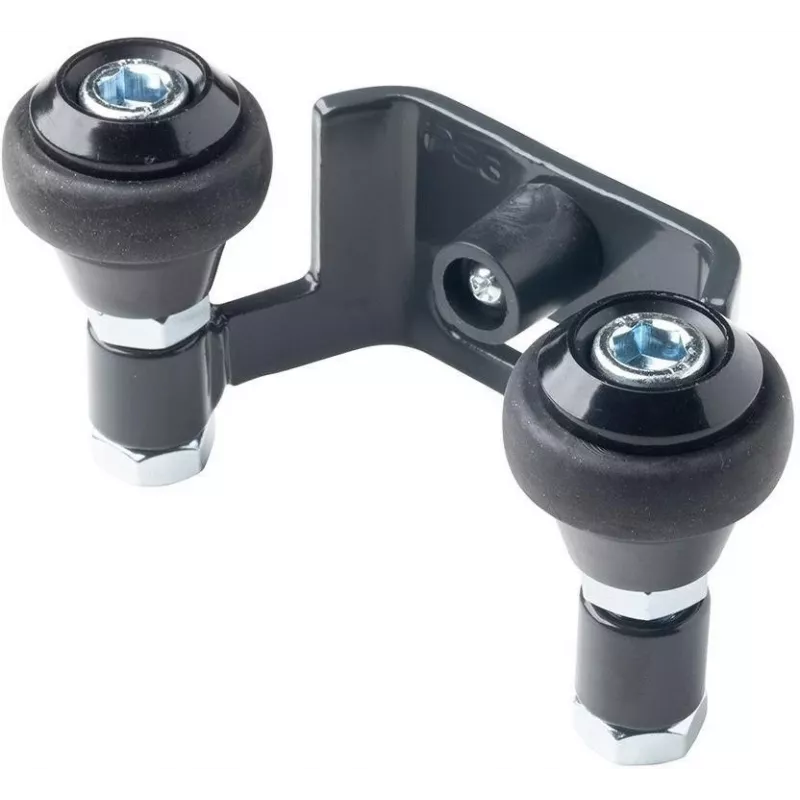

PSG soporte de guía superior 60 mm para puertas correderas, 2 rodillos, antracita RAL 7016 (60.023.7016)

Sliding gates are only as reliable as the hardware that keeps them on track. Without a proper upper guide, gates can sway, derail, or wear unevenly, leading to costly repairs and safety hazards. The PSG Upper Guide Bracket 60 mm solves this by providing a sturdy, top-mounted roller system that stabilizes the gate's movement, ensuring smooth and secure operation every time.

Who is it for

Ideal for homeowners, contractors, and facility managers installing or maintaining sliding gates on residential, commercial, or industrial properties. Whether you are replacing worn-out guides or building a new gate system, this bracket is a dependable choice for gates up to 60 mm roller diameter.

Main features

• Two polyamide rollers (60 mm diameter) ensure low-noise, smooth sliding motion.
• Steel bracket with powder-coated anthracite finish (RAL 7016) offers excellent corrosion resistance and a sleek look.
• Bolt-on installation makes mounting quick and straightforward.
• Fixed roller position provides consistent guidance for the top edge of the gate.
• Weather-resistant construction handles outdoor conditions with minimal maintenance.

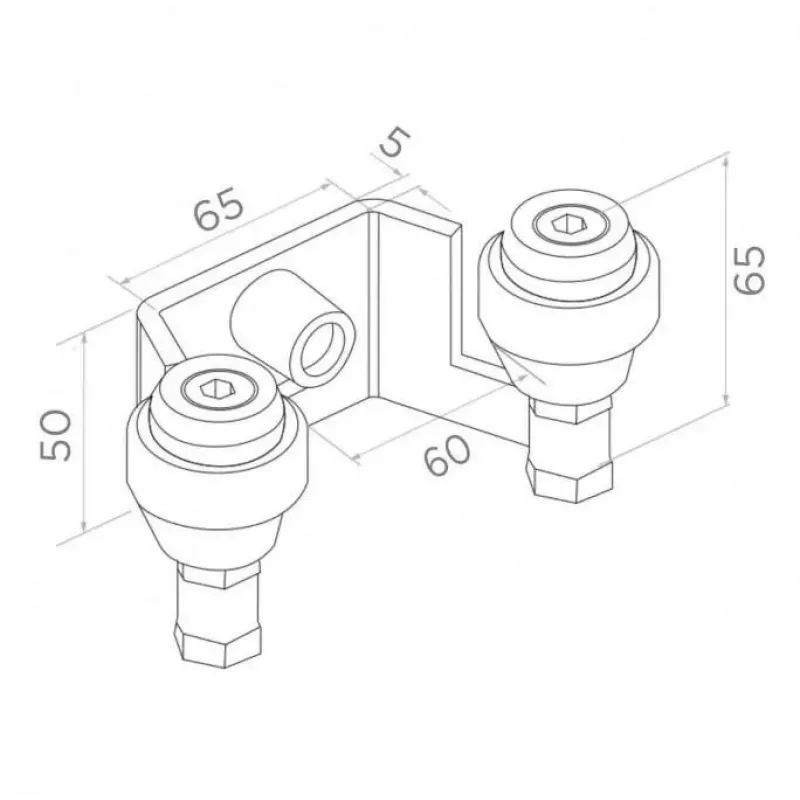

Specifications

• Product Type: Upper Guide Bracket
• Application: Sliding Gates
• Number of Rollers: 2
• Roller Diameter: 60 mm
• Roller Material: Polyamide (PA)
• Bracket Material: Steel
• Finish: Powder-coated
• Colour: Anthracite (RAL 7016)
• Mounting Position: Top / Upper
• Installation Type: Bolt-on
• Compatibility: Suitable for various sliding gate profiles
• Corrosion Resistance: Yes
• Weather Resistance: Yes
• Noise Level: Low
• Maintenance Requirements: Low
• Adjustability: Fixed roller position

Tips

Ensure the bracket is aligned with the gate's top track and securely bolted to a solid surface. Periodically check roller wear and clean any debris to maintain optimal performance.
