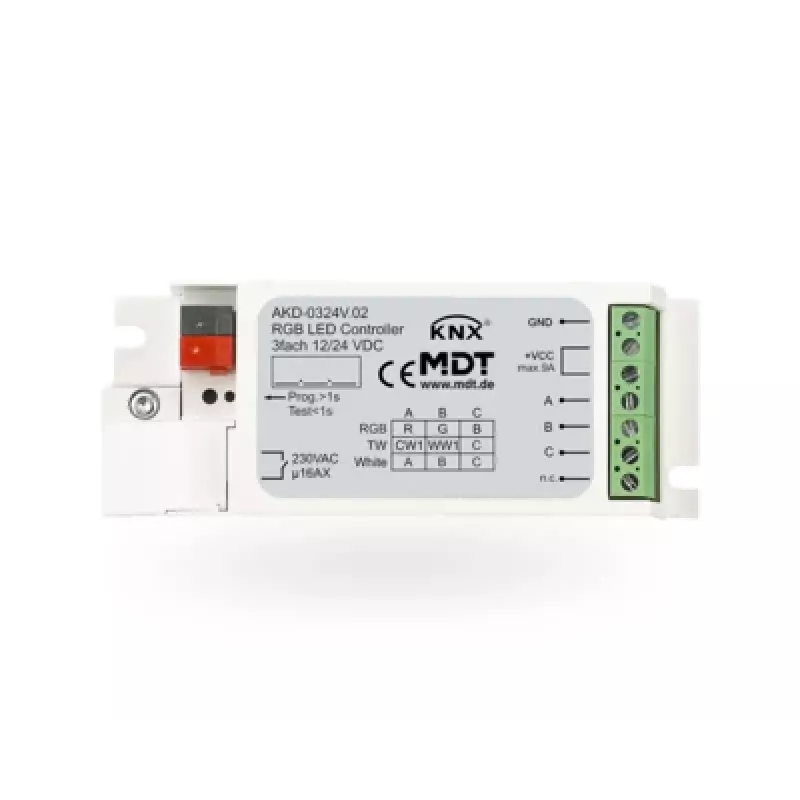

MDT AKD-0324V.02 controlador LED KNX, 3 canales RGB/RGBW, 3A por canal, montaje empotrado

This KNX LED controller delivers precise, flicker-free dimming for RGB, RGBW, tunable white, and single-color LED strips. With three independent channels rated at 3 A each and a total output of 6 A, it supports complex lighting scenes and dynamic color sequences directly from the KNX bus.

Advantages

16-bit dimming resolution ensures smooth transitions from 0 to 100% brightness. Adjustable minimum and maximum brightness levels let you tailor the lighting to any mood or task. Short-circuit and overload protection safeguard connected LED strips, while manual control and status feedback simplify commissioning and troubleshooting.

Suitable for

• Residential KNX installations with RGB or RGBW LED strips
• Commercial spaces requiring tunable white or dynamic color lighting
• Flush-mount applications in standard wall boxes

Key specifications

• Control protocol: KNX
• Number of channels: 3
• Output current per channel: 3 A
• Total output current: 6 A
• LED input voltage: 12–24 V DC
• Dimming range: 0–100%
• Dimming resolution: 16 bit
• Installation: flush-mount
• Protection class: IP20
• KNX bus voltage: 21–30 V DC
• KNX bus current: max. 10 mA
• Operating temperature: 0°C to +45°C
• Connection: screw terminals
• Advanced functions: scenes, sequences, staircase light, manual control, status feedback

Recommendations

Pair with a KNX power supply and compatible LED strips for a complete, high-performance lighting control solution.
