Miboxer PZ2 controlador LED Zigbee 3.0+ 2.4G, CCT/regulador 2 en 1, DC 12-48V, 20A

LED controller for dual white (CCT) or single color dimming, combining Zigbee 3.0+ and 2.4GHz RF protocols for flexible smart lighting control. Supports DC 12-48V input and up to 20A total output current, delivering up to 960W at 48V.

Advantages

Dual wireless connectivity allows integration with Zigbee gateways like Philips Hue and SmartThings, as well as direct control via MiLight/MiBoxer remotes. PWM dimming ensures smooth 0-100% brightness adjustment without flicker. Compact ABS housing with screw terminals enables easy installation in tight spaces.

Suitable for

• Smart home lighting systems requiring both Zigbee and RF control
• LED strips or fixtures with dual white tunable color temperature
• Single color LED lighting needing high power dimming up to 960W
• Retrofit projects where existing MiLight remotes are in use

Key specifications

• Input voltage: DC 12-48V
• Max output current: 20A total
• Max output power: 240W @12V, 480W @24V, 960W @48V
• Wireless protocols: Zigbee 3.0+, 2.4GHz RF (MiLight/MiBoxer)

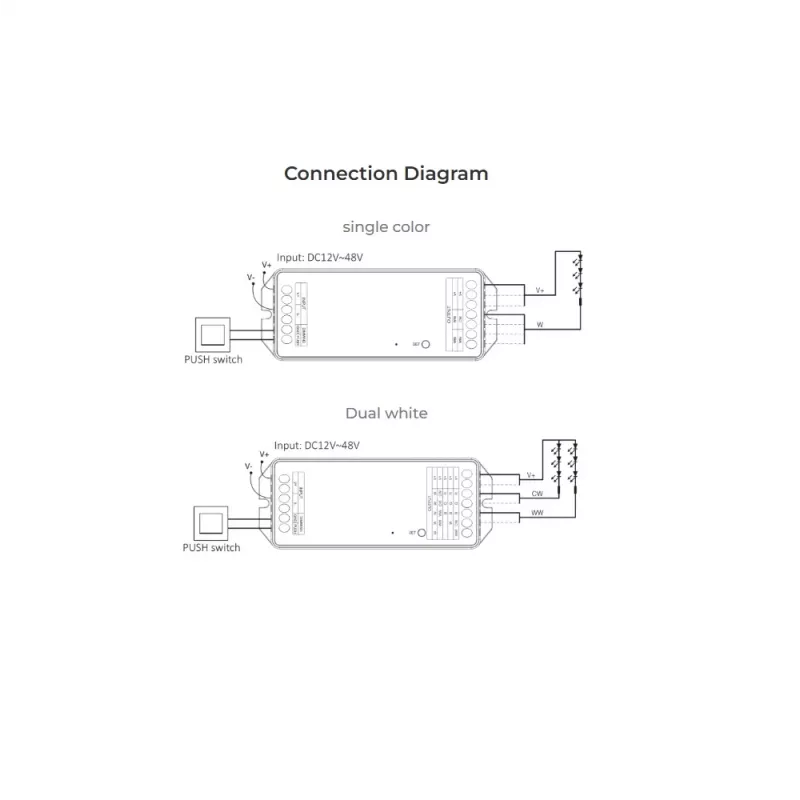

• Output channels: 2 (CCT) or 1 (dimmer)
• Dimming: PWM, 0-100%
• Operating temperature: -20°C to +60°C
• Dimensions: 97 x 45.5 x 20 mm, weight 70g

Recommendations

Pair with a compatible Zigbee gateway for app control and automation, or use MiLight remote for direct operation. Ensure power supply matches voltage and load requirements.
