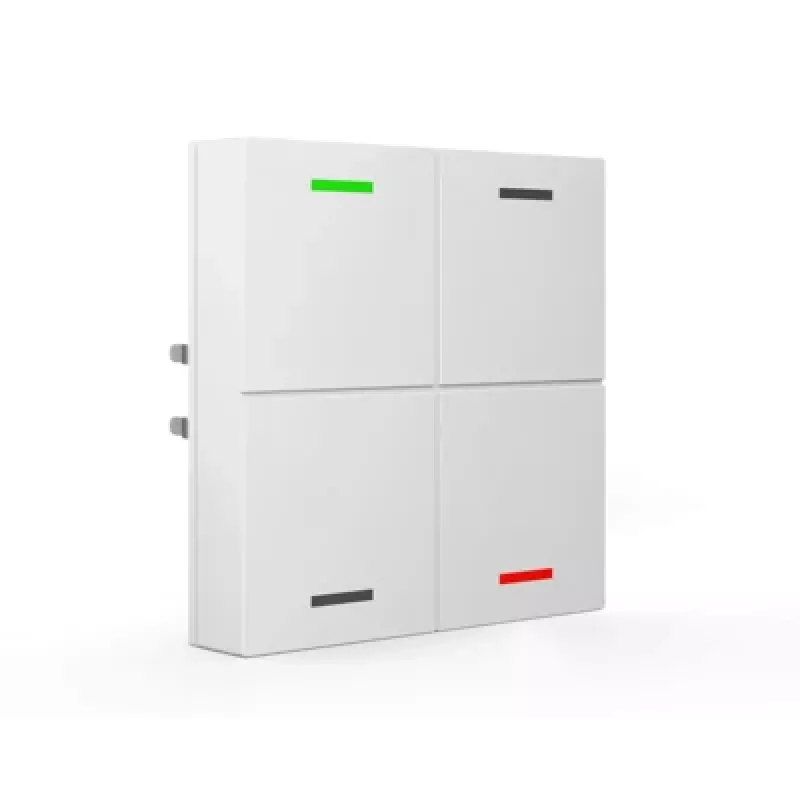

MDT BE-TAL63T4.01 Sensor táctil de cristal KNX 4-fach con LEDs de estado RGBW, sensores de temperatura, proximidad y luminosidad, Studio blanco brillante

Managing lighting, blinds, and room climate from a single wall station can be challenging, especially when you need clear visual feedback and automatic convenience. The MDT BE-TAL63T4.01 Taster Light 63 is a KNX glass push-button sensor with four buttons, each equipped with RGBW status LEDs for customizable indication. It integrates temperature, proximity, and brightness sensors to enable intelligent automation and energy-efficient control.

Who is it for

This device is ideal for KNX smart home and building automation projects where a premium glass design and multi-functional control are required. It suits electricians, system integrators, and homeowners who want a reliable, feature-rich wall controller for lighting, shading, and HVAC.

Main features

• 4-fold push-button interface with individual RGBW status LEDs per button
• Integrated temperature sensor for room climate control (1-stage or 2-stage heating/cooling)
• Proximity sensor automatically activates backlight and functions upon approach
• Brightness sensor enables light-dependent automation
• Acoustic feedback via integrated buzzer for button press confirmation
• Adjustable backlight brightness for optimal visibility
• Functions: switching, dimming, blinds control, value sender, scene recall
• Flush-mounted installation in standard wall box, powered via KNX bus (21-30V DC)
• Configuration via ETS, firmware update possible

Specifications

• Bus System: KNX
• Product Type: Glass Push-button Sensor
• Number of Buttons: 4
• Material: Glass surface
• Colour: Studio White Glossy Neutral
• Protection Class: IP20
• Operating Temperature: 0°C to +45°C
• Mounting Type: Flush-mounted
• Power Supply: KNX Bus (21-30V DC)
• Configuration Software: ETS

Tips

For best results, plan the button functions and LED colours in ETS before installation. The proximity sensor can be used to wake the display only when someone approaches, saving energy and extending LED life. Ensure the wall box depth is sufficient for the device and KNX connector.
