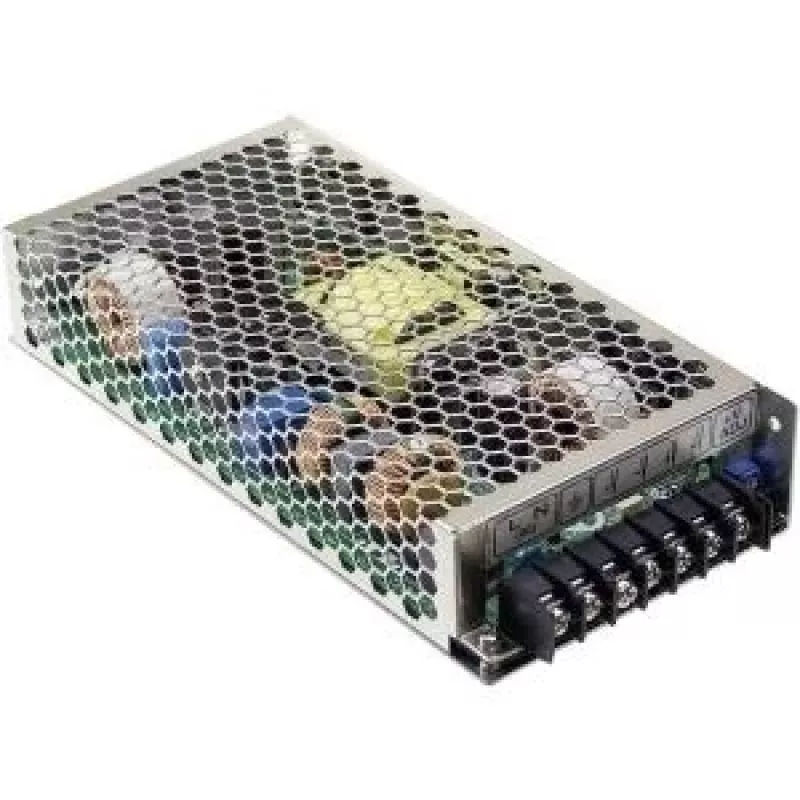

MEAN WELL HRP-200-24 201,6W 24V 8,4A fuente de alimentación cerrada con PFC, 1U Low Profile

The HRP-200-24 stands out among industrial power supplies by delivering a full 201.6 watts from a slim 1U-high metallic enclosure — a rare combination of power density and passive cooling. Unlike many competitors that require forced air, this unit relies on free air convection, making it ideal for noise-sensitive installations and tight equipment racks.

Highlights

• 201.6 W output at 24 VDC, 8.4 A
• Universal AC input: 85–264 VAC (120–370 VDC)
• Built-in active PFC for high efficiency up to 89%
• 1U low-profile metal case, convection cooled
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• Safety approvals: UL60950-1, TUV EN60950-1, CB, CE
• 5-year manufacturer warranty

In daily use

This power supply is engineered for continuous operation in industrial automation, LED lighting, test equipment, and communication systems. The wide input range handles unstable mains conditions, while the 3 kVAC isolation between input and output ensures safe operation. With an operating temperature span from -30°C to +70°C and humidity tolerance up to 90% RH non-condensing, it performs reliably in harsh environments. The compact dimensions (199 × 98 × 38 mm) and low weight (0.85 kg) simplify integration into 19-inch racks and control cabinets.

Full specifications

• Output power: 201.6 W
• Output voltage: 24 VDC
• Output current: 8.4 A
• Input voltage: 85–264 VAC / 120–370 VDC
• Efficiency: up to 89%
• Form factor: 1U low profile
• Cooling: free air convection
• Protections: short circuit, overload, over voltage, over temperature
• PFC: active
• Operating temperature: -30°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity: 20–90% RH non-condensing
• Isolation voltage: 3 kVAC (input to output)
• Safety standards: UL60950-1, TUV EN60950-1, CB, CE
• Enclosure: metallic case
• Warranty: 5 years

Final note

For projects where space is at a premium but power demands are high, the HRP-200-24 delivers dependable, silent performance backed by MEAN WELL's proven reliability.
