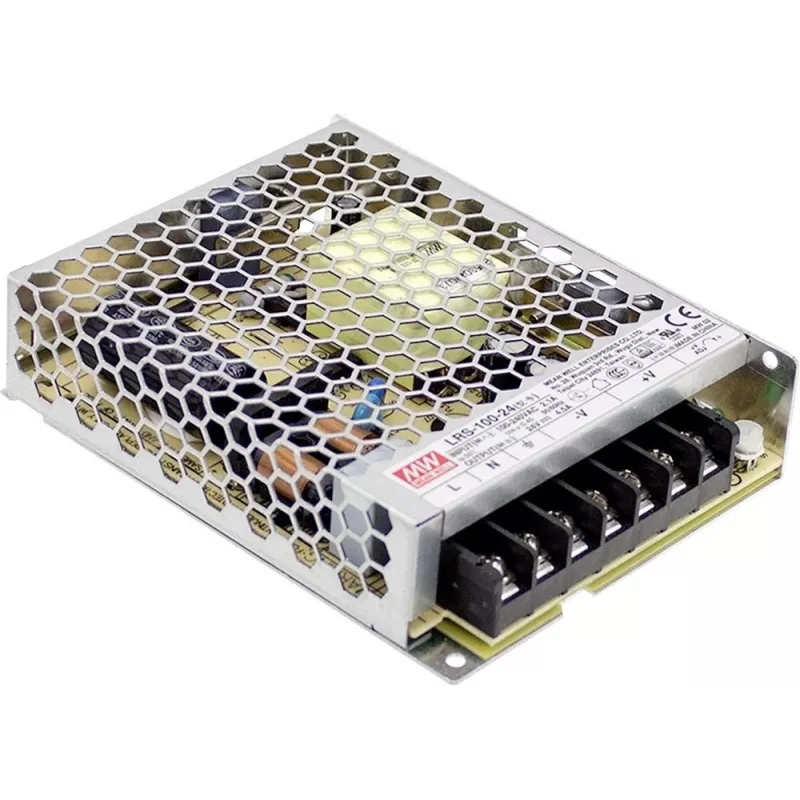

MEAN WELL LRS-100-24 fuente de alimentación conmutada industrial de salida única 108W 24V DC 4,5A carcasa metálica

For automation and control panels that demand a stable 24V rail without fan noise or premature failure, the LRS-100-24 stands apart from typical open-frame units. Its fully enclosed metal case shields sensitive electronics from dust and accidental contact, while free-air convection cooling eliminates moving parts that wear out. The result is a power supply that can be mounted directly on a chassis or DIN rail adapter and forgotten for years.

Highlights

• 108W continuous output at 24V DC with 4.5A current
• Wide 85–264VAC input range with 120–370VDC option
• High efficiency up to 89% and low no-load consumption <0.3W
• Built-in overload, overvoltage, and short-circuit protection
• Compact metal enclosure, chassis mount, -30°C to +70°C operation

In daily use

Technicians appreciate the LRS-100-24 for its straightforward integration. The output voltage can be fine-tuned from 21.6V to 28.8V via the built-in potentiometer, compensating for voltage drop in long cable runs. The hiccup-mode overload protection automatically recovers after a fault is cleared, reducing downtime in unattended installations. With 3.75kVAC isolation between input and output, it safely powers low-voltage circuits in industrial machinery, LED lighting arrays, and test benches.

Full specifications

• Output: 24V DC, 4.5A, 108W
• Input: 85–264VAC / 120–370VDC, 47–63Hz
• Efficiency: 89% typical
• Ripple & noise: 150mVp-p
• Voltage adjustment: 21.6–28.8V
• Overload protection: 110–150% hiccup mode, auto-recovery
• Overvoltage protection: 28.8–33.6V shutdown, auto-recovery
• Operating temperature: -30°C to +70°C
• Cooling: free air convection
• Safety standards: UL62368-1, TUV EN62368-1, CB, CE
• Harmonic current: EN61000-3-2 Class A
• MTBF: >700K hrs per MIL-HDBK-217F

Final note

MEAN WELL's LRS series is a proven workhorse in industrial power, and the LRS-100-24 delivers exactly what its datasheet promises: reliable 24V power in a rugged, compact package.
