MEAN WELL RS-15-12 fuente de alimentación conmutada cerrada 15W 12VDC 1,25A 85-264VAC

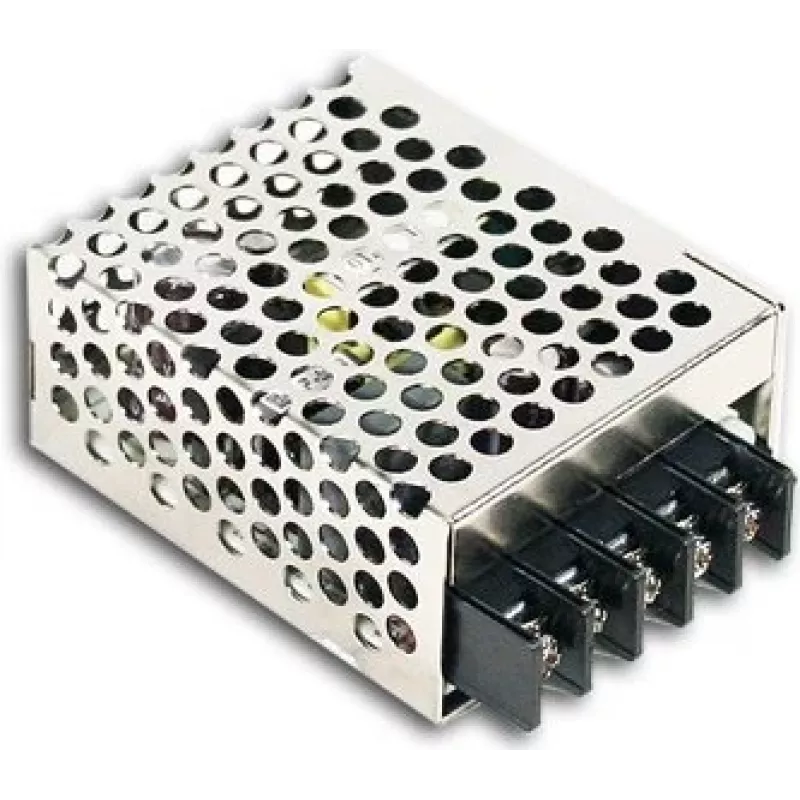

With an efficiency of 83%, the MEAN WELL RS-15-12 delivers 15W of reliable DC power from a universal AC input, making it an excellent choice for industrial and automation applications. This enclosed switching power supply converts 85-264VAC to a stable 12VDC output at up to 1.25A, all within a compact metal case that withstands temperatures from -20°C to 70°C.

Overview

The RS-15-12 is part of MEAN WELL's popular RS-15 series, known for its high reliability and cost-effectiveness. It features a full range AC input, making it suitable for worldwide use without any adjustment. The unit is designed for chassis mounting and cooled by free air convection, ensuring silent operation. Built-in protections against short circuit, overload, over voltage, and over temperature safeguard both the power supply and connected equipment.

What stands out

• Universal AC input (85-264VAC) for global compatibility
• High efficiency up to 83%, reducing energy waste and heat
• Compact metal housing with chassis mount for easy integration
• Comprehensive protection: short circuit, overload, over voltage, over temperature
• Wide operating temperature range: -20°C to +70°C
• Low ripple and noise (120mVp-p) for stable output
• Safety certifications: UL60950-1, TUV EN60950-1, CB, CE

Technical details

• Output power: 15W
• Output voltage: 12VDC
• Output current: 1.25A
• Input voltage: 85-264VAC
• Input frequency: 47-63Hz
• Input current: 0.35A at 115VAC, 0.25A at 230VAC
• Efficiency: 83%
• Ripple & noise: 120mVp-p
• Voltage adjustment range: ±10%
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Cooling: Free air convection
• Mounting: Chassis mount
• Dimensions: 99 x 82 x 35 mm (L x W x H)
• Weight: 0.3 kg

Our verdict

The MEAN WELL RS-15-12 is a robust and dependable power supply that excels in demanding environments. Its universal input, high efficiency, and comprehensive protections make it a top choice for engineers and system integrators seeking a long-lasting power solution.
