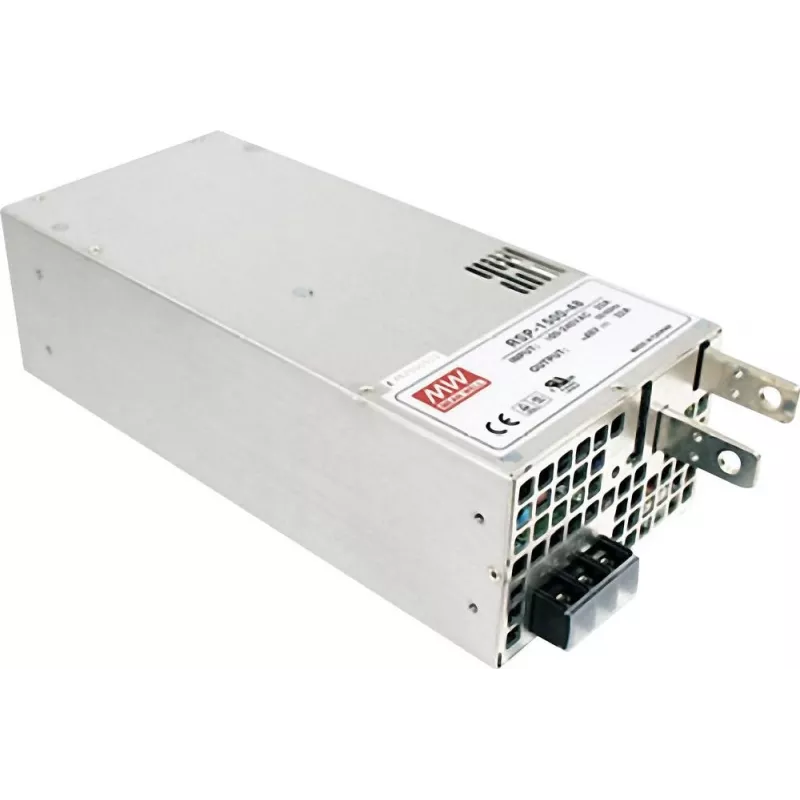

MEAN WELL RSP-1500-48 - Fuente de alimentación cerrada 1536W 48V 32A con PFC

Industrial-grade enclosed switching power supply delivering 1536W at 48V DC with active PFC and 91% efficiency. Built for demanding automation, control, and high-power LED applications.

Advantages

High efficiency reduces energy costs and heat generation. Active PFC ensures compliance with EN61000-3-2. Built-in DC fan provides effective cooling. Parallel operation up to 3 units for higher power or redundancy. Remote ON/OFF and remote sense enable flexible system integration. Comprehensive protections include overload, overvoltage, over-temperature, and short-circuit.

Suitable for

• Industrial automation and control systems
• High-power LED lighting and signage
• Telecommunications equipment
• Test and measurement instruments
• Charging systems for batteries

Key specifications

• Power Output: 1536 W
• Output Voltage: 48 V DC
• Output Current: 32 A
• Input Voltage: 90-264 V AC (127-370 V DC)
• Input Frequency: 47-63 Hz
• Efficiency: 91%
• Power Factor Correction: Active PFC
• Hold-up Time: 10 ms at 230 V AC full load
• Cooling: Built-in DC fan
• Operating Temperature: -20 to +70 °C
• Auxiliary Output: 5 V @ 0.3 A
• Parallel Function: Up to 3 units
• Remote Control: Remote ON/OFF, Remote Sense
• Protections: Overload, Overvoltage, Over-temperature, Short-circuit
• Mounting: Chassis mount with screw terminals

Recommendations

For reliable high-power DC supply in industrial environments, the RSP-1500-48 offers excellent performance and flexibility. Ensure proper ventilation and consider parallel configuration for redundancy or increased capacity.
