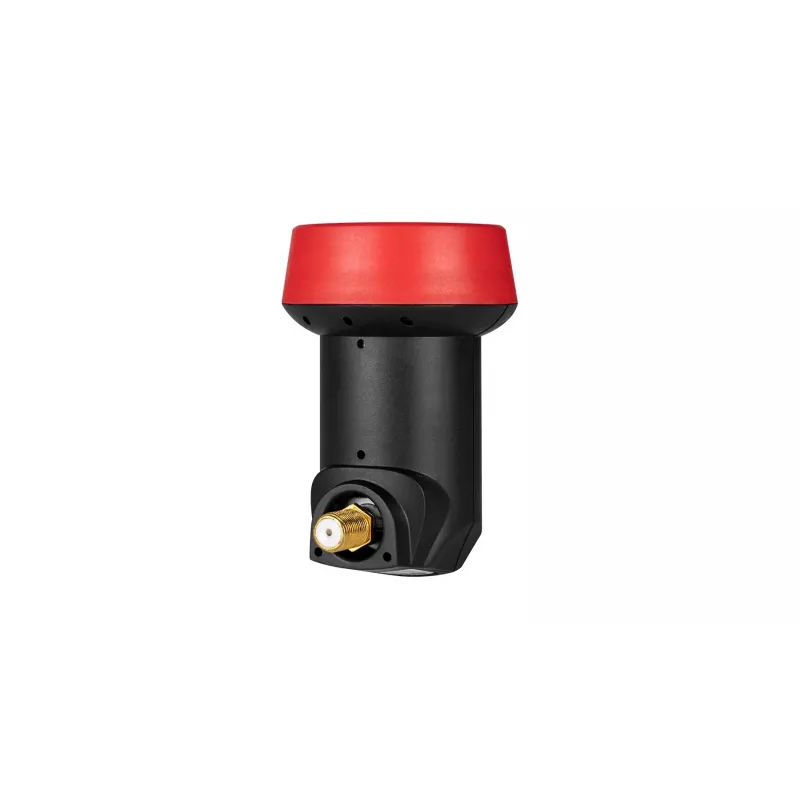

Megasat 0400011 Convertidor de señal de bajo ruido 10,7 - 12,75 GHz negro - rojo

Satellite reception in fringe areas or with long cable runs often suffers from signal degradation. The Megasat 0400011 Low-Noise Signal Converter addresses this by amplifying and converting the entire Ku-band satellite signal directly at the dish. Its exceptionally low noise figure of 0.1 dB ensures that weak signals remain usable, making it a reliable choice for single-participant systems in homes, holiday cabins, or mobile setups.

Key specifications

• Universal single LNB with one output
• Input frequency range: 10.7 - 12.75 GHz
• Output frequency range: 950 - 2150 MHz
• Low band LO frequency: 9.75 GHz, high band LO frequency: 10.6 GHz
• Noise figure: 0.1 dB (typ.)
• Conversion gain: 55 - 65 dB
• Feed diameter: 40 mm
• F-connector with integrated pull-out weather protection cap
• Operating temperature: -30°C to +60°C
• Current consumption: max. 110 mA
• Colour: black/red

Why choose it

This converter combines a very low noise figure with high conversion gain, ensuring stable reception even under challenging conditions. The integrated weather protection cap shields the F-connector from moisture and corrosion, extending the product's lifespan. Its compact 40 mm feed diameter fits standard satellite dishes, and the clear black/red colour scheme aids in quick identification during installation.

Ideal use cases

• Single-family homes with one satellite receiver
• Caravans, motorhomes, and boats with satellite TV
• Replacement for faulty or outdated LNBs
• Installations in regions with weak satellite footprints

Good to know

The LNB switches polarization via 13/18 V and frequency band via 0/22 kHz, fully compatible with standard satellite receivers. Its robust operating temperature range makes it suitable for outdoor use in most climates. For best results, align the dish precisely and use high-quality coaxial cable with minimal signal loss.
