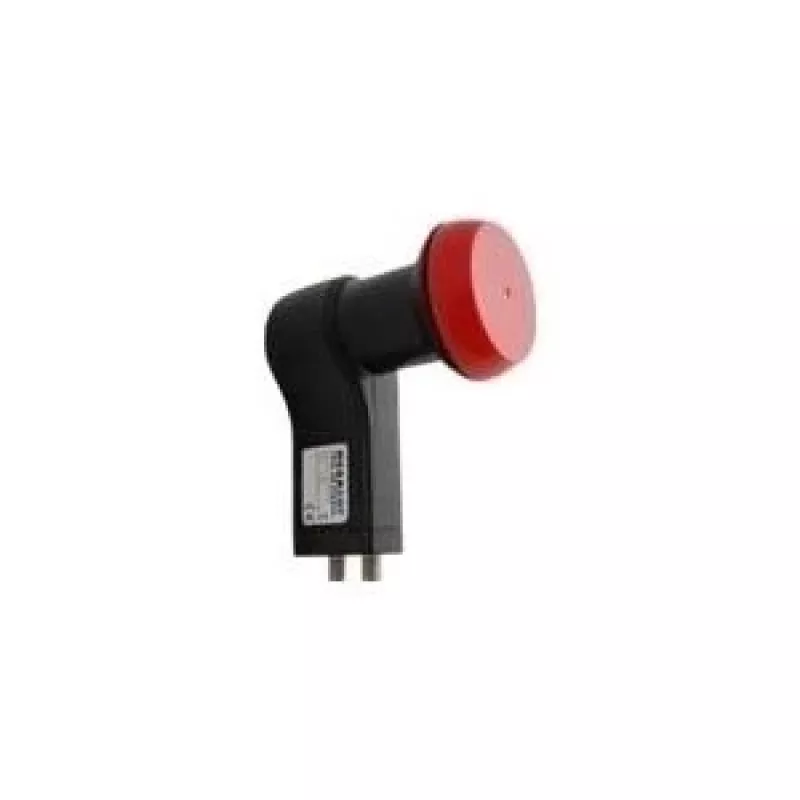

Megasat Diavolo Twin LNB 0,1dB – LNB de satélite Twin universal con 2 salidas, baja figura de ruido, feedhorn de 40mm

Weak satellite signal and poor reception can ruin your TV experience, especially when multiple receivers need to be connected. The Megasat Diavolo Twin LNB solves this by providing a reliable, low-noise signal distribution for two independent tuners or set-top boxes from a single satellite dish.

Who is it for

This LNB is ideal for households or small installations where two satellite receivers or a PVR with dual tuners need to operate simultaneously. It suits users who demand high-quality signal reception for standard, HD, and 4K broadcasts without interference or signal loss.

Main features

• Twin universal LNB with two independent F-type outputs
• Ultra-low noise figure of just 0.1 dB for crystal-clear reception
• Wide input frequency range: 10.7 - 12.75 GHz
• Integrated weather protection cap for durability in all conditions
• Compatible with HDTV and 4K satellite transmissions
• 40mm feedhorn diameter fits standard satellite dishes

Specifications

• LNB Type: Twin Universal
• Outputs: 2 (F-type)
• Noise Figure: 0.1 dB (typical)
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• LO Frequency (Low Band): 9.75 GHz
• LO Frequency (High Band): 10.6 GHz
• Conversion Gain: 55 dB (min.)
• Feed Diameter: 40 mm
• Polarization Switching: 13V (Vertical) / 18V (Horizontal)
• Band Switching: 0 kHz / 22 kHz Tone
• Cross Polarization Isolation: >20 dB
• Operating Temperature: -30°C to +60°C
• Connector Type: F-connector
• Current Consumption: 120 mA (max.)
• Weather Protection: Integrated weather protection cap

Tips

For optimal performance, ensure the LNB is properly aligned with your satellite dish and that the feedhorn is securely mounted. Use high-quality coaxial cable with minimal signal loss to maintain the low noise advantage. If you experience signal issues, check the polarization and band switching settings on your receiver.
