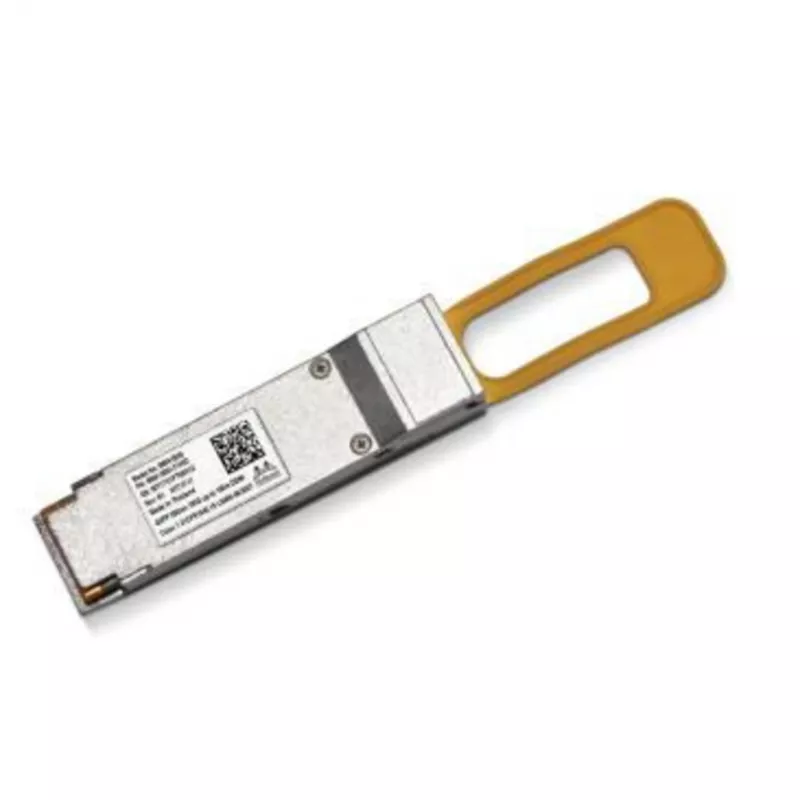

Mellanox NVIDIA Módulo transceptor QSFP28 100GBASE-SR4 - MPO multimodo - 100 m - 850 nm

The Mellanox NVIDIA QSFP28 100GBASE-SR4 Transceiver Module is a high-performance, hot-pluggable optical module designed for 100 Gigabit Ethernet connectivity over multi-mode fiber. It delivers reliable, low-latency data transmission for data center and enterprise networks, supporting distances up to 100 meters using MPO connectors.

Advantages

This transceiver module offers exceptional performance and energy efficiency, consuming less than 3.5W. It supports Digital Diagnostics Monitoring (DDM) for real-time performance tracking and is fully compatible with NVIDIA Mellanox Spectrum switches, ensuring seamless integration. The hot-swappable design simplifies maintenance and upgrades without network downtime.

Suitable for

• Data center interconnects
• High-performance computing (HPC) environments
• Enterprise network backbone
• Cloud and service provider networks

Key specifications

• Device Type: Transceiver module
• Form Factor: QSFP28
• Data Rate: 100 Gigabit Ethernet
• Optical Standard: 100GBASE-SR4
• Max Transfer Distance: 100 m (328 ft)
• Wavelength: 850 nm
• Fiber Type: Multi-mode Fiber (MMF)
• Cabling Type: MPO Multi-mode Fiber
• Connector Type: MPO-12 (female)
• Number of Lanes: 4 Transmit, 4 Receive
• Power Consumption: < 3.5 W
• Hot-Swappable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compatibility: NVIDIA Mellanox Spectrum Switches (SN2100, SN2700, SN3420, SN3700C, SN4600C)
• Protocols: Ethernet
• Compliance: IEEE 802.3bm 100GBASE-SR4, RoHS

Recommendations

For optimal performance, pair this module with NVIDIA Mellanox Spectrum switches and use high-quality MPO multi-mode fiber cabling. Ensure proper handling and installation to maintain signal integrity.
