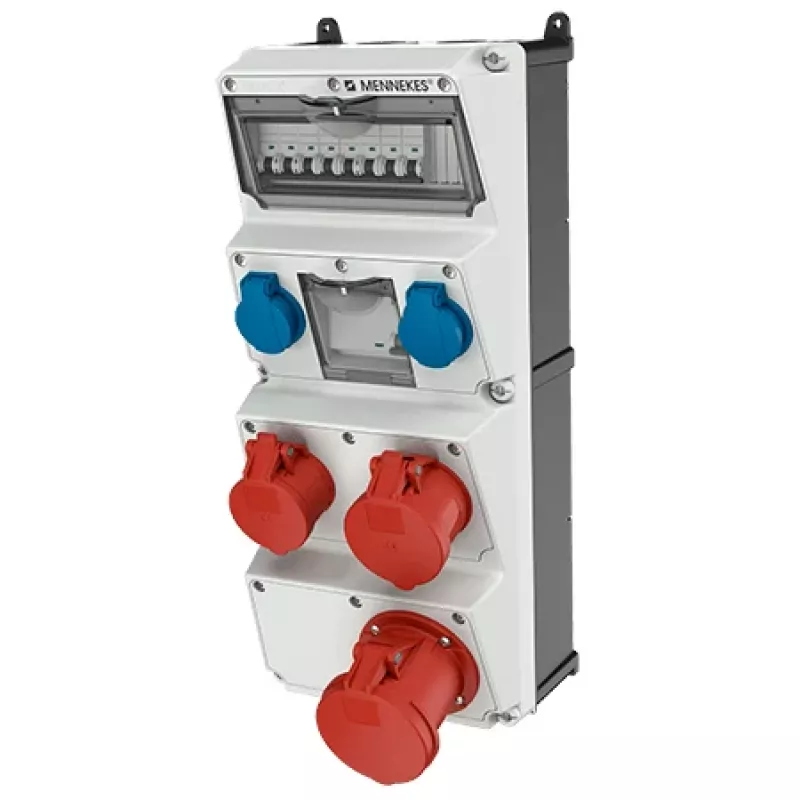

MENNEKES AMAXX combinación de tomas de corriente 940010 - entrada CEE 32A, 6 tomas, protección FI/LS, IP44

Industrial socket combination from the AMAXX series, delivering a robust 32 A CEE power feed with integrated RCD and MCB protection for safe distribution across six outlets. The grey AMAPLAST housing is IP44 splash-proof and designed for wall mounting in demanding environments.

Advantages

Centralized power distribution with individual circuit breakers per outlet group, a 30 mA residual current device for personnel protection, and a transparent hinged cover that shields sockets from dust and water while keeping them accessible.

Suitable for

• Construction sites and temporary installations
• Workshops and industrial workstations
• Outdoor events requiring splash-proof power

Key specifications

• Input: CEE plug 32 A, 5-pole, 400 V
• Outputs: 1x CEE 32 A 5-pole, 2x CEE 16 A 5-pole, 3x Schuko 16 A
• Protection: RCD 63 A 30 mA Type A, MCBs 32 A and 16 A C-curve
• Housing: AMAPLAST polycarbonate, grey, IP44
• Mounting: Wall-mounted, M32 cable gland entry

Recommendations

Verify that the upstream supply is protected by an appropriate overcurrent device and that the installation complies with local electrical regulations. Use only compatible CEE plugs and Schuko connectors.
