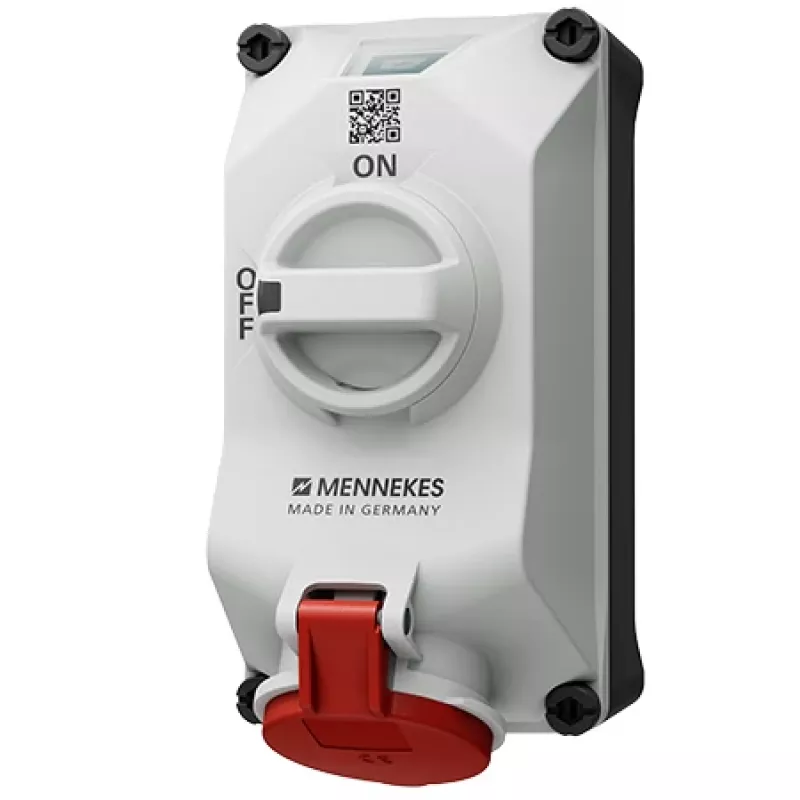

Mennekes DUOi 16A 5 polos 6h 400V IP44 toma CEE de montaje en pared 5611506G

The Mennekes DUOi 5611506G stands out with its robust Amaplast housing and spring-loaded hinged cover, offering reliable splash-proof performance for demanding industrial environments. Unlike many standard sockets, it combines a 16 A current rating with a 5-pole configuration and 6h earth position, making it ideal for three-phase 400 V applications.

Highlights

• 16 A rated current with 5-pole (3P+N+PE) configuration
• 400 V rated voltage, 50/60 Hz frequency
• IP44 splash-proof protection with hinged, spring-loaded cover
• Durable Amaplast (polyamide) housing with IK08 impact resistance
• Wall-mounted design with screw terminals for secure wiring

In daily use

Designed for fixed installation, this socket provides a dependable connection point for industrial equipment. The spring-loaded cover automatically closes when not in use, protecting the contacts from moisture and debris. Multiple cable entries with M25/M32 knockouts allow flexible wiring options, while the nickel-plated brass contacts ensure low contact resistance and long-term reliability.

Full specifications

• Socket type: CEE industrial socket
• Mounting type: Wall-mounted
• Rated current: 16 A
• Number of poles: 5-pole (3P+N+PE)
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• Time position (earth contact): 6 h
• Ingress protection: IP44
• Housing material: Amaplast (polyamide)
• Contact material: Brass, nickel-plated
• Connection technology: Screw terminals
• Max. conductor cross-section: 4 mm²
• Cable entry: Multiple (e.g., 2x M25/M32 knockouts)
• Colour: Grey (RAL 7035) / Blue (RAL 5012)
• Standards: IEC 60309-1, IEC 60309-2
• Product series: DUOi
• Operating temperature: -25°C to +40°C
• Impact resistance: IK08
• Cover type: Hinged, spring-loaded cover

Final note

A reliable wall-mounted CEE socket for industrial power distribution, built to withstand tough conditions while ensuring safe and efficient connections.
