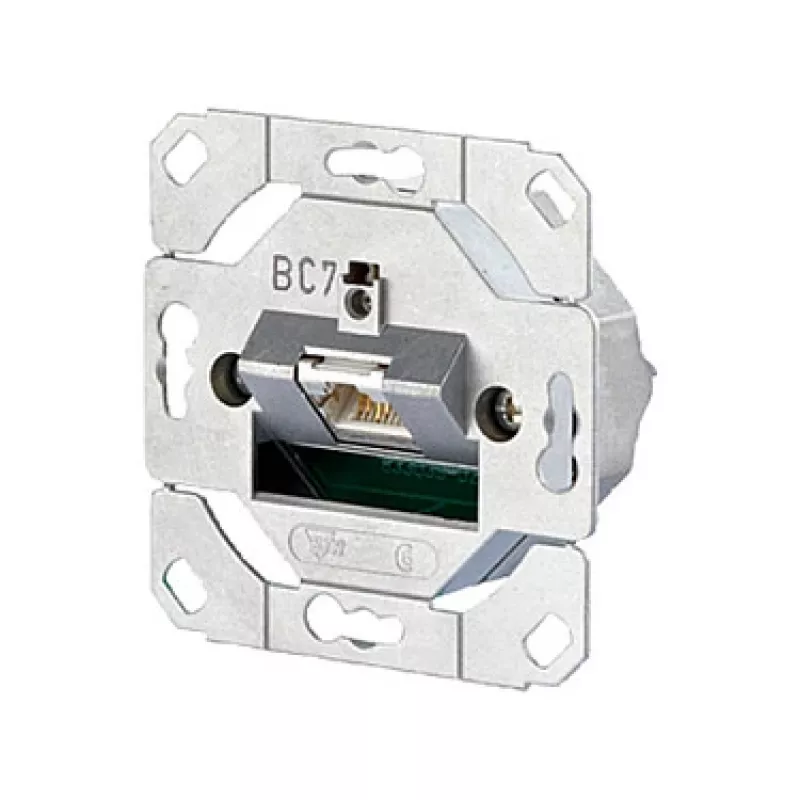

Metz Connect 130C371200-I E-DAT C6A Toma empotrable de 1 puerto

The Metz Connect 130C371200-I is a flush-mount outlet from the E-DAT C6A series, featuring one RJ45 port. It is designed for Ethernet networks and supports 10 GBit Ethernet (IEEE 802.3an) as well as Power over Ethernet (PoE, PoE plus, and UPoE). The outlet is suitable for installation in standard flush-mounted boxes and cavity wall boxes.

Key features

• Channel connection unit with one 8-pole RJ45 socket
• Cat.6A component tested according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08), and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
• Complies with Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06 and DIN EN 50173-1:2011-09
• Tested: component up to 600 MHz, link up to 800 MHz
• For 10 GBit Ethernet (IEEE 802.3an)
• Suitable for Power over Ethernet (PoE, PoE plus, and UPoE)
• HF-optimized and ergonomically shaped LSA connection terminal
• Screw fastening of the flap for strain relief and shield connection from the front
• Practical cable feed from 8 directions
• Connection of data cables AWG26/1 - 22/1 (solid wire)
• Plug direction angled 45° downwards
• Compatible with design central plates of switch ranges
• Suitable for installation in standard flush-mounted boxes and cavity wall boxes
• Without cover parts

Specifications

• Brand: METZ
• MPN: 130C371200-I
• Ethernet LAN: Yes
• Socket type: RJ-45
• Number of sockets: 1
• Network cable category: 6a
• Product colour: Stainless steel
