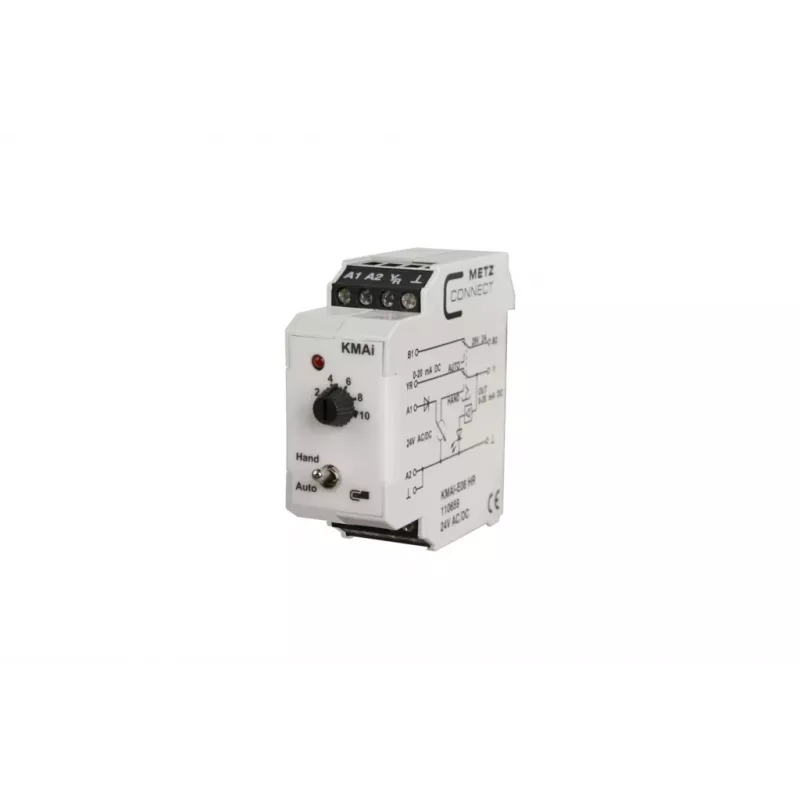

METZ CONNECT 110659 módulo de relé de potencia en miniatura, 1 conmutador, bobina 24 V DC, 6 A, blanco

Industrial control systems often require reliable switching of moderate loads with a compact, DIN-rail mountable relay. The METZ CONNECT 110659 miniature power relay module provides a single changeover contact rated for 6 A, driven by a 24 V DC coil, in a white polyamide housing. Its green LED indicates coil status, and a freewheeling diode protects against voltage spikes when switching inductive DC loads.

Who is it for

This relay module suits panel builders, machine integrators, and maintenance technicians who need a simple, space-saving relay for control circuits, signal multiplication, or isolation in automation environments. The screw terminals and TS35 DIN-rail mounting make installation straightforward in standard enclosures.

Main features

• 1 changeover contact (SPDT) with 6 A rated current
• 24 V DC coil with low power consumption (approx. 0.2 W)
• Green LED status indicator
• Freewheeling diode for DC inductive load protection
• DIN rail mounting (TS 35)
• Screw terminal connections
• White polyamide housing, IP20

Specifications

• Relay type: Miniature power relay module
• Contact configuration: 1 changeover (SPDT)
• Coil voltage: 24 V DC
• Rated contact current: 6 A
• Max switching voltage AC: 250 V AC
• Max switching voltage DC: 30 V DC
• Max switching power AC: 1500 VA
• Max switching power DC: 180 W
• Coil power consumption: 0.2 W
• Operating temperature: -20 °C to +60 °C
• Insulation voltage coil/contact: 4 kV AC
• Housing material: Polyamide (PA)
• Protection degree: IP20

Tips

When switching inductive DC loads, the integrated freewheeling diode reduces arcing and extends relay life. Ensure the coil polarity is correct for the diode to function. For AC loads, respect the maximum switching voltage and power limits to avoid contact welding.
