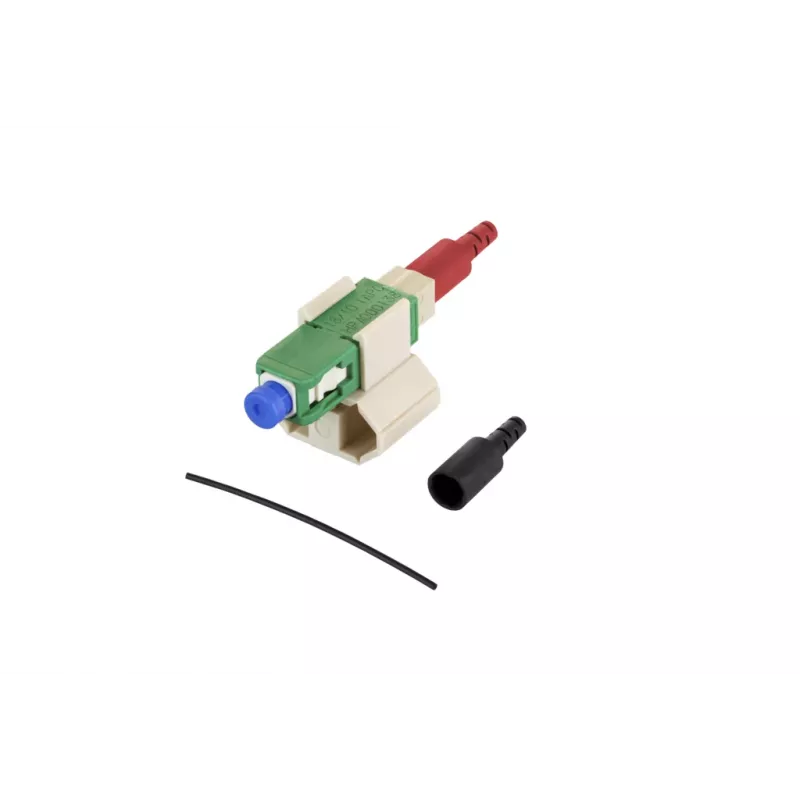

METZ CONNECT 1509QAEA0010-E Conector de montaje en campo SC OS2 Monomodo verde, 10 uds.

The METZ CONNECT 1509QAEA0010-E is a high-quality SC field assembly connector designed for single-mode OS2 fibre optic networks. This connector features a green housing and is supplied in a pack of 10 pieces, making it ideal for professional installations requiring reliable, low-loss connections.

Advantages

This field terminable connector offers quick and easy assembly without the need for epoxy or polishing, saving time and labour costs. With typical insertion loss of ≤0.2 dB and high return loss of ≥55 dB, it ensures excellent signal integrity. The durable zirconia ceramic ferrule and PBT housing provide long-term reliability and stability.

Suitable for

• Fibre optic network installations in telecom, data centres, and enterprise environments
• Field termination of single-mode cables with diameters 0.9 mm, 2.0 mm, or 3.0 mm
• Applications requiring SC/UPC connectors with OS2 performance

Key specifications

• Connector Type: SC
• Fibre Mode: Single-mode (OS2)
• Polishing: UPC
• Colour: Green
• Quantity: 10 pieces
• Insertion Loss (typical): ≤0.2 dB
• Insertion Loss (max): ≤0.3 dB
• Return Loss (typical): ≥55 dB
• Return Loss (min): ≥50 dB
• Ferrule Material: Zirconia Ceramic
• Housing Material: PBT
• Cable Diameter Compatibility: 0.9 mm, 2.0 mm, 3.0 mm
• Operating Temperature: -40°C to +85°C
• Durability: ≥500 mating cycles
• Standards: IEC 61754-4, TIA/EIA-604-3
• Flammability Rating: UL 94 V-0
• RoHS Compliant

Recommendations

For optimal performance, use with OS2 single-mode fibre cables and ensure proper cleaning before mating. This connector is suitable for both indoor and outdoor applications within the specified temperature range.
