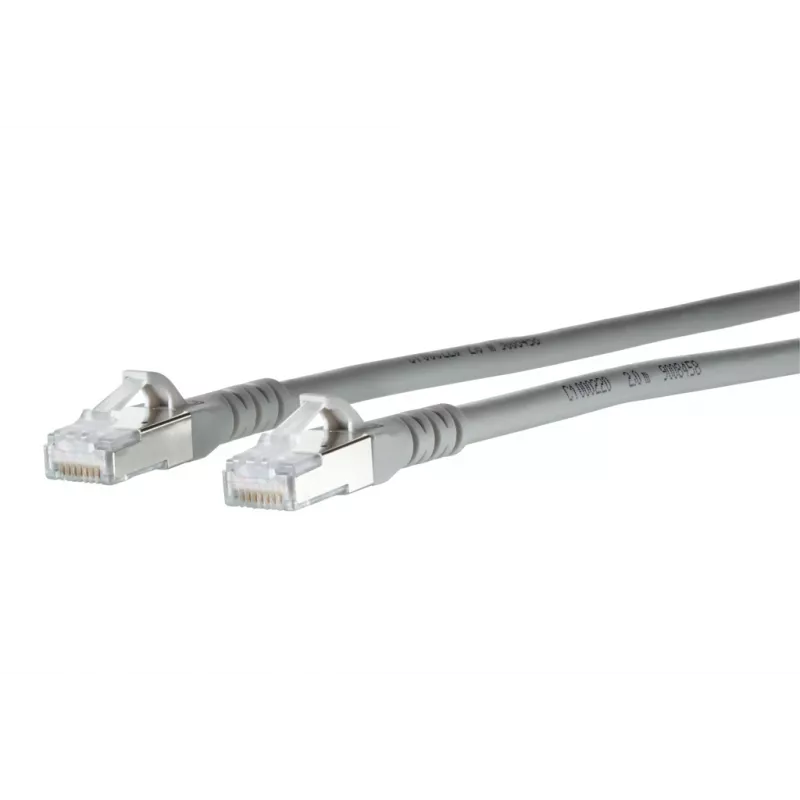

METZ CONNECT BTR 1308457533-E Cable de conexión RJ45 Cat.6A AWG26 S/FTP LSOH 7,5 m gris

The METZ CONNECT BTR 1308457533-E Patch Cable is a high-performance RJ45 network cable designed for demanding data center and enterprise network environments. With Cat.6A certification, it supports 10 Gigabit Ethernet (10GBASE-T) over the full 7.5-meter length, ensuring reliable high-speed data transmission. The S/FTP shielding (Screened/Foiled Twisted Pair) provides excellent protection against electromagnetic interference (EMI), making it ideal for installations near power lines or other sources of interference.

Advantages

This patch cable offers superior signal integrity and minimal crosstalk thanks to its S/FTP construction and gold-plated contacts. The LSOH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, emitting low smoke and no toxic halogen gases. The snagless molded boot protects the RJ45 connector tabs during installation and removal, increasing durability. Stranded conductors provide flexibility for easy routing in tight spaces.

Suitable for

• Data center server and switch connections
• Enterprise network infrastructure
• High-speed workstation connections
• PoE applications (PoE, PoE+, 4PPoE)
• Any environment requiring high EMI protection

Key specifications

• Cable Type: Ethernet Patch Cable
• Connector Type: RJ45 Male to RJ45 Male
• Cable Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Cable Length: 7.5 meters
• Colour: Grey
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor Material: Copper
• Halogen Free: Yes
• Flame Retardant: IEC 60332-1-2 compliant
• PoE Support: Yes (PoE, PoE+, 4PPoE)
• Connector Plating: Gold-plated contacts
• Boot Type: Snagless / Molded Boot
• Wiring Standard: TIA/EIA-568B

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and network cards. Ensure proper cable management to maintain bend radius and avoid signal degradation. Suitable for use in structured cabling systems requiring high reliability and safety.
