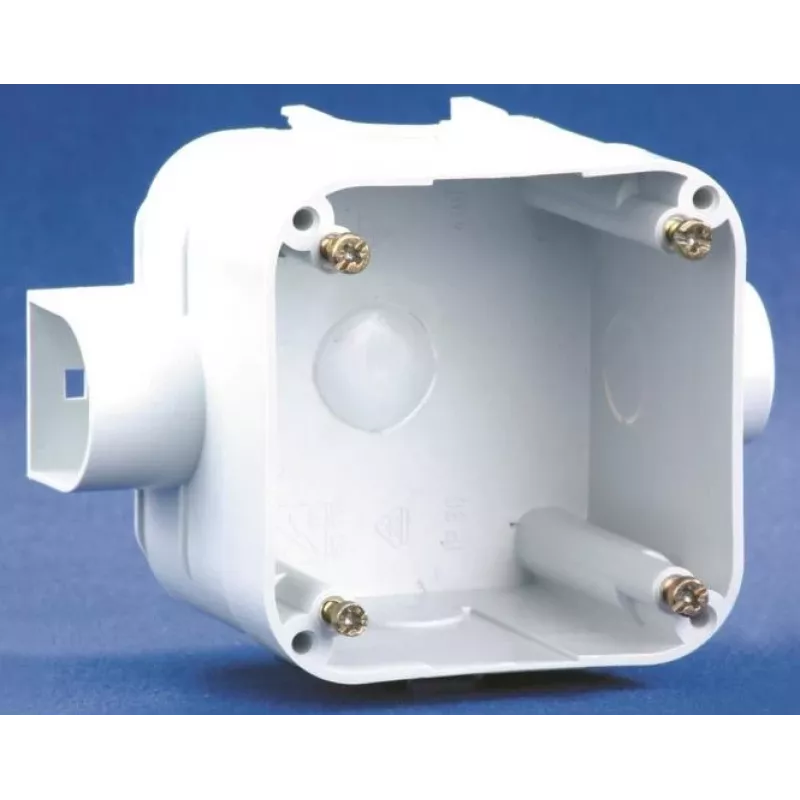

METZ CONNECT BTR E-DAT modul IP44S UP Carcasa - caja de empotrar, gris (1309441003-I)

For installations where dust and splashing water are a concern, the METZ CONNECT BTR E-DAT modul IP44S UP Housing offers a robust, flush-mounted enclosure that keeps network connections protected without compromising on accessibility. Unlike standard surface boxes, this grey underplaster housing integrates neatly into walls, providing a clean look while meeting IP44S ingress protection for damp and sheltered outdoor environments.

Highlights

• IP44S-rated protection against dust and splashing water, suitable for damp rooms and protected outdoor areas.
• Flush-mounted design for a discreet, professional finish in any installation.
• Accommodates two METZ CONNECT BTR E-DAT modul inserts, enabling versatile data connectivity.
• Durable thermoplastic (PC/ABS) construction with UV resistance and halogen-free, self-extinguishing properties.
• Central plate with integrated dust protection flaps keeps idle ports clean and ready for use.

In daily use

This housing is engineered for reliability in challenging conditions. The rear cable entry simplifies wiring during installation, while the shallow 30 mm installation depth allows it to fit into standard flush-mounted boxes. The grey colour blends with most interiors, and the dust protection flaps prevent debris from entering unused module slots, ensuring long-term performance. Whether installed in a bathroom, kitchen, or covered exterior wall, the housing maintains a secure and tidy connection point.

Full specifications

• Product type: Flush-mounted housing
• Mounting type: Flush-mounted (Unterputz)
• IP protection class: IP44S
• Colour: Grey
• Material: Thermoplastic (PC/ABS)
• Compatibility: METZ CONNECT BTR E-DAT modul inserts
• Number of module slots: 2
• Cable entry: Rear
• Application environment: Indoor, damp rooms, protected outdoor areas
• Operating temperature: -5 °C to +50 °C
• Storage temperature: -20 °C to +70 °C
• Flame retardancy: Self-extinguishing
• Halogen-free: Yes
• UV resistance: Yes
• Design features: Central plate with dust protection flaps
• Installation depth (box): Approx. 30 mm
• Outer dimensions (W x H x D): 80 x 80 x 45 mm
• Standards compliance: DIN EN 50173-1, ISO/IEC 11801 (system dependent)

Final note

A reliable and aesthetically pleasing solution for protected network connectivity, this housing pairs seamlessly with METZ CONNECT BTR E-DAT modules to deliver performance in demanding environments.
