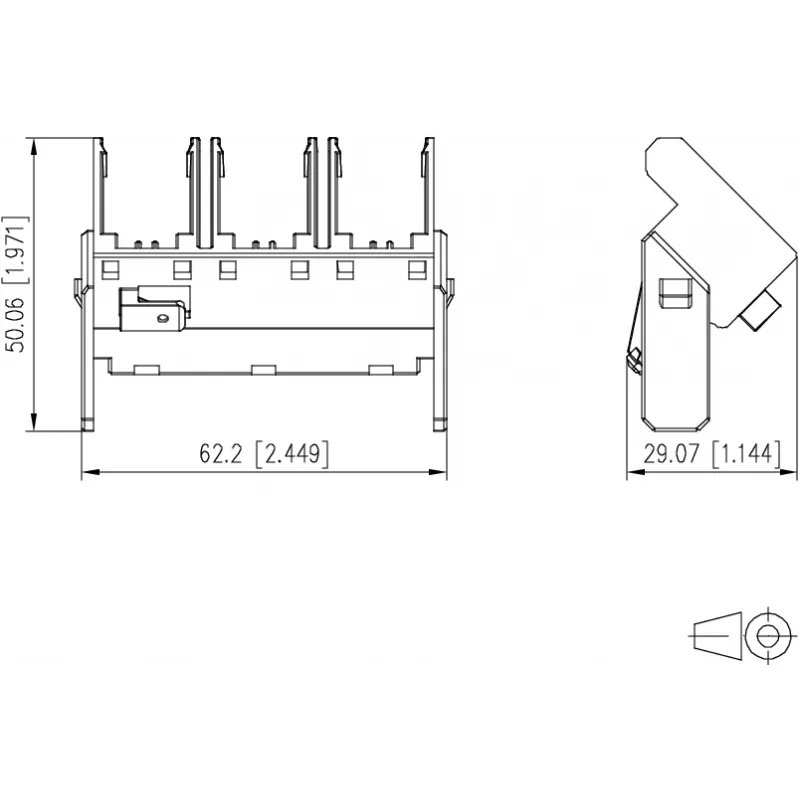

METZ CONNECT BTR E-DAT subway Marco modular de 3 puertos - Marco para conexiones

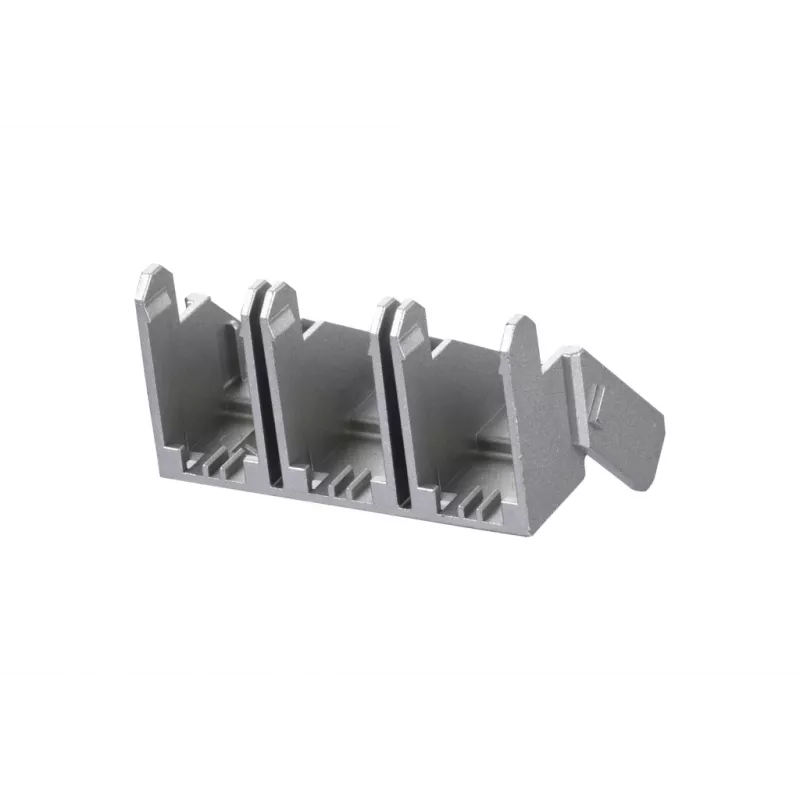

The METZ CONNECT BTR E-DAT subway 3 Port Module Frame is a high-quality module carrier frame designed for professional data network installations. It accommodates up to three METZ CONNECT E-DAT subway modules and is compatible with standard 50x50mm central plates. Ideal for use in office and residential environments, this frame supports both flush-mount and surface-mount installations.

Advantages

This module frame offers a modular and flexible solution for organizing network connections. Its snap-in mounting system ensures quick and secure installation. The frame is halogen-free and UV-resistant, providing long-lasting performance and safety. With a flammability rating of UL94 V-0, it meets high fire safety standards.

Suitable for

• Data network installations in offices and residential buildings
• Integration with METZ CONNECT E-DAT subway modules
• Flush-mount (UP) or surface-mount (AP) boxes

Key specifications

• Number of Ports/Modules: 3
• Color: Pure White (RAL 9010)
• Material: Thermoplastic (PC/ABS)
• Protection Class: IP20 (when installed correctly)
• Operating Temperature: -5 °C to +50 °C
• Standard Compliance: DIN 49075

Recommendations

For a complete installation, pair this frame with METZ CONNECT E-DAT subway modules and appropriate flush-mount or surface-mount boxes. Ensure proper installation to achieve IP20 protection.
