METZ CONNECT BTR UAE 25x8(8) Panel de parcheo Cat.6 apantallado, 25 puertos, 1U, gris claro 130887-E

Managing high-density network connections in a 19-inch rack often means choosing between port count, performance, and ease of installation. The METZ CONNECT BTR UAE 25x8(8) patch panel solves this by packing 25 shielded RJ45 ports into a single rack unit, delivering Cat.6 performance with tool-free module installation and robust shielding for demanding environments.

Who is it for

This patch panel is built for network administrators, data center technicians, and IT installers who need a reliable, high-density termination point for shielded cabling. It suits enterprise networks, industrial facilities, and any infrastructure where electromagnetic interference is a concern and uptime is critical.

Main features

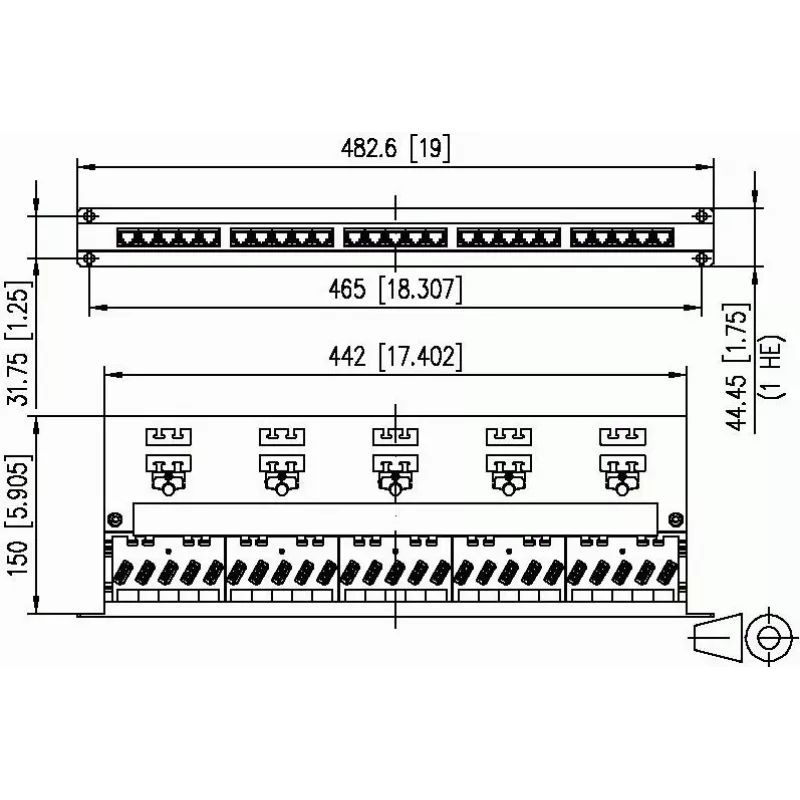

• 25 shielded RJ45 ports in a compact 1U 19-inch rack-mount form factor
• Cat.6 performance compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2
• Tool-free module installation from the front for quick setup and maintenance
• LSA-Plus (IDC) termination supports solid (AWG 24/1–22/1) and stranded (AWG 26/7–22/7) conductors
• Central grounding bolt ensures effective earthing for shielded installations
• Gold-plated contacts rated for over 750 mating cycles
• Supports Power over Ethernet (PoE, PoE+, and 4PPoE per IEEE 802.3af/at/bt) for powering devices directly through the panel
• Robust sheet steel housing with light grey (RAL 7035) front panel for durability and a professional appearance
• Wide operating temperature range from -40°C to +70°C for harsh environments

Specifications

• Brand: METZ
• Model: 130887-E
• MPN: 130887-E
• EAN: 4250184105091
• Number of Ports: 25
• Connector Type: RJ45 (8P8C)
• Shielding: Shielded
• Performance Category: Cat.6
• Mounting Type: 19-inch Rack Mount
• Rack Unit Size: 1U
• Termination Type: LSA-Plus (IDC)
• Supported Wire Gauge (Solid): AWG 24/1 - 22/1
• Supported Wire Gauge (Stranded): AWG 26/7 - 22/7
• PoE Support: Yes (PoE, PoE+, 4PPoE according to IEEE 802.3af/at/bt)
• Housing Material: Sheet steel
• Front Panel Color: Light grey (RAL 7035)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Contact Material: Gold-plated contacts
• Mating Cycles: > 750
• Operating Temperature: -40°C to +70°C
• Grounding: Central grounding bolt
• Module Installation: Tool-free from front

Tips

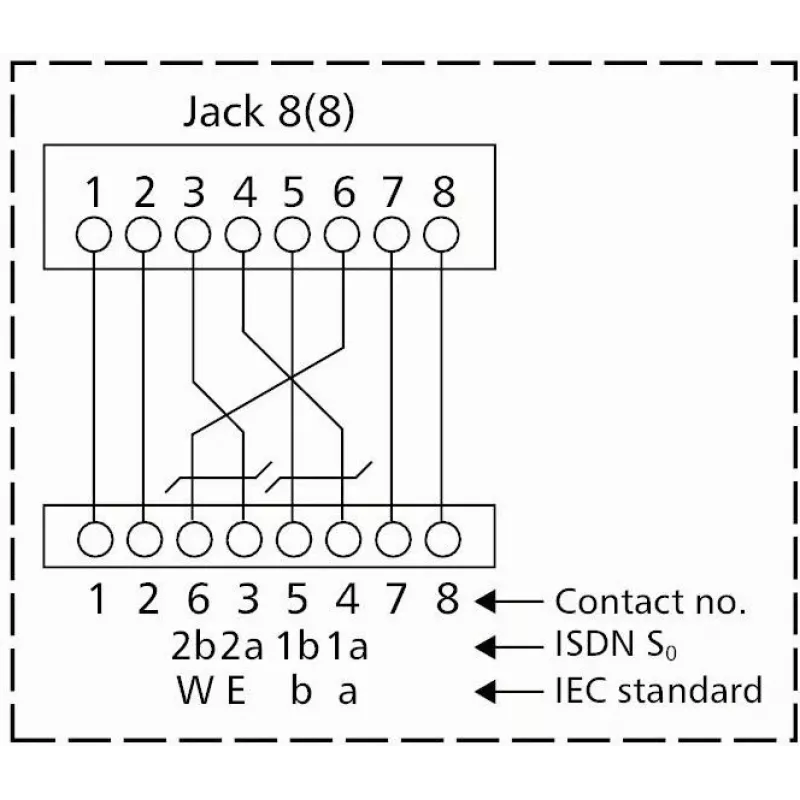

For best performance, use shielded Cat.6 or higher cabling and ensure proper grounding via the central bolt. When terminating, follow the color-coded LSA-Plus instructions to maintain pair twists as close to the IDC as possible. The tool-free module design allows for quick swaps without removing the panel from the rack, reducing downtime during moves, adds, and changes.
