METZ CONNECT C6Amodul K 180° 25G keystone jack, apantallado, Cat.6A, 25 Gigabit Ethernet, IDC sin herramientas, zamak, certificado GHMT 130B21-25-E

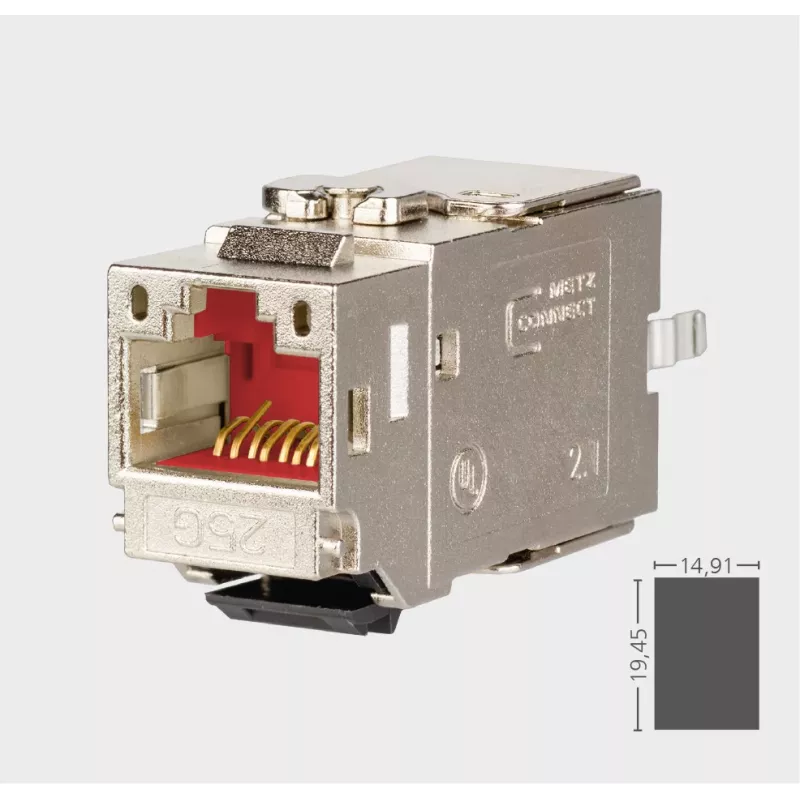

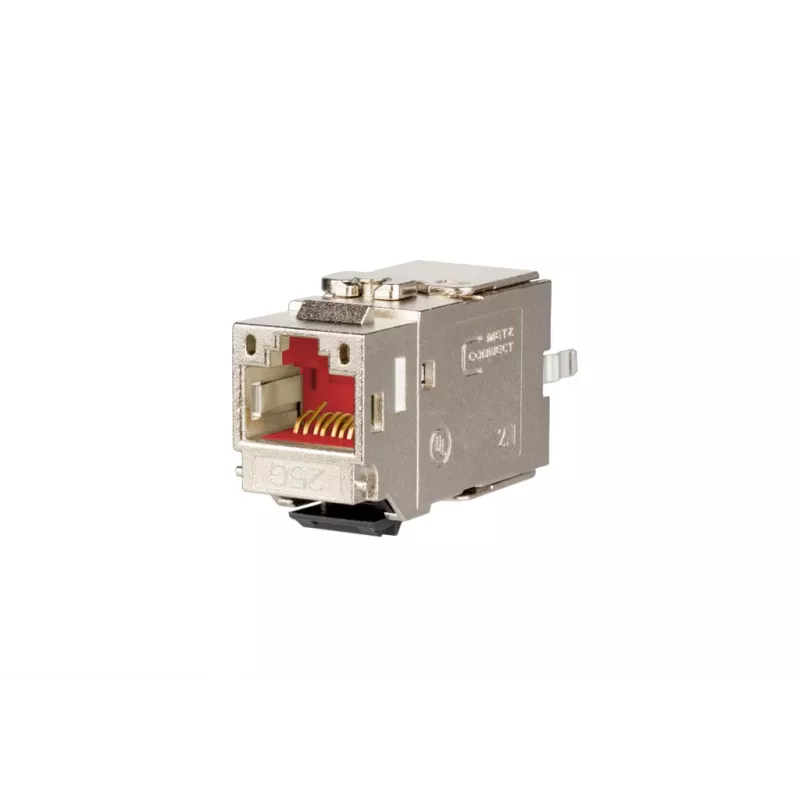

This shielded Cat.6A Keystone jack supports 25 Gigabit Ethernet (25GBASE-T) up to 500 MHz, making it ideal for high-density data center and enterprise cabling. The zinc die-cast housing provides robust shielding and durability, while the 180° cable entry allows for straight cable routing in tight spaces.

Advantages

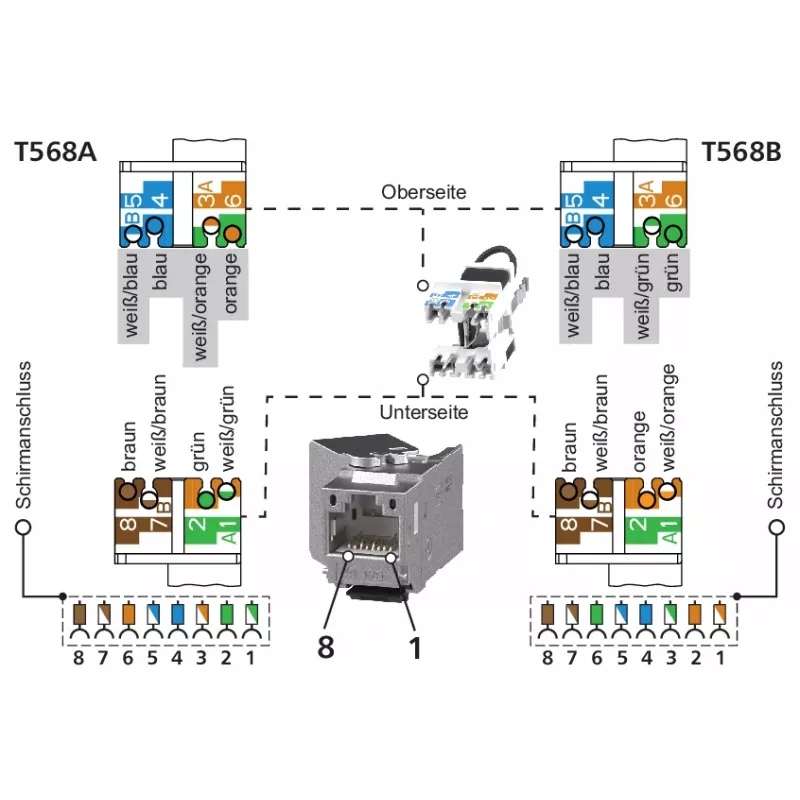

Tool-free IDC termination with color-coded T568A/T568B wiring saves installation time and reduces errors. Gold-plated contacts ensure reliable signal integrity and corrosion resistance. GHMT certification confirms compliance with ISO/IEC 11801, EN 50173, and TIA/EIA-568 standards for Class EA performance.

Suitable for

• 25GBASE-T and 10GBASE-T Ethernet networks
• High-density patch panels and wall outlets
• Shielded cabling systems requiring EMI protection
• Data centers, server rooms, and enterprise LANs

Key specifications

• Category: Cat.6A (Class EA)
• Data rate: 25 Gbps
• Frequency: up to 500 MHz
• Connector: RJ45, shielded
• Mounting: Keystone module, single
• Cable entry: 180°
• Termination: IDC, tool-free
• Wire gauge: AWG 24/1 - 22/1 solid, AWG 26/7 - 22/7 stranded
• Housing: zinc die-cast
• Contact plating: gold
• Certification: GHMT

Recommendations

Pair with Cat.6A shielded patch cables and shielded patch panels for end-to-end 25G performance. Verify bend radius and cable management for 180° entry installations.
