METZ CONNECT Cable Industrial Ethernet M12 a M12 8 polos codificado X CAT 6a S/FTP 10 m verde resistente a la torsión libre de halógenos

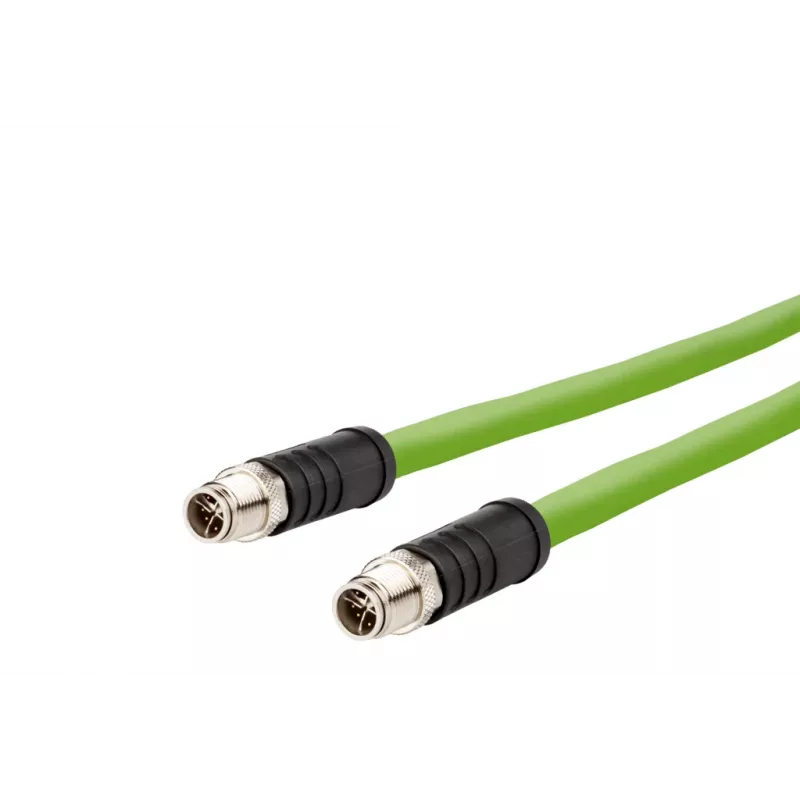

The METZ CONNECT 142M7X11100 is a high-performance industrial Ethernet cable designed for reliable data transmission in demanding environments. This 10-meter cable features M12 connectors with 8-pin X-coding on both ends, ensuring secure and robust connections for automation and networking applications. With CAT 6a performance, it supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) and a bandwidth of up to 500 MHz, making it ideal for high-speed data communication. The S/FTP shielding (Screened/Foiled Twisted Pair) provides excellent protection against electromagnetic interference, while the halogen-free, stranded conductor design ensures flexibility and safety. The cable is torsion-resistant, making it suitable for use in moving applications such as robotic arms or drag chains. Its green outer jacket with a 9.4 mm diameter offers high visibility and durability.

Advantages

This cable offers exceptional reliability and performance in industrial settings. The X-coded M12 connectors prevent mismating and ensure correct orientation, reducing installation errors. The torsion-resistant feature extends the cable's lifespan in dynamic applications. Halogen-free construction meets strict safety standards, reducing toxic gas emission in case of fire. The CAT 6a specification guarantees future-proof performance for high-bandwidth applications.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT, Ethernet/IP)
• Automation and control systems
• Robotics and moving machinery
• Data centers and server rooms
• Outdoor and harsh environment installations

Key specifications

• Product Type: Network Cable
• Cable Type: Industrial Ethernet Cable

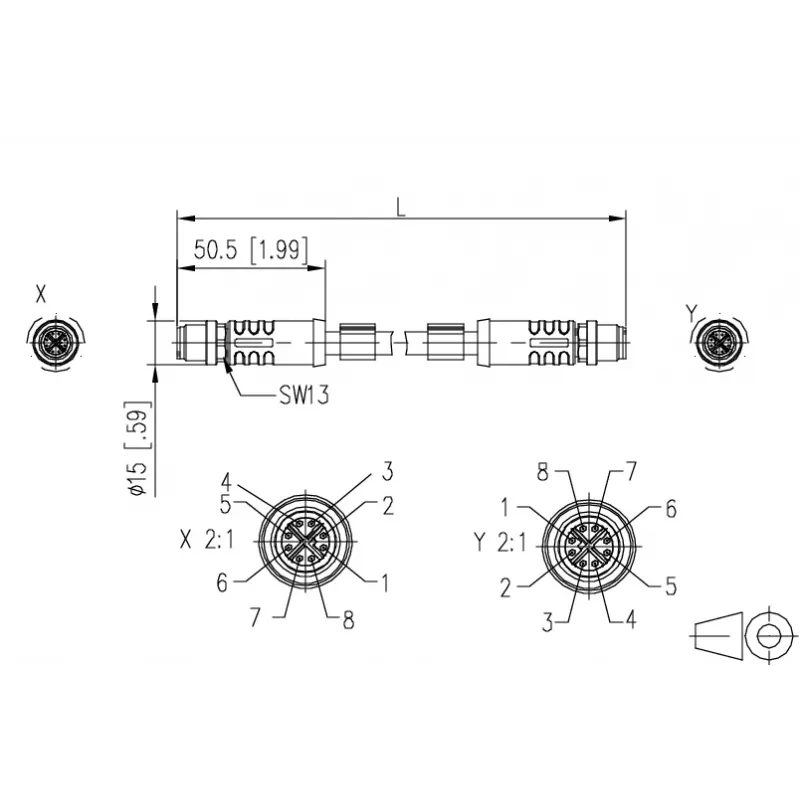

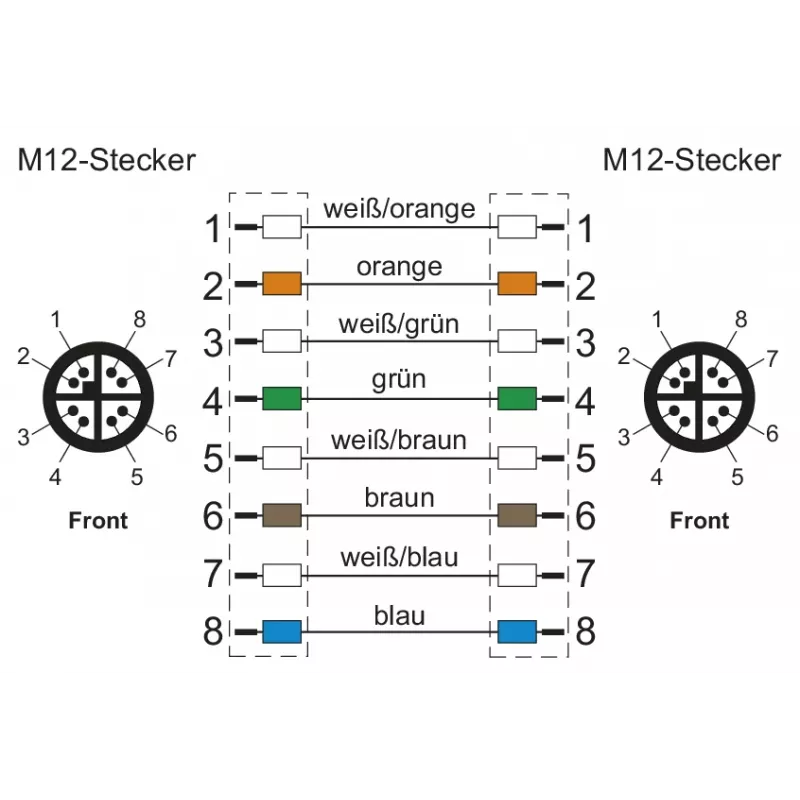

• Connector 1: M12 8-pin X-coded Straight Male
• Connector 2: M12 8-pin X-coded Straight Male
• Cable Length: 10.0 m
• Cable Category: CAT 6a

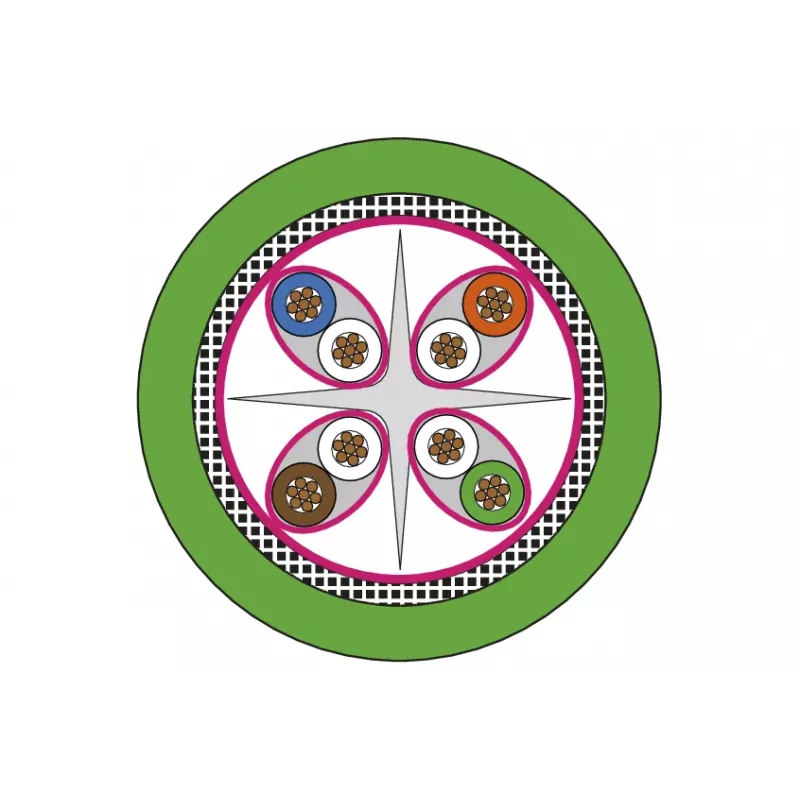

• Shielding: S/FTP
• Data Transfer Rate: Up to 10 Gbit/s
• Bandwidth: Up to 500 MHz
• Conductor Type: Stranded
• Jacket Material: Halogen-free
• Outer Diameter: 9.4 mm
• Colour: Green
• Special Features: Torsion-resistant

Recommendations

For optimal performance, ensure that both connected devices support CAT 6a standards and M12 X-coded connectors. This cable is ideal for use in industrial environments where reliability and durability are critical. Pair with compatible M12 connectors and switches for seamless integration.
