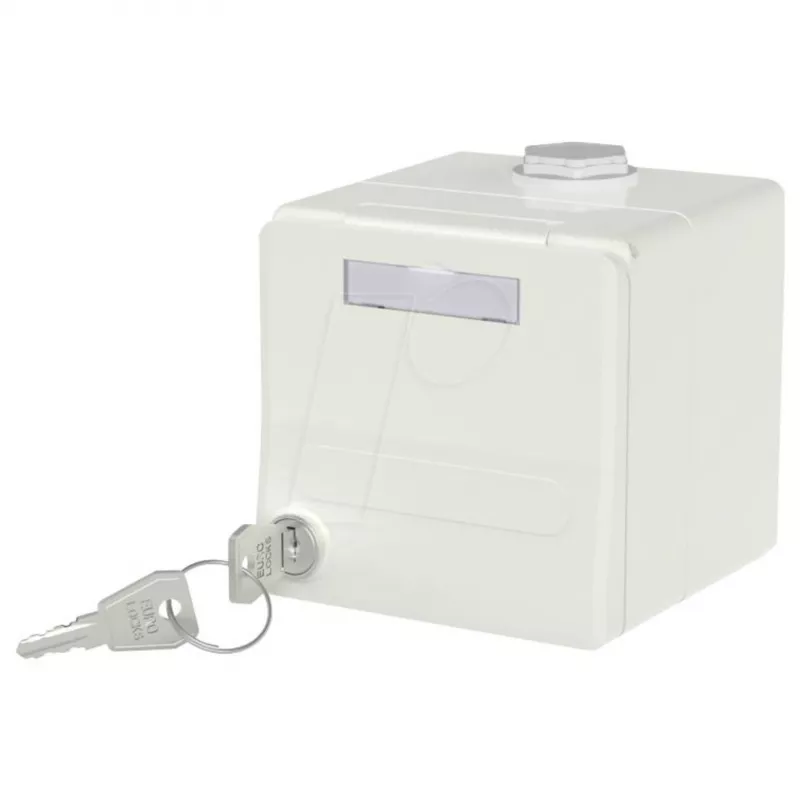

METZ CONNECT Caja de superficie para módulo IP44 con tapa abatible 1309470002-I

The METZ CONNECT IP44 Module Surface-Mount Housing with Hinged Cover (1309470002-I) is a robust and compact enclosure designed for secure installation of METZ CONNECT data modules in demanding environments. Its IP44 rating provides protection against splashing water and solid objects, making it ideal for industrial workshops, cellars, garages, and sheltered outdoor areas.

Advantages

This surface-mount housing offers a hinged cover with snap-in closure for easy access and secure module retention. The light grey (RAL 7035) thermoplastic (ABS) construction is halogen-free, UV-resistant, and features a UL94 V-0 flammability rating, ensuring long-lasting durability and safety. Multiple pre-punched cable entry points (top, bottom, rear) simplify installation, while screw fixing provides a stable mount on walls.

Suitable for

• Industrial environments requiring reliable data module protection
• Workshops, cellars, garages, and sheltered outdoor areas
• Installations where IP44 ingress protection is needed
• Single-module surface-mount applications

Key specifications

• Product Type: Surface-mount housing
• Number of Modules: 1-gang (single module)
• Ingress Protection: IP44
• Cover Type: Hinged cover with snap-in closure
• Mounting Type: Surface-mount (on-wall)
• Material: Thermoplastic (ABS)
• Colour: Light grey (RAL 7035)
• Cable Entry: Multiple pre-punched entry points (top, bottom, rear)
• Module Compatibility: Designed for METZ CONNECT data modules
• Operating Temperature Range: -20°C to +70°C
• Flammability Rating: UL94 V-0
• Halogen-free: Yes
• UV Resistance: Yes
• Installation Method: Screw fixing

Recommendations

For optimal performance, use with genuine METZ CONNECT data modules. Ensure proper cable sealing at entry points to maintain IP44 protection. Suitable for indoor and sheltered outdoor use; avoid direct exposure to heavy rain or pressure washing.
