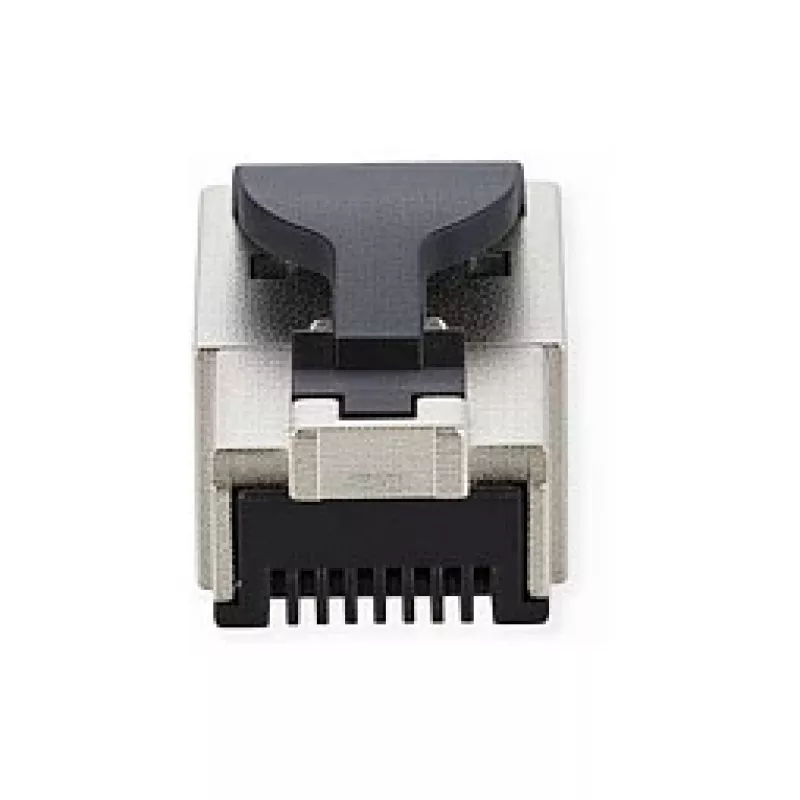

METZ CONNECT E-DAT Industry Conector macho RJ45 Cat.6A Class EA apantallado montable en campo 1401400812-E

The METZ CONNECT E-DAT Industry RJ45 Plug 1401400812-E is a high-performance, shielded field-terminable connector designed for industrial Ethernet applications. It meets Cat.6A / Class EA standards, ensuring reliable data transmission up to 500 MHz. The robust die-cast zinc housing and gold-plated contacts provide durability and excellent signal integrity in harsh environments.

Advantages

Tool-less IDC termination for quick and easy installation on solid and stranded wires (24-22 AWG). Supports Power over Ethernet (PoE, PoE+, 4PPoE) for flexible device powering. Withstands extreme temperatures from -40°C to +70°C and offers over 750 mating cycles for long-term reliability.

Suitable for

• Industrial Ethernet networks
• Data centers
• Harsh environments requiring shielded connections
• Field installation and repair

Key specifications

• Connector Type: RJ45 Plug
• Performance Category: Cat.6A (Augmented)
• Transmission Class: Class EA
• Shielding: Shielded (STP/FTP)
• Termination Type: Field Terminable (Tool-less IDC)
• Cable Compatibility: Solid and Stranded Wire
• Wire Gauge: 24-22 AWG
• Cable Diameter Range: 5.0 - 9.0 mm
• Housing Material: Die-cast zinc
• Contact Material: Phosphor bronze, gold-plated
• IP Rating: IP20 (unmated plug)
• Operating Temperature: -40°C to +70°C
• Mating Cycles: ≥ 750
• PoE Compatibility: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with Cat.6A shielded cable and ensure proper grounding. Suitable for industrial environments where reliability and ease of installation are critical.
