METZ CONNECT KRA-M6/21 Borne blanco para carril DIN de 2 polos 250V 8A 11061550

Electricians and panel builders use the METZ CONNECT KRA-M6/21 terminal block to create secure screw connections in distribution boards and control cabinets. Its compact 11.2 mm width saves space on the DIN rail, while the white polyamide housing provides clear visual identification in complex installations.

Key specifications

• Rated voltage: 250 V AC
• Rated current: 8 A
• Number of poles: 2
• Connection type: screw connection
• Conductor cross-section: 0.5 – 6 mm² (solid or stranded)
• Mounting type: DIN rail
• Housing material: polyamide (PA)
• Operating temperature: -20 to +70 °C

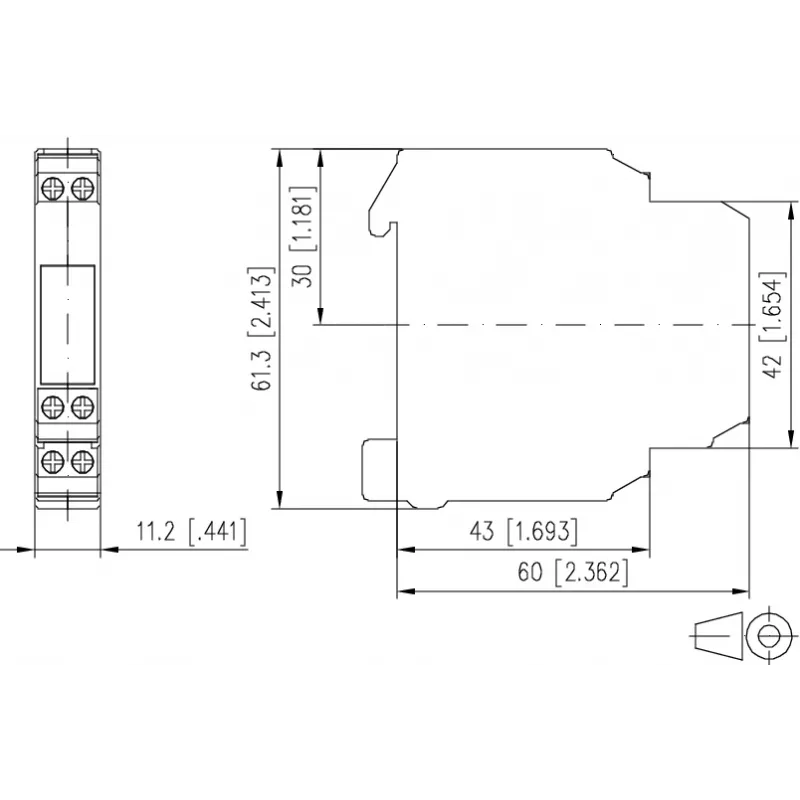

• Dimensions (W x D x H): 11.2 x 60 x 61.3 mm
• Weight: 45 g

Why choose it

The KRA-M6/21 accepts both solid and stranded conductors up to 6 mm², giving flexibility for various wiring tasks. Its screw terminals ensure a reliable, vibration-resistant connection. The white housing stands out against darker components, aiding identification and maintenance.

Ideal use cases

• Connecting power distribution circuits in industrial control panels
• Terminating field wiring in building automation systems
• Creating test points or junction points on DIN rails

Good to know

This terminal block is part of the METZ CONNECT modular range, designed for standard 35 mm DIN rails. It is suitable for use in dry indoor environments.
