METZ CONNECT M12 BU8 371 - Toma empotrable M12, 8 polos, codificación A, conector hembra, montaje posterior, pines de soldadura, IP67

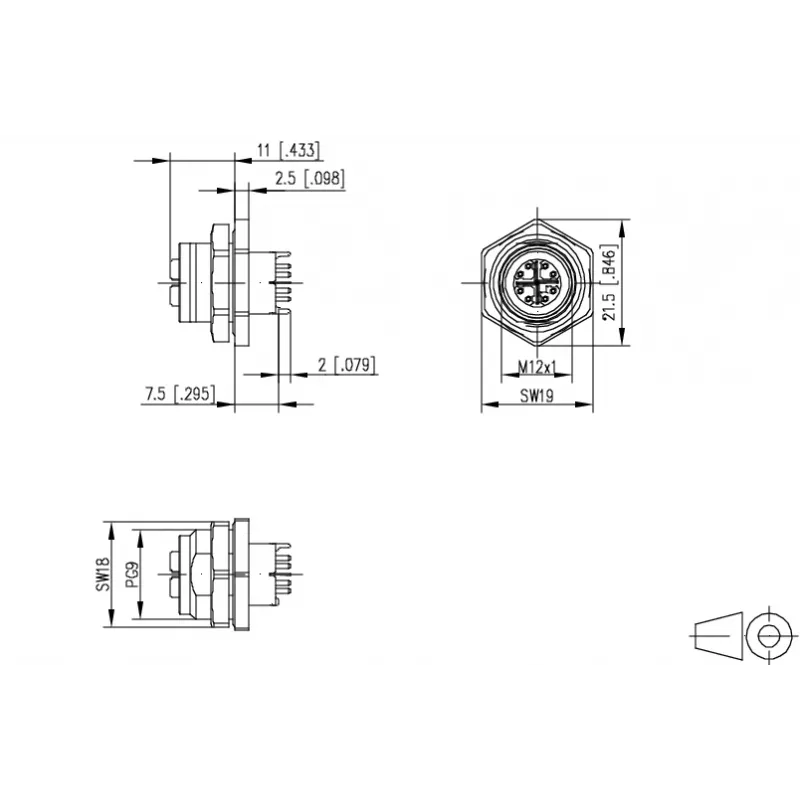

The METZ CONNECT M12 BU8 371 stands apart from typical M12 sockets by combining rear panel mounting with a compact 20.5 mm overall length, making it ideal for tight industrial enclosures. This 8-pole, A-coded female connector delivers reliable signal and data transmission in automation systems, sensors, and fieldbus applications. The nickel-plated brass housing and gold-plated contacts ensure durability and low contact resistance, while the IP67 protection (when mated) guards against dust and water ingress.

Highlights

• 8-pole M12 female socket, A-coded for standardized sensor/actuator connections
• Rear panel mount design with solder pins for secure PCB or wire termination
• Robust brass housing with nickel plating and gold-plated CuZn contacts
• IP67 rated when mated, suitable for harsh industrial environments
• Wide operating temperature range from -25 °C to +85 °C
• Complies with IEC 61076-2-101, ensuring interoperability

In daily use

Installation is straightforward: the M12 x 1 thread allows firm panel fixing, and the rear mount configuration keeps the connector profile low. Solder pins provide a reliable, vibration-resistant connection for industrial machinery. The PA insulator (UL 94 V-0) offers flame retardancy, while the high insulation resistance (>10^8 Ω) prevents signal leakage. Rated at 30 V AC/DC and 2 A per contact, this socket handles low-voltage sensor and control signals with ease.

Full specifications

• Connector type: M12 panel mount socket, female, 8-pole, A-coded

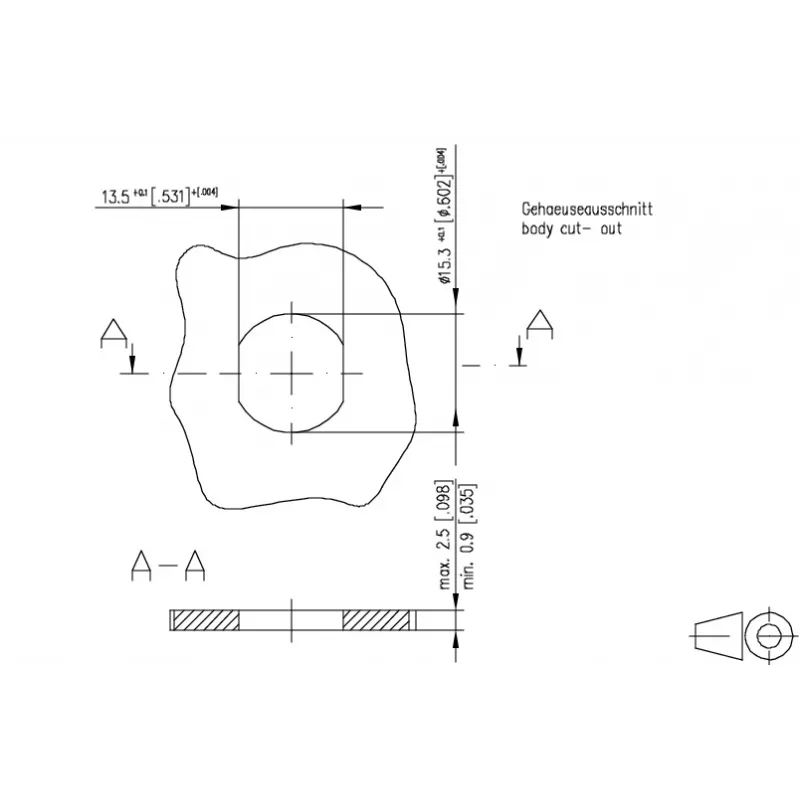

• Mounting: Rear panel mount, max panel thickness 3.5 mm
• Termination: Solder pins
• Thread size: M12 x 1
• Rated voltage: 30 V AC/DC
• Rated current: 2 A
• Contact material: CuZn (brass), gold-plated
• Housing material: Brass, nickel-plated
• Insulator material: PA (polyamide), UL 94 V-0
• Degree of protection: IP67 (when mated)
• Operating temperature: -25 °C to +85 °C
• Standard: IEC 61076-2-101
• Overall length: 20.5 mm

Final note

The METZ CONNECT M12 BU8 371 is a dependable choice for engineers seeking a compact, rear-mount M12 socket that meets stringent industrial standards without compromising on performance.
