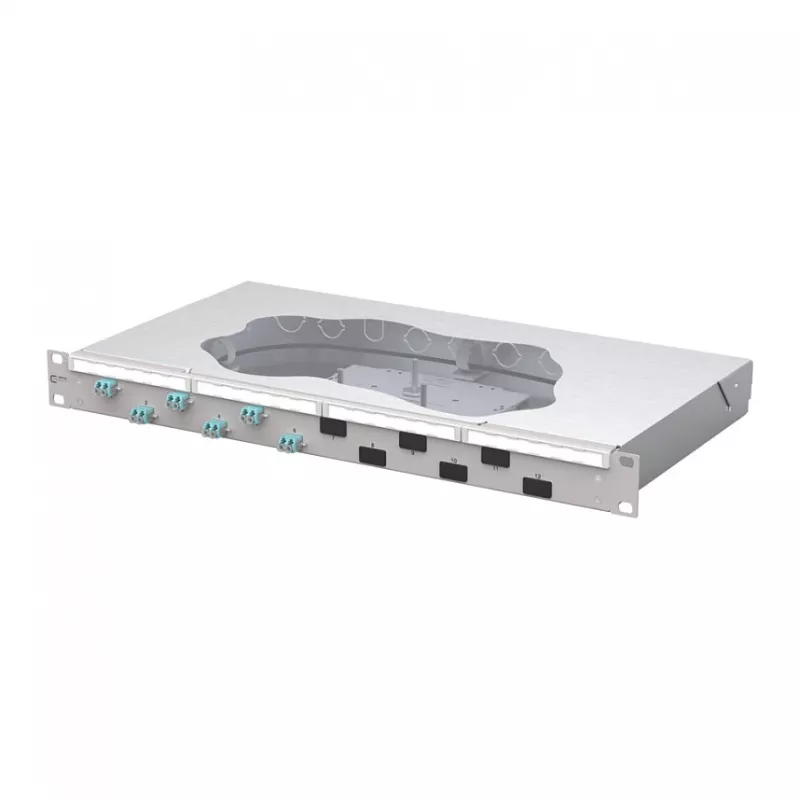

METZ CONNECT Panel de conexiones Splice 6xLC-D OM3 1504557706-F

The METZ CONNECT Patch Panel Splice 6xLC-D OM3 is a high-quality fiber optic patch panel designed for professional network installations. This 1U 19-inch rack-mount panel provides 6 LC duplex ports (12 fibers) and is pre-configured with splice cassettes for quick and reliable fiber termination. Ideal for data centers, LAN, and telecommunications applications, it ensures optimal performance for OM3 multimode fiber networks.

Advantages

Robust steel housing with powder coating ensures durability and long service life. The integrated splice cassettes simplify fiber splicing and management, reducing installation time. Cable glands (2x M20, 1x M25) provide secure cable entry and strain relief. The light grey (RAL 7035) color blends seamlessly with standard rack environments.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone
• Telecommunications infrastructure
• OM3 multimode fiber optic systems

Key specifications

• Product Type: Fiber Optic Patch Panel
• Panel Function: Splice Panel
• Connector Type: LC Duplex
• Number of Ports: 6x LC Duplex (12 fibers)
• Fiber Category: Multimode OM3
• Mounting: 19-inch Rack Mount, 1U
• Housing Material: Steel, powder-coated
• Color: Light Grey (RAL 7035)
• Included: 2 splice cassettes, 2x M20 and 1x M25 cable glands
• Protection Class: IP20
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -25 °C to +70 °C

Recommendations

For optimal performance, use with OM3 multimode fiber optic cables and LC duplex connectors. Ensure proper cable management and strain relief using the provided cable glands. Suitable for use in controlled indoor environments.
