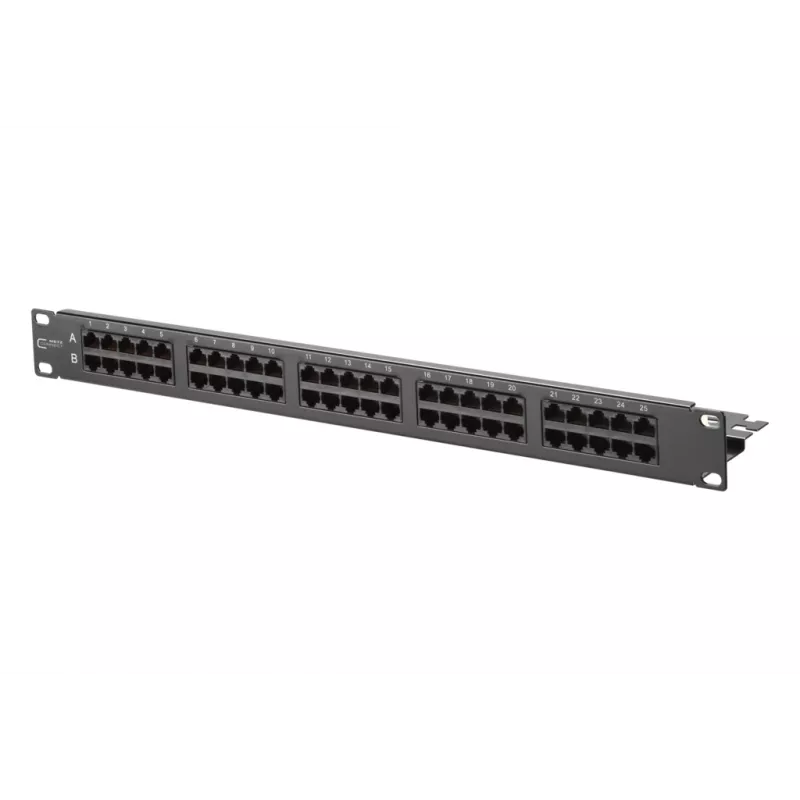

METZ CONNECT UAE 50x8(4) panel de conexiones Cat.3, ISDN, acero laminado negro, 19 pulgadas 1U

The METZ CONNECT UAE 50x8(4) Cat.3 Patch Panel is a high-quality, unshielded patch panel designed for ISDN and telephony applications. With 50 ports (8-pin, 4-wire configuration) and a compact 1U 19-inch rack-mount design, it provides reliable connectivity for voice and low-speed data networks. The robust sheet steel housing in black ensures durability and easy integration into standard server racks.

Advantages

This patch panel offers reliable performance for Category 3 cabling systems, supporting frequencies up to 16 MHz and data rates up to 10 Mbps. The LSA-Plus (IDC) termination on the rear ensures quick and secure installation, while the RJ45 front ports are compatible with 8P4C connectors. The durable phosphor bronze contacts guarantee over 750 mating cycles and 200 termination cycles, ensuring long-term reliability.

Suitable for

• ISDN and telephony networks
• Voice and low-speed data applications
• 19-inch rack installations requiring 1U height
• Cat.3 structured cabling systems

Key specifications

• Product Type: Patch Panel
• Number of Ports: 50
• Port Type: UAE (Universal Anschluss Einheit)
• Connector Type (Front): RJ45 (8P4C compatible)
• Wiring Configuration: 8-pin, 4-wire (ISDN/Telephony)
• Cabling Category: Category 3 (Cat.3)
• Mounting Standard: 19-inch Rack Mount
• Rack Units (RU): 1U
• Housing Material: Sheet Steel
• Housing Color: Black
• Shielding: Unshielded
• Termination Type (Rear): LSA-Plus (IDC)
• Application: ISDN, Telephony, Voice, Low-speed Data
• Max Frequency: 16 MHz
• Max Data Rate: 10 Mbps
• Standards Compliance: ISO/IEC 11801, EN 50173 (Cat.3)
• Contact Material: Phosphor Bronze
• Durability (IDC): >200 termination cycles
• Durability (RJ45): >750 mating cycles

Recommendations

For optimal performance, use with Cat.3 compliant cables and ensure proper termination using LSA-Plus tools. This panel is ideal for upgrading or expanding ISDN infrastructure in enterprise environments.
