Panel de parcheo EFB Elektronik VSB-FP-12SC-D-V

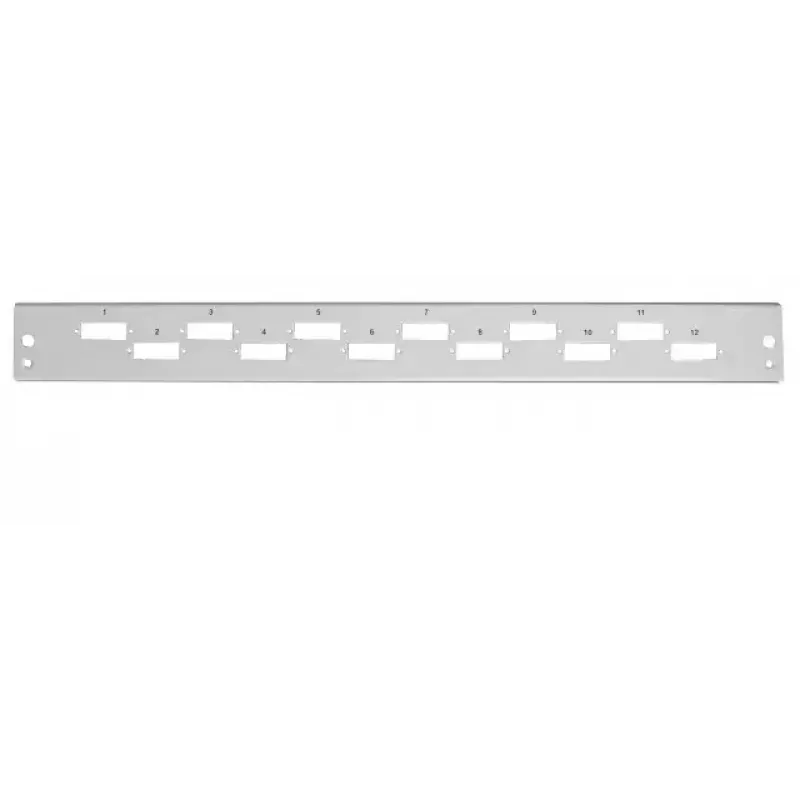

The EFB Elektronik VSB-FP-12SC-D-V is a 1U rack-mount front panel designed for splice and breakout boxes. It provides SC Duplex and LC Quad breakouts arranged horizontally shifted to simplify routing and make efficient use of space. The panel has a light grey finish and supports up to 12 connections, offering a compact and durable solution for structured fiber cabling in server rooms and telecommunications racks.

Advantages

The front panel is compatible with standard 1U splice and breakout boxes and combines SC Duplex and LC Quad breakouts on a single faceplate. Horizontal shifting of breakouts reduces cable crossing and improves access during installation and maintenance. The light grey finish provides a neutral, professional appearance and the metal construction ensures mechanical durability for rack-mounted use.

Suitable for

• Rack-mounted splice and breakout enclosures in data centers
• Telecom racks requiring mixed SC and LC connections
• Structured fiber cabling installations in server rooms

Key specifications

• Model: VSB-FP-12SC-D-V
• Brand: EFB Elektronik
• Form factor: 1U rack-mount front panel
• Breakouts: SC Duplex and LC Quad (horizontal shift)
• Connections supported: up to 12
• Color/finish: light grey
• MPN: VSB-FP-12SC-D-V
• EAN: 4049759228415

How to use

Install the front panel into a compatible 1U splice or breakout box within a standard 19-inch rack. Route fiber cables to the appropriate SC Duplex or LC Quad breakout ports, taking advantage of the horizontally shifted layout to minimize cable crossing. Secure fibers and splices according to industry best practices, then fasten the panel to the rack or enclosure using the recommended screws and mounting hardware.

Recommendations

For reliable performance, use compatible SC Duplex and LC Quad adapters and maintain proper bend-radius control when routing fibers. Perform testing after installation to verify continuity and signal quality.
