Miboxer E3-WR Controlador LED 5 en 1 RGB/RGBW/RGB+CCT Wi-Fi 2,4 GHz

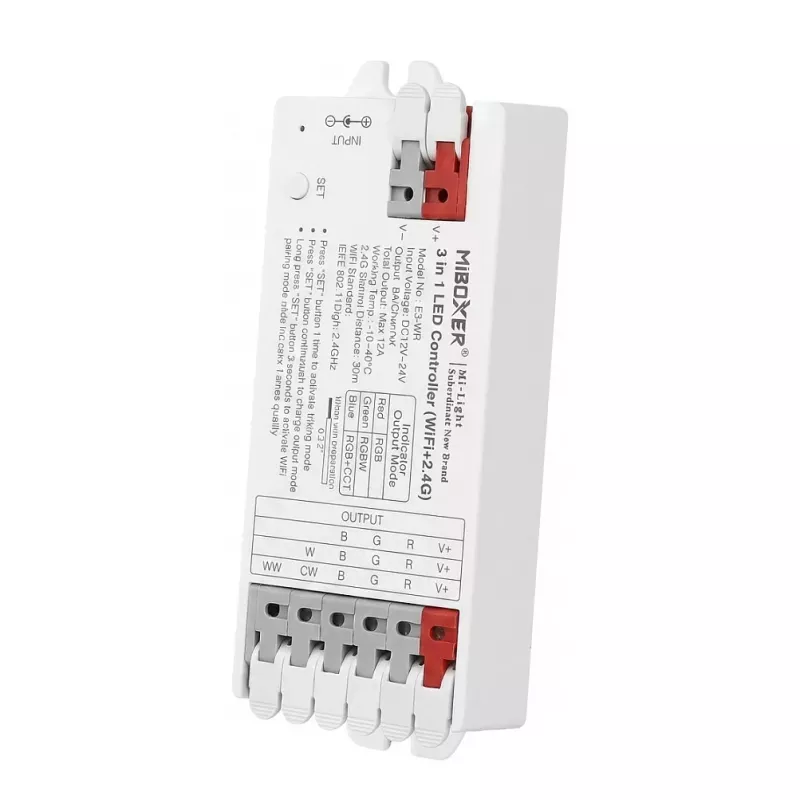

The Miboxer E3-WR is a versatile 5-in-1 LED controller that supports single color (DIM), dual white (CCT), RGB, RGBW, and RGB+CCT LED strips. It combines Wi-Fi and 2.4GHz RF control, compatible with MiBoxer and Milight systems, allowing you to manage your lighting via the MiBoxer app, remote, or voice control through a compatible gateway.

Advantages

This controller offers seamless integration with smart home systems, providing flexible control options. With support for multiple LED types, it is a universal solution for various lighting setups. The power-off memory function ensures your settings are retained, and the robust protection features guarantee safe operation.

Suitable for

• Residential and commercial LED lighting installations
• RGB, RGBW, RGB+CCT, dual white, and single color LED strips
• Smart home automation projects requiring Wi-Fi and RF control
• Users seeking compatibility with MiBoxer and Milight ecosystems

Key specifications

• Product Type: 5-in-1 LED Controller
• Supported LED Types: Single Color (DIM), Dual White (CCT), RGB, RGBW, RGB+CCT
• Wireless Connectivity: Wi-Fi (2.4GHz IEEE 802.11b/g/n)
• RF Control: 2.4GHz RF (MiBoxer/Milight compatible)
• Input Voltage: DC 12V-24V
• Output Current: Max 6A per channel, Max 10A total
• Output Power: 12V: 120W max; 24V: 240W max
• Output Channels: 5 channels (R, G, B, W, C) + Common Anode
• Control Method: MiBoxer APP (Wi-Fi), 2.4G RF Remote/Panel, Voice Control (via MiBoxer Gateway)
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• RF Control Distance: Up to 30 meters
• Protection Features: Overload protection, Short circuit protection
• Memory Function: Power-off memory
• Housing Material: ABS Plastic
• Static Power Consumption: <1W
• Compatibility: MiBoxer/Milight 2.4G RF remotes and panels
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a compatible 12V or 24V DC power supply and ensure the total load does not exceed the maximum power rating. Pair with MiBoxer or Milight 2.4G RF remotes for convenient control.
