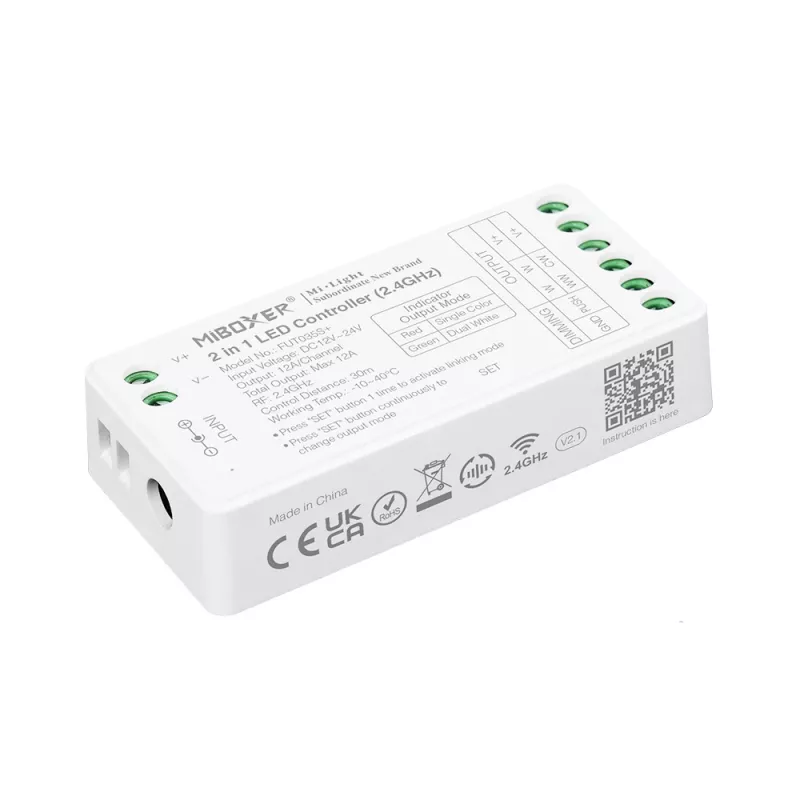

MiBoxer FUT035S+16kHz controlador LED 2 en 1 Dual White (DC12/24V, 2,4GHz, 16kHz sin parpadeo)

LED controller for dual white (CCT) and dimming control of LED strips, delivering flicker-free 16 kHz PWM dimming for smooth, stable lighting. It operates on DC 12V or 24V and communicates via 2.4 GHz RF, compatible with MiLight/MiBoxer remotes, wall panels, and WiFi gateways.

Advantages

Two output channels independently drive warm white and cool white LEDs, enabling color temperature adjustment from warm to cool. The high PWM frequency eliminates visible flicker, making it suitable for video recording and eye-sensitive environments. Memory function recalls the last setting after power off.

Suitable for

• Residential and commercial LED strip lighting
• Accent and cove lighting with tunable white
• Integration with MiLight/MiBoxer smart lighting systems

Key specifications

• Input voltage: DC 12V/24V
• Max output current: 6A per channel, 12A total
• Max output power: 144W at 12V, 288W at 24V
• Wireless protocol: MiLight/MiBoxer 2.4GHz RF
• PWM frequency: 16 kHz
• Dimming range: 0-100%
• Operating temperature: -20°C to 60°C
• Protection: overload, short circuit, overheating
• Housing material: ABS plastic

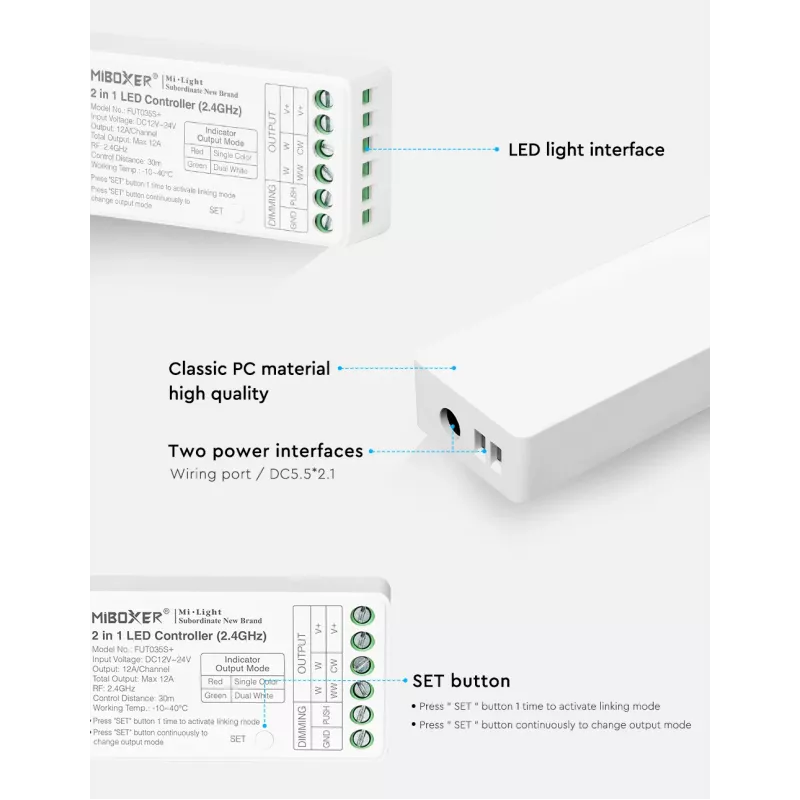

• Connection: screw terminals

Recommendations

Pair with a MiBoxer 2.4GHz remote or WiFi gateway for full smart control. Ensure power supply capacity matches the total LED load.
