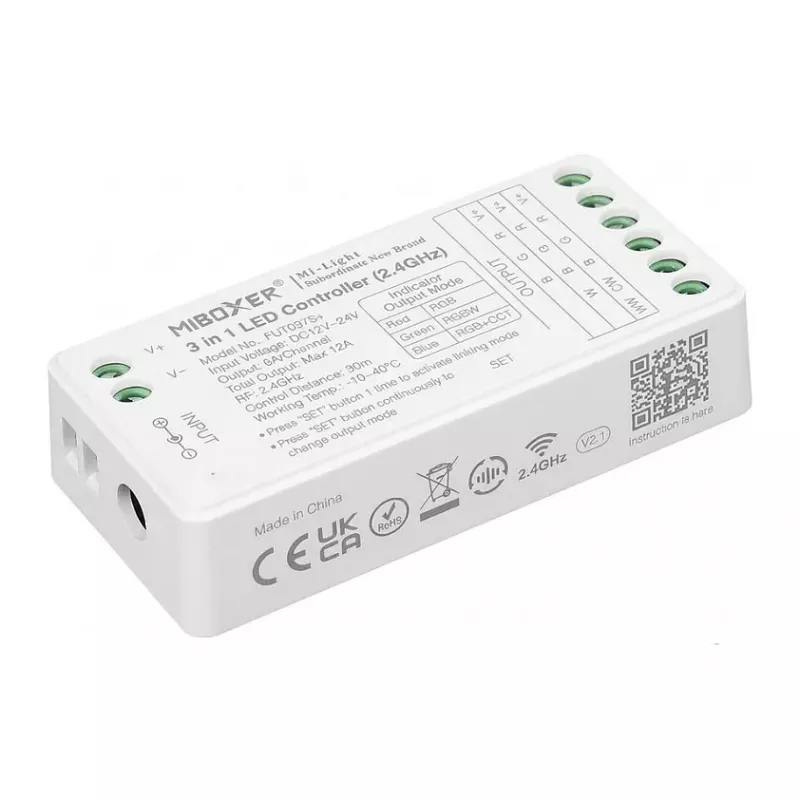

MIBOXER FUT037S+ LED Controlador S-Series 3en1 (RGB/RGB-W/RGB+CCT) DC12/24V

The MIBOXER FUT037S+ is a versatile 3-in-1 LED controller designed for RGB, RGBW, and RGB+CCT LED strips. Operating on DC 12V or 24V, it supports up to 5 output channels (R, G, B, W, CCT) with a maximum total output current of 10A. This controller is compatible with MiBoxer/Mi-Light 2.4GHz RF remotes and gateways, offering wireless control up to 30 meters. Ideal for residential and commercial lighting projects, it features memory function, overload and short circuit protection, and a compact ABS housing with screw terminals for easy installation.

Advantages

This controller provides seamless integration with existing MiBoxer ecosystems, allowing for color, saturation, brightness, and CCT adjustments. Its 3-in-1 compatibility reduces inventory complexity, while the robust protection features ensure long-lasting performance. The memory function recalls the last setting, enhancing user convenience.

Suitable for

• RGB, RGBW, and RGB+CCT LED strip installations
• Smart home lighting systems using MiBoxer/Mi-Light 2.4GHz remotes or gateways
• Commercial accent lighting, retail displays, and architectural lighting
• DIY projects requiring flexible color and temperature control

Key specifications

• Product Type: LED Controller
• Supported LED Types: RGB, RGBW, RGB+CCT (3-in-1)
• Input Voltage: DC 12V / 24V
• Output Channels: 5 (R, G, B, W, CCT)
• Max Output Current per Channel: 6A
• Max Total Output Current: 10A
• Max Output Power: 120W (12V) / 240W (24V)
• Wireless Protocol: MiBoxer 2.4GHz RF
• Control Distance: Up to 30 meters
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Connection: Screw Terminals
• Memory Function: Yes
• Housing Material: ABS Plastic
• Compatibility: MiBoxer/Mi-Light 2.4GHz remotes & gateways (e.g., WL-Box1)
• Protection: Overload, Short Circuit
• Mounting: Surface Mount
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with a compatible MiBoxer 2.4GHz remote or gateway. Ensure the power supply matches the LED strip voltage (12V or 24V) and does not exceed the controller's maximum power rating. Suitable for indoor use only.
