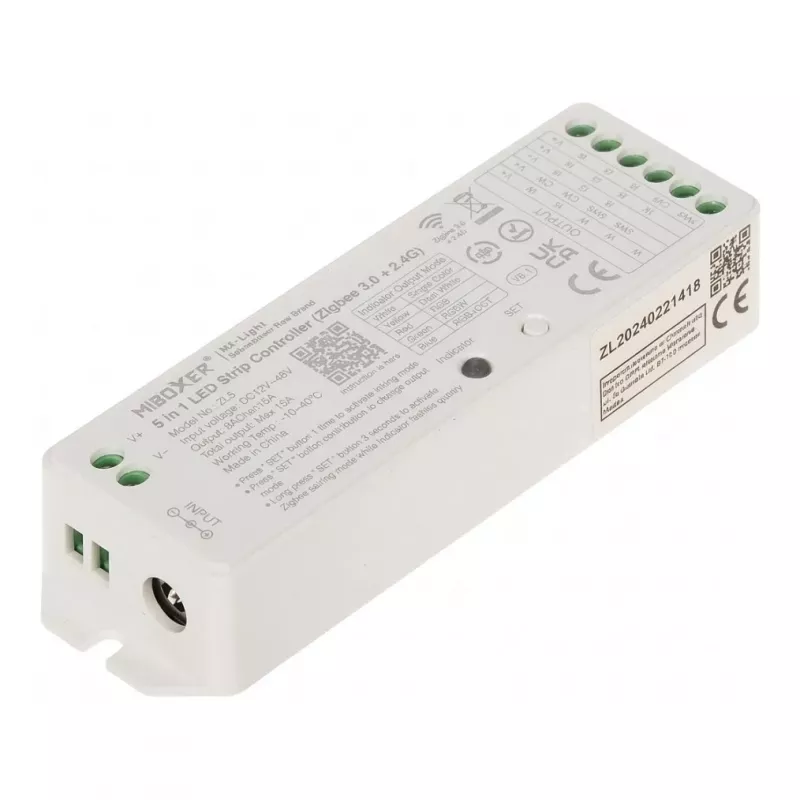

MIBOXER ZL5 LED Controlador serie Classic 5en1 RGB-WW (RGB-CCT) DC12-48V Zigbee 3.0/2.4G Milight/Miboxer

Introducing the MIBOXER ZL5 LED Controller from the Classic Series, a versatile 5-in-1 solution for RGB-WW (RGB-CCT) LED strips. This controller supports both Zigbee 3.0 and 2.4GHz RF protocols, making it compatible with a wide range of smart home systems including Philips Hue, SmartThings, Amazon Echo, and MiBoxer/Milight remotes. With an input voltage range of DC 12-48V and a maximum output power of 480W, it is suitable for various LED lighting projects.

Advantages

This controller offers seamless integration with popular smart home ecosystems, allowing for voice control and automation. The 5-in-1 mode supports single color, CCT, RGB, RGBW, and RGB+CCT, providing flexibility for different lighting needs. The robust protection features ensure long-lasting performance.

Suitable for

• Smart home lighting systems
• Commercial and residential LED installations
• DIY LED projects requiring multi-zone control
• Integration with Zigbee and 2.4GHz RF gateways

Key specifications

• Product Type: LED Controller
• Control Modes: 5-in-1 (Single Color, CCT, RGB, RGBW, RGB+CCT)
• Input Voltage: DC 12-48V
• Output Type: Constant Voltage
• Output Current per Channel: 6A
• Maximum Total Output Current: 10A
• Maximum Output Power: 480W (at 48V)
• Wireless Protocol 1: Zigbee 3.0
• Wireless Protocol 2: 2.4GHz RF (MiBoxer/Milight compatible)
• Number of Channels: 5 (R, G, B, CW, WW)
• Compatibility: Zigbee Gateways (e.g., Philips Hue, SmartThings, Amazon Echo), MiBoxer/Milight RF Remotes/Gateways
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Protection Features: Overload Protection, Short Circuit Protection, Reverse Polarity Protection
• Housing Material: ABS Plastic
• Control Distance (RF): Up to 30m
• Standby Power Consumption: <1W

Recommendations

For optimal performance, use with a compatible Zigbee gateway or MiBoxer/Milight RF remote. Ensure the power supply matches the voltage and current requirements of your LED strip.
