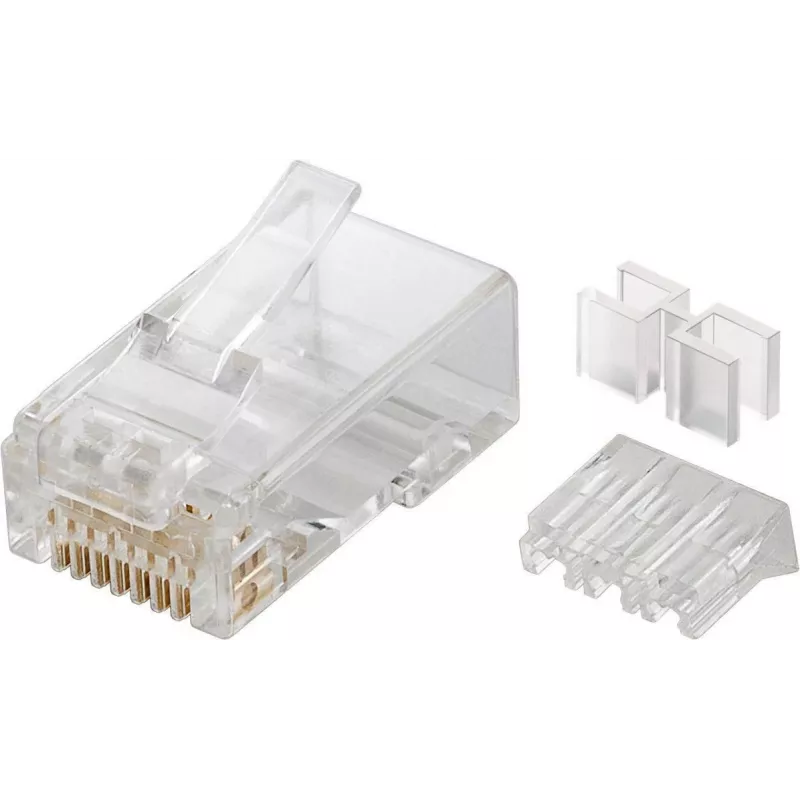

Microconnect KON505-10 conector RJ45 translúcido

The Microconnect KON505-10 is a translucent RJ45 wire connector designed for Cat6 cables. Compact and lightweight, this connector supports reliable data transmission in structured cabling environments and small-scale network installations. Its clear housing allows visual inspection of conductor alignment and termination quality, helping installers confirm correct wiring before deployment.

Advantages

The translucent housing enables quick visual verification of pair order and conductor insertion depth, reducing termination errors. Its RJ45 format is compatible with Cat6 cable conductors and maintains reliable electrical contact for Ethernet signals. The small physical size and low weight make the connector convenient to carry and use on-site, while the robust contact points ensure stable connections under normal operating conditions.

Suitable for

• Termination of Cat6 stranded or solid network cables in patch panels and patch leads
• On-site network installations and repairs where quick visual inspection is beneficial
• Small office and home networking projects requiring compact RJ45 connectors

Key specifications

• Connector type: RJ45
• Compatible cable category: Cat6
• Product colour: Translucent
• Weight: 0.01 kg
• Package dimensions: 72 mm x 67 mm x 34 mm

How to use

Prepare the Cat6 cable by stripping the outer jacket to expose the twisted pairs, untwist them to the required length and align the conductors according to the chosen wiring standard (T568A or T568B). Insert the conductors fully into the RJ45 connector so each wire reaches its contact slot; the translucent housing allows confirmation that each conductor is seated correctly. Use an appropriate crimping tool or termination method recommended for RJ45 Cat6 terminations to secure the contacts and finalize the connection. After crimping, inspect the termination visually and, if available, verify with a network tester to confirm continuity and correct pair configuration.

Recommendations

For best results, use suitable Cat6 connectors and a compatible crimping tool designed for RJ45 terminations. Avoid excessive bending or strain on the cable immediately after termination and perform a continuity and performance test to ensure proper data transmission.
