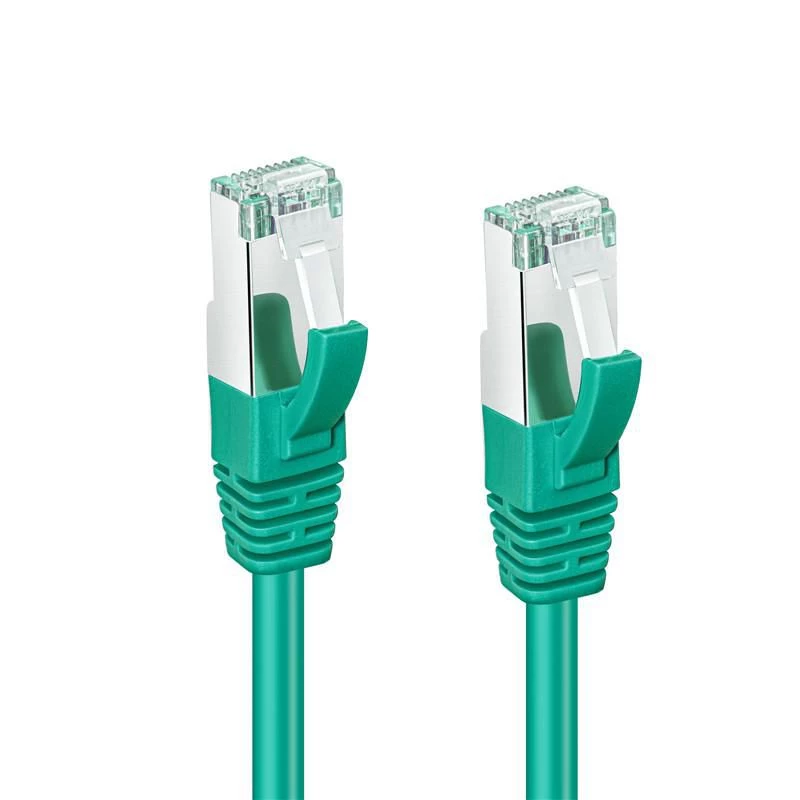

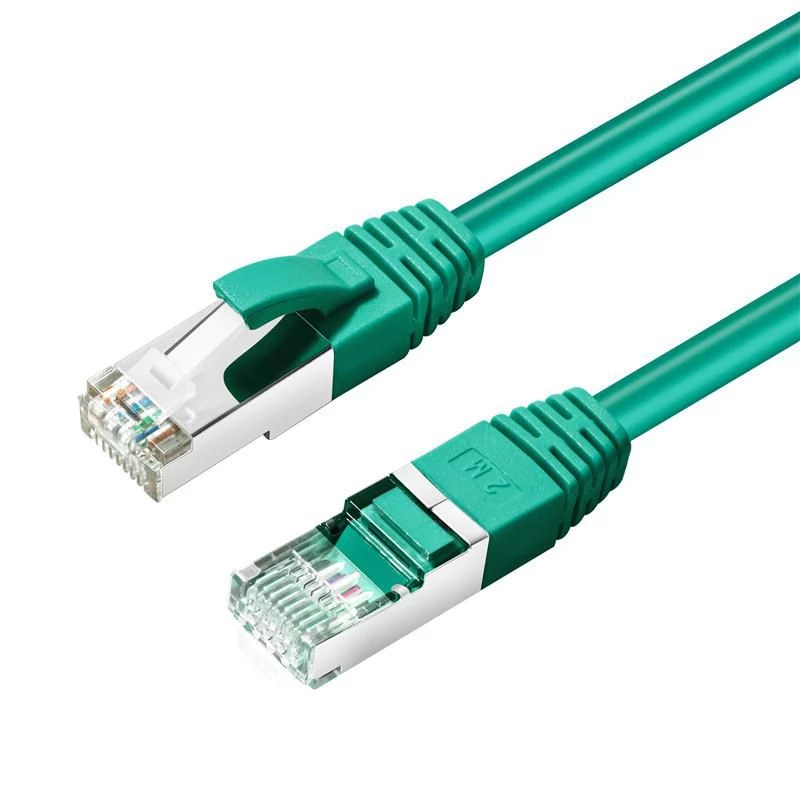

Microconnect MC-SFTP6A20G Cable de red verde 20 m Cat6a S/FTP (S-STP)

The MicroConnect MC-SFTP6A20G is a 20 m Cat6a S/FTP patch cable designed for networks that require 10 Gbit/s performance and wide-bandwidth transmission. It uses gold-plated 50 µ" RJ-45 connectors and S/FTP shielding to maintain stable data transfer up to 10000 Mbit/s and support frequencies up to 500 MHz. The cable is green and includes meter markings on the boot and a latch protector to reduce the risk of clip damage.

Advantages

This Cat6a S/FTP cable provides 10 Gbit/s throughput and shielding to limit crosstalk and external interference. Gold-plated 50 µ" RJ-45 connectors improve contact reliability and durability. Meter markings on the boot make it easy to identify cable length during installation, and the latch protection reduces the chance of connector damage when plugging and unplugging.

Suitable for

• Server rooms and data centers requiring 10G connectivity
• Office LANs with high bandwidth demands
• Audio/video streaming and media distribution over Ethernet
• Structured cabling installations where Cat6a specification is required

Key specifications

• Product: Microconnect MC-SFTP6A20G
• Standard: Cat6a (S/FTP)
• Length: 20 m
• Maximum data rate: up to 10000 Mbit/s (10 Gbit/s)
• Frequency: up to 500 MHz
• Connectors: RJ-45 — gold-plated, 50 µ" plating
• Colour: Green
• Weight: 0.516 kg

How to use

Connect one RJ-45 connector to the network device (switch, router, or NIC) and the other connector to the corresponding port on the target device. Ensure the latch clicks into place to confirm the connection. Use the meter markings on the boot to verify cable length during installation and route the cable to avoid sharp bends or stress that could degrade performance.

Recommendations

For optimal performance, keep the cable away from strong electrical noise sources and avoid excessive bending or crushing. Use appropriate cable management in racks and conduits, and verify link speed and stability after installation using network testing tools.
