Microconnect PP-013 panel de parcheo 1U

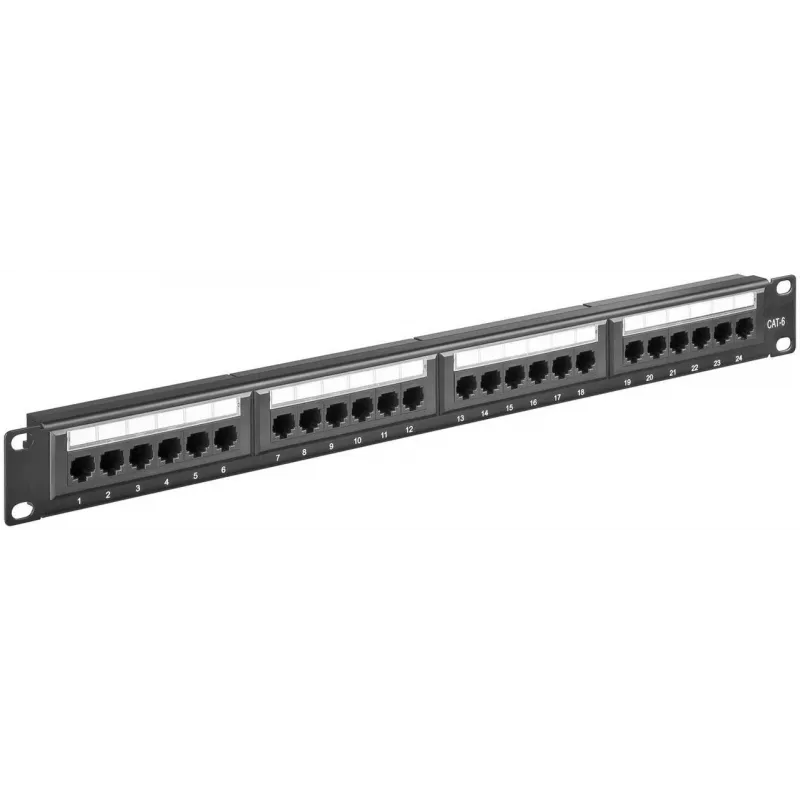

The Microconnect PP-013 is a 1U rack-mounted patch panel in black, designed for 19-inch installation and equipped with 24 RJ-45 ports that support Cat6 cabling. It features unshielded LSA terminals and offers compact dimensions and low weight for straightforward integration into standard network racks.

Advantages

The panel provides 24 easily accessible RJ-45 ports in a single 1U module, allowing tidy cable termination and management. Its unshielded LSA terminals simplify punching down Cat6 cables without additional shielding requirements. The black finish and standard 19-inch form factor ensure compatibility with common rack setups while keeping a low physical footprint and weight.

Suitable for

• Small and medium enterprise network racks
• Server rooms and telecommunications cabinets
• Structured cabling installations using Cat6 UTP cable
• Home lab or professional networking patch fields

Key specifications

• Brand: MicroConnect
• Model: PP-013
• Ports quantity: 24 RJ-45
• Cable standard: Cat6 (unshielded)
• Terminal type: LSA (unshielded)
• Rack unit: 1U, 19-inch compatible
• Colour: Black
• Weight: 0.5 kg
• Package dimensions (W×D×H): 100 × 520 × 70 mm
• MPN: PP-013
• EAN: 5711045540370

How to use

Mount the Microconnect PP-013 into a standard 19-inch rack occupying one rack unit. Route Cat6 UTP cables to each RJ-45 outlet and terminate them on the unshielded LSA terminals following the T568A or T568B wiring scheme as required. Secure cables with tie wraps or management panels to maintain order and reduce strain on terminations. After termination, verify connectivity with a cable tester before placing the panel into regular service.

Recommendations

Use Cat6 unshielded twisted-pair (UTP) cables for optimal performance with this panel and avoid introducing mixed shielding types. Keep cable lengths and bend radii within standard limits and perform continuity and pair-mapping tests after installation to ensure reliable network operation.
