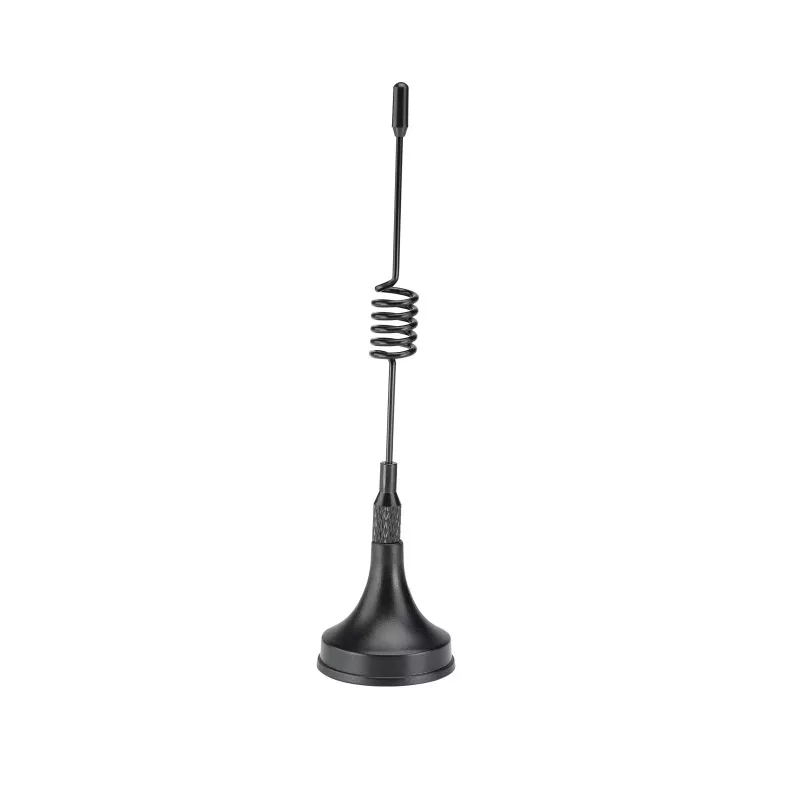

Midland Albrecht Minimag 440 antena de base magnética BNC, 430-450 MHz, conector BNC, 2,15 dBi, cable de 3m 65750

For radio operators needing a compact and reliable antenna for their UHF handheld transceiver, the Midland Albrecht Minimag 440 BNC offers a practical magnetic mount solution. Simply attach it to any suitable metal surface and connect it to your radio's BNC port for immediate improved signal reception.

Key specifications

• Frequency range: 430-450 MHz
• Antenna type: Magnetic mount

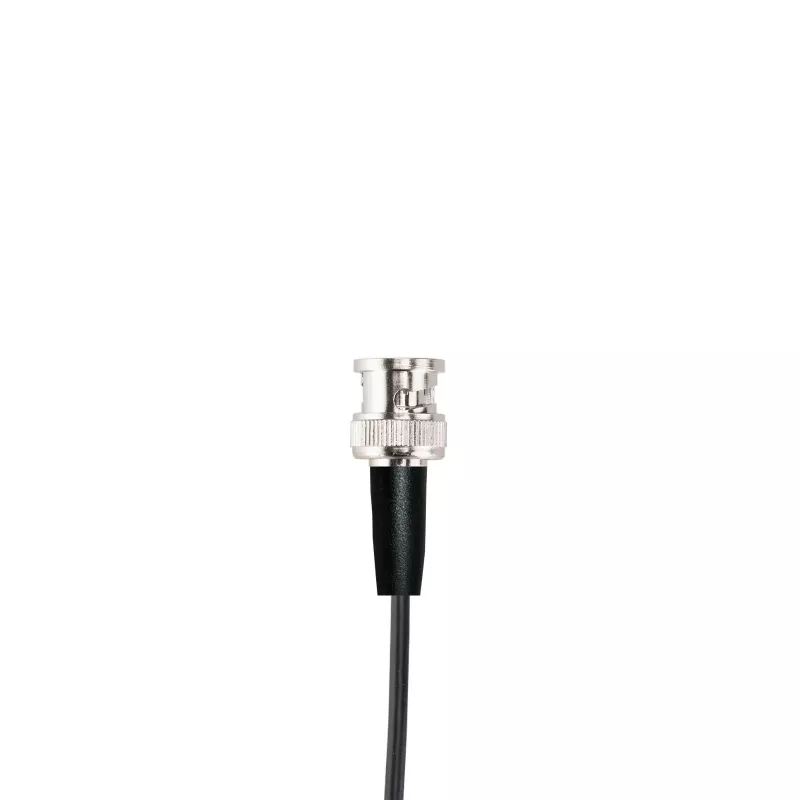

• Connector: BNC male
• Gain: 2.15 dBi
• Impedance: 50 Ohm
• Maximum power input: 10 W
• VSWR: < 1.5:1
• Polarization: Vertical
• Radiator design: 1/4 wave
• Cable type: RG-174
• Cable length: 3 m
• Radiator height: 22 cm
• Magnetic base diameter: 29 mm
• Radiator material: Stainless steel
• Base colour: Black
• Supported radio bands: UHF (70 cm)

Why choose it

This antenna is engineered for the 70 cm amateur band and compatible with any radio featuring a BNC antenna connector. Its magnetic base allows for quick placement on vehicles, metal shelves, or other ferromagnetic surfaces without permanent installation. The stainless steel radiator ensures durability, while the 3-meter RG-174 cable provides flexibility in positioning.

Ideal use cases

• Mobile operation from a vehicle with a metal roof or trunk
• Temporary base station setups indoors or outdoors
• Field days and portable operations
• Enhancing reception for handheld UHF transceivers

Good to know

The antenna is designed for vertical polarization and can handle up to 10 watts of transmit power. Its compact size and lightweight design make it easy to carry in a radio bag. The BNC connector ensures a secure and quick connection to your radio.
