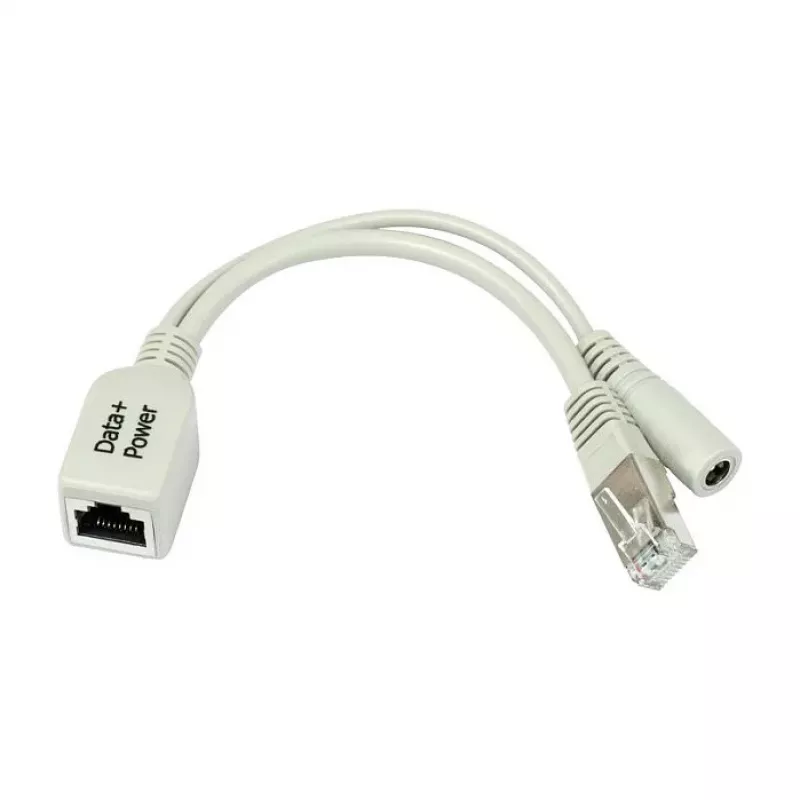

MikroTik RBPOE Inyector PoE pasivo 10/100 Mbps

The MikroTik RBPOE is a reliable and cost-effective passive Power over Ethernet (PoE) injector designed to power MikroTik RouterBOARDs and other compatible passive PoE devices. It delivers data and power over a single Ethernet cable, simplifying installation and reducing cable clutter.

Advantages

This PoE injector supports a wide input voltage range of 10-28V DC, making it versatile for various power sources. With a maximum output current of 1A and power output of 24W, it can handle a range of low-power devices. The compact plastic enclosure allows for desktop or wall mounting, and the unit operates reliably in temperatures from -30°C to +65°C.

Suitable for

• MikroTik RouterBOARDs and other passive PoE devices
• Networking setups requiring remote power delivery
• Indoor and outdoor installations (within temperature range)

Key specifications

• PoE Type: Passive PoE
• Data Rate: 10/100 Mbps
• Input Voltage: 10-28V DC
• Output Voltage: Matches input (passive)
• Max Output Current: 1A
• Max Power Output: 24W
• Ethernet Ports: 2 (Data In, Data+Power Out)
• PoE Power Pins: 4,5 (+) / 7,8 (-)
• DC Jack Size: 2.1mm
• Operating Temperature: -30°C to +65°C
• Enclosure: Plastic
• Mounting: Desktop / Wall mountable

Recommendations

For optimal performance, use with MikroTik RouterBOARDs that support passive PoE. Ensure the power source provides the required voltage within the specified range. This injector is ideal for extending network reach without needing a separate power outlet at the device location.
