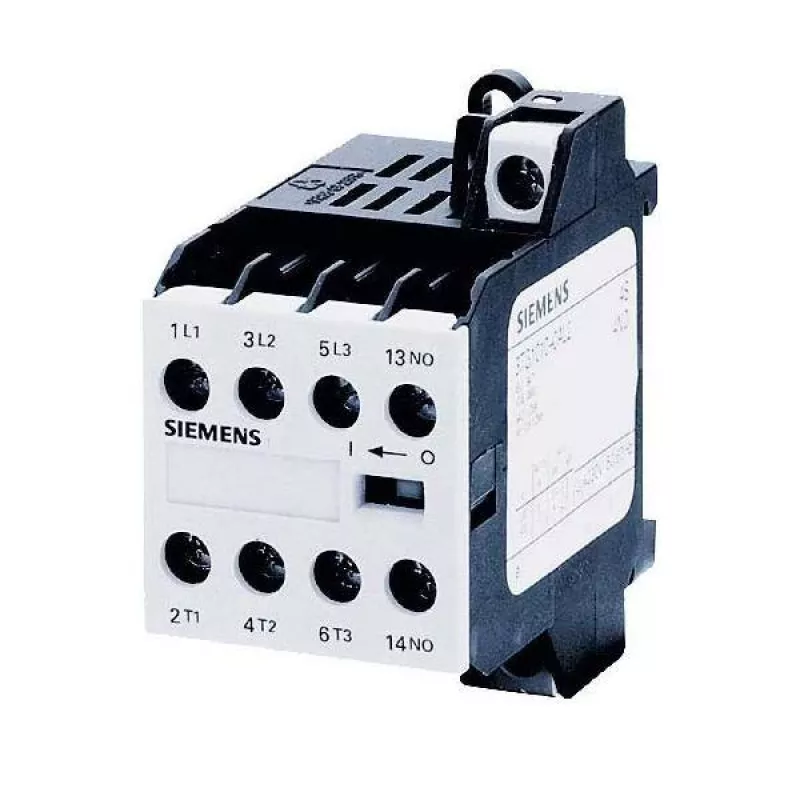

Minicontactor Siemens SIRIUS 3TG10 3TG1010-0AC2, 3 polos, bobina 24 V AC, 3 A AC-3, 1 contacto auxiliar NA

The Siemens 3TG1010-0AC2 is a compact mini contactor from the SIRIUS 3TG10 series, engineered for reliable switching of small motors and resistive loads in industrial control panels. Its 24 V AC coil and 3 A AC-3 rating make it suitable for applications where space is limited but performance cannot be compromised.

Highlights

• 3 main poles with 1 NO auxiliary contact for control feedback
• Rated operational current of 3 A at AC-3 (400 V) for motor switching
• Wide coil frequency range of 45 to 450 Hz for flexible supply conditions
• DIN rail or screw mounting for easy installation
• High mechanical endurance of 30 million operating cycles

In daily use

This contactor is designed for switching three-phase motors up to 0.75 kW at 400 V AC-3, as well as resistive loads up to 6 A at AC-1. The screw terminals accept solid or stranded conductors, and the IP20 protection class on terminals ensures safe handling in enclosed panels. With an operating temperature range of -25 to +60 °C, it performs reliably in demanding environments.

Full specifications

• Product type: Mini contactor
• Series: SIRIUS 3TG10
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 24 V AC
• Coil frequency: 45...450 Hz
• Rated operational current (AC-3, 400 V): 3 A
• Rated operational power (AC-3, 400 V): 0.75 kW
• Rated operational current (AC-1, 400 V): 6 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN rail 35 mm / screw mounting
• Terminal type: Screw terminals
• Electrical endurance (AC-3): 10 million operating cycles
• Mechanical endurance: 30 million operating cycles
• Operating temperature range: -25 to +60 °C
• Protection class (terminals): IP20

Final note

The 3TG1010-0AC2 combines proven Siemens switching technology with a space-saving design, making it a solid choice for machine builders and panel shops.
