Módulo D-Type DeLOCK HDMI-A conector hembra a conector hembra IP67 impermeable

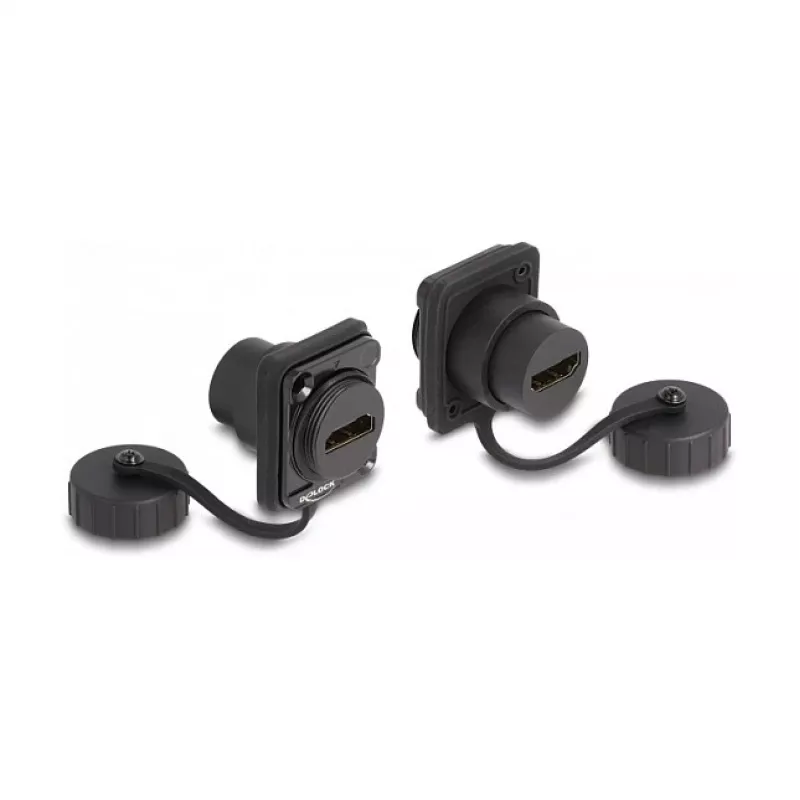

The DeLOCK D-Type Module HDMI-A female to HDMI-A female IP67 waterproof is a compact panel-mount coupler designed for installation in D-type openings of panels or cases to connect HDMI devices. With HDMI-A female connectors on both sides and an IP67 rating, the module protects the HDMI connection from dust and moisture while keeping a small footprint (31 x 30 x 26 mm).

Advantages

The module provides a sealed HDMI-A female to HDMI-A female interface suitable for environments where increased protection against dirt and water is required. Its IP67 rating ensures reliable performance in outdoor or harsh conditions, and the compact D-type form factor enables easy integration into existing panels or enclosures without significant space demand.

Suitable for

• Connecting HDMI-equipped devices through panels or racks
• Outdoor installations where moisture or dust exposure is possible
• Professional AV systems requiring sealed panel-mounted HDMI connections

Key specifications

• Connector 1: HDMI-A female
• Connector 2: HDMI-A female
• Ingress protection: IP67 (dust-tight and protected against temporary immersion)
• Dimensions: 31 x 30 x 26 mm
• Product colour: Black
• Brand: DELOCK, MPN: 86972, EAN: 4043619869725

How to use

Mount the module into a compatible D-type opening in a panel or case and secure it according to the enclosure's mounting method. Connect standard HDMI-A cables to each side of the module to create a sealed pass-through for HDMI signals. Ensure the mating HDMI connectors are clean and fully engaged to maintain the IP67 seal.

Recommendations

For sustained IP67 protection, install the module in properly sealed panels and avoid exposing unmated connectors to persistent submersion. Check cable and connector condition regularly and tighten panel fittings as required to preserve ingress protection.
