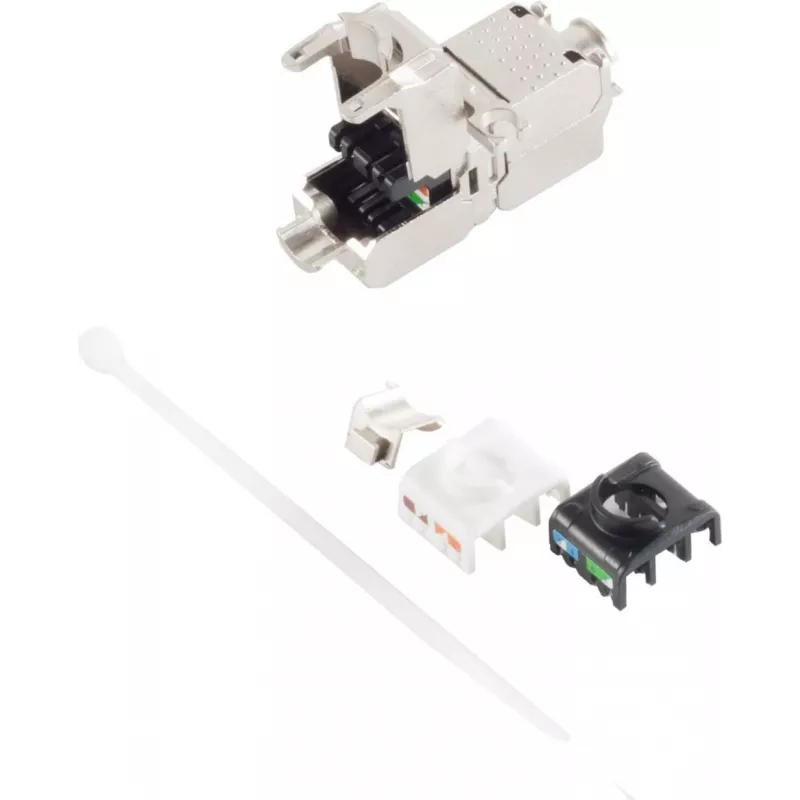

Módulo Keystone Cat 6a helos 08-10002 conector sin herramientas, inserto Keystone RJ45 para instalaciones Cat6a apantalladas/no apantalladas

Keystone module Cat 6a helos 08-10002 toolless connector is a compact RJ45 keystone insert designed for Cat6a cabling. The module fits standard keystone openings in wall plates, patch panels and surface-mount boxes and enables fast, toolless terminations for shielded or unshielded Cat6a cables. Engineered to support high-speed 10 Gigabit Ethernet, it offers a straightforward way to create reliable network connections in office, data center and residential installations while keeping a low profile in structured cabling systems.

Advantages

This toolless keystone connector allows quick terminations without punch-down tools or special crimping equipment, reducing installation time and simplifying maintenance. The design supports both shielded and unshielded Cat6a cables and maintains Category 6a performance parameters suitable for 10GBASE-T links. Its standardized keystone format ensures compatibility with a wide range of modular faceplates and patch panels, providing a neat, serviceable network termination point.

Suitable for

• 10 Gigabit Ethernet Cat6a horizontal cabling in offices and data centers
• Modular wall plates and patch panels requiring keystone-format inserts
• Quick field terminations where tools are limited or rapid deployment is needed
• Residential and small-business networks upgrading to higher bandwidth

Key specifications

• Connector type: RJ45 keystone insert in standard keystone format
• Cable category: Category 6a (Cat6a) compatible, shielded and unshielded
• Data rates: Supports 10 Gigabit Ethernet over Cat6a cabling
• Termination method: Toolless, quick-insertion design for conductors
• Compatibility: Fits standard keystone wall plates, patch panels and modules
• Form factor: Compact low-profile keystone insert for modular installations

How to use

Prepare the Cat6a cable by stripping the outer jacket to the recommended length and untwisting pairs only as much as needed for insertion. Follow the coloured pair alignment indicated on the keystone module, insert each conductor into the designated slot and press until the module’s internal mechanism secures the wires. Snap the completed keystone insert into the keystone aperture of the wall plate or patch panel until it clicks into place. After installation, test the link with appropriate network testers to verify continuity and performance for 10GBASE-T where required.

Recommendations

To maintain Cat6a performance, keep pair untwist lengths to a minimum at the termination point, ensure proper shielding continuity when using shielded cables, and perform certification testing for installations that require guaranteed 10 Gigabit throughput.
