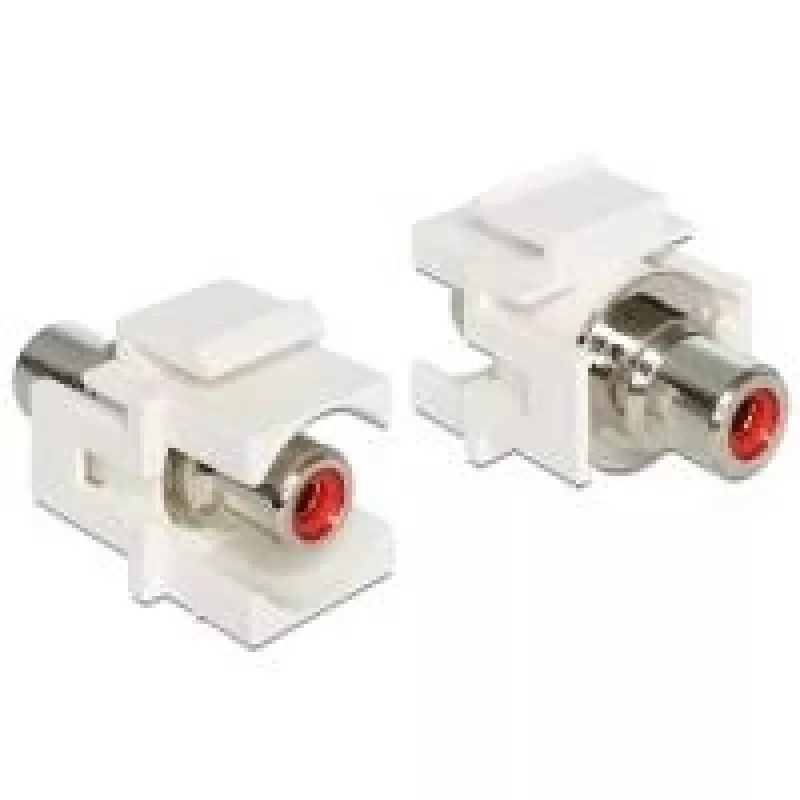

Módulo Keystone DeLOCK 86305 conector macho RCA rojo

The DeLOCK 86305 Keystone Module is a compact keystone insert with red RCA connectors for extending coaxial or RCA connections. With standardised keystone dimensions (18 mm width) and a depth of 33.2 mm, height 22.3 mm, it is designed for snap-in mounting into keystone patch panels, face plates or surface-mount boxes and provides reliable audio and video signal transmission for home theater and professional audio/video setups.

Advantages

The module offers a standard keystone form factor for easy installation and compatibility with common keystone openings. Its red RCA connector enables clear identification of the signal channel and ensures stable contact for audio and video signals. The compact size minimises space usage in panels and wall plates.

Suitable for

• Extending RCA/coax connections in home theatre systems
• Patch panels and wall plates in AV installations
• Small form-factor AV cabinets and surface-mount boxes

Key specifications

• Brand: DELOCK
• Model: 86305
• Connector: RCA (red)
• Keystone width: 18 mm
• Depth: 33.2 mm
• Height: 22.3 mm
• Colour: Red
• MPN: 86305
• EAN: 4043619863051

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect the RCA cable to the front red RCA jack and the corresponding cable or connector at the rear. Ensure connections are secure and routed to avoid strain on the connector. Suitable for use in patch panels, face plates or surface-mount boxes that accept standard keystone inserts.

Recommendations

Use the module in dry, indoor environments and avoid excessive mechanical stress on the RCA connector. For best signal quality, use appropriate RCA or coaxial cables and maintain secure, clean connections.
