Módulo Keystone DeLOCK 86744

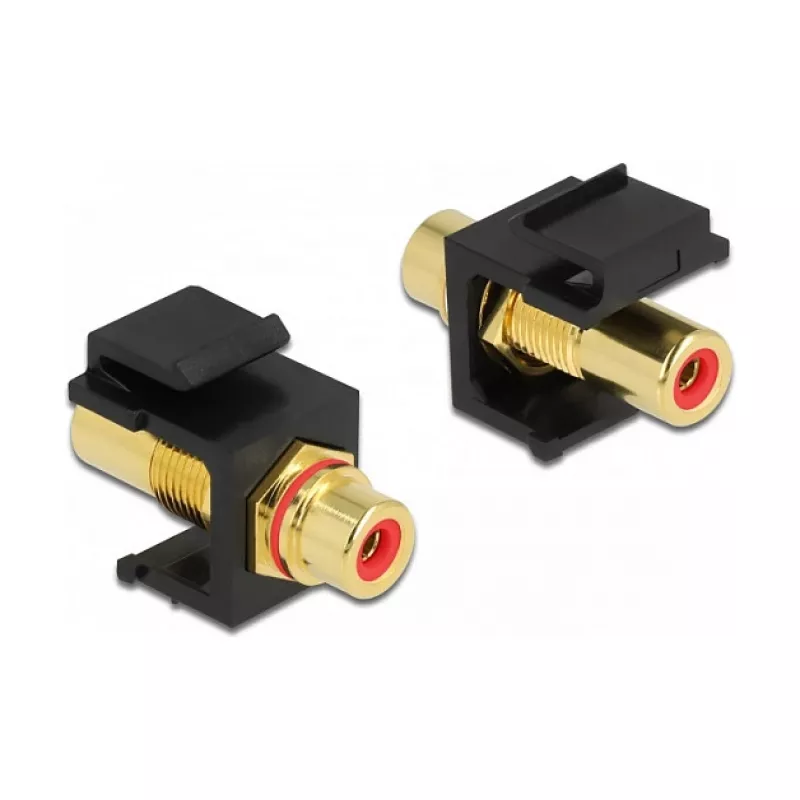

The DeLOCK 86744 keystone module provides a compact RCA connection for audio and video setups. With a flat construction and black finish, this module is designed for snap-in mounting in standard keystone openings such as patch panels, face plates, or surface-mount boxes. It measures 16.3 mm (W) × 33.2 mm (D) × 22.3 mm (H) and is supplied as a single unit for extending or terminating RCA stereo cables.

Advantages

The module offers a standardized keystone format for quick installation, a sturdy RCA connector for reliable signal transmission, and a low-profile design that fits common mounting panels and plates. Its black finish provides a discreet appearance in AV installations.

Suitable for

• Extending or terminating stereo RCA audio cables
• Home audio and video installations
• Keystone patch panels, face plates and surface-mount boxes

Key specifications

• Connector 1: RCA
• Connector 2: RCA
• Colour: Black
• Dimensions (W×D×H): 16.3 × 33.2 × 22.3 mm
• Sold: single unit

How to use

Press the keystone module into a compatible keystone opening until it snaps into place. Connect RCA cables to the front and rear RCA connectors to extend or terminate the audio/video line. Ensure connectors are fully seated to maintain a secure electrical connection.

Recommendations

For best results, install the module into standard keystone-compatible panels and avoid excessive force when inserting or removing RCA plugs. Verify cable polarity and signal type before connecting to prevent miswiring.
