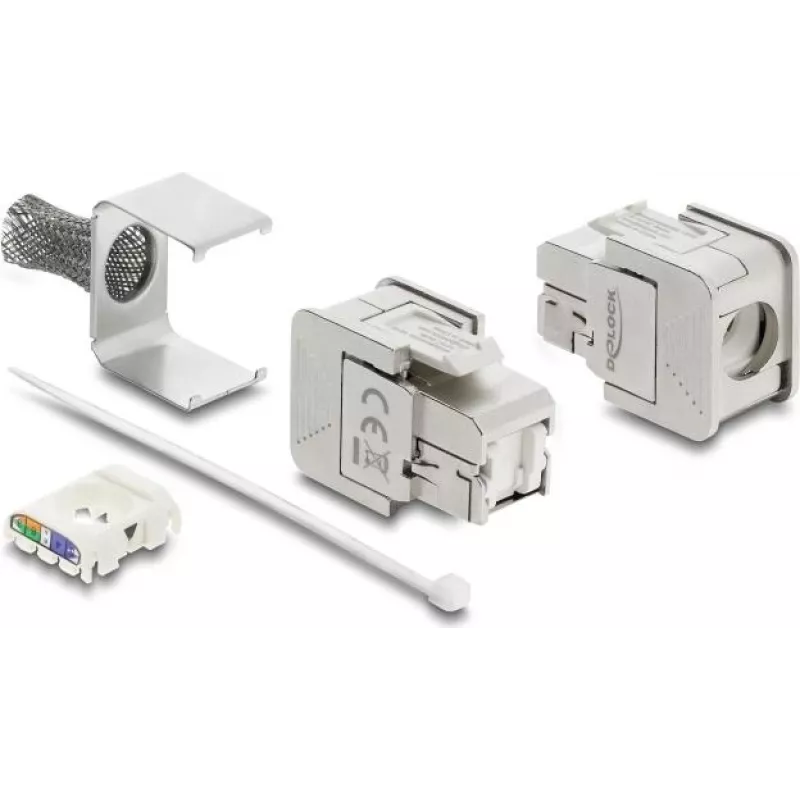

Módulo Keystone Delock RJ45 hembra a LSA Cat.6A apantallado con malla de apantallamiento sin herramientas (91084)

The Delock Keystone Module 91084 is a high-performance RJ45 female to LSA connection module designed for Cat.6A networks. It features full shielding with a shielding braid to ensure reliable data transmission up to 10 Gigabit Ethernet. The tool-free installation allows for quick and easy termination without special tools, making it ideal for structured cabling in professional environments.

Advantages

Tool-free connection saves time and reduces installation errors. The robust zinc die-cast housing and gold-plated contacts provide excellent durability and signal integrity. Supports both solid and stranded cables (AWG 22-26) and is compatible with TIA/EIA 568 A/B wiring standards.

Suitable for

• Structured cabling in data centers and server rooms
• High-speed network installations requiring 10GBASE-T
• Keystone patch panels and wall outlets

Key specifications

• Connector 1: RJ45 Female (8P8C)
• Connector 2: LSA (Insulation Displacement Connector)
• Network Category: Cat.6A
• Shielding: STP (Shielded Twisted Pair) with shielding braid
• Transmission Speed: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA 568 A/B
• Cable Compatibility: Solid and stranded wire, AWG 26 - AWG 22
• Installation Method: Tool-free
• Housing Material: Zinc die-cast
• Contact Plating: Gold-plated (3µ)
• Mounting Standard: Keystone Module (19.2 x 14.9 mm)
• Operating Temperature: -10 °C to 60 °C
• Compliance: ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2

Recommendations

For optimal performance, use with Cat.6A or higher cabling and ensure proper grounding of the shielding.
