Módulo Keystone ShiverPeaks 08-10070-5 plano oro blanco conector macho F

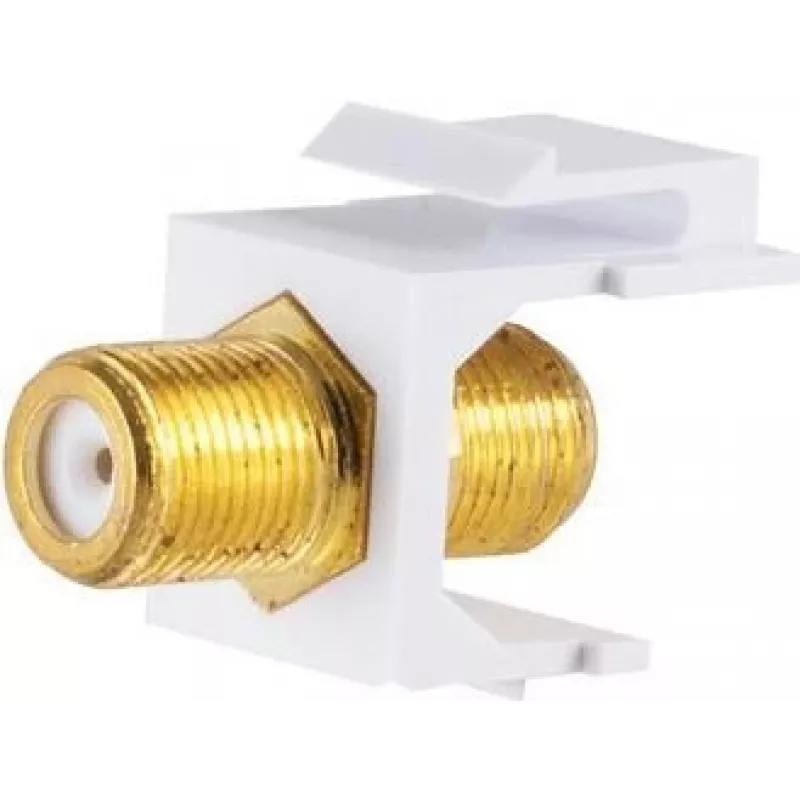

The ShiverPeaks 08-10070-5 Keystone Module is a flat keystone insert designed for installations requiring an F connector. Finished in gold and white, this module provides a low-profile connection point for coaxial cabling and is supplied in a pack of five. Its flat construction is intended to fit standard keystone wall plates and patch panels where a slim, unobtrusive F connector interface is needed.

Advantages

The flat design reduces protrusion behind wall plates and in shallow enclosures, while the gold-plated contact area improves corrosion resistance and signal transfer. The white trim offers a neutral appearance that integrates with most plate colors and interior finishes. Supplied as a set of five modules, it simplifies multi-point installations and replacements, reducing the need to purchase individual connectors for each outlet.

Suitable for

• Home and office coaxial outlet installations
• Patch panels and keystone wall plates with flat keystone openings
• Replacement of existing F connector inserts
• Low-profile installations behind shallow backboxes
• Multi-room TV and FM antenna distribution

Key specifications

• Connector type: F female
• Format: Flat keystone module
• Finish: Gold-plated contact, white housing trim
• Pack contents: 5 identical modules
• Compatible with standard keystone openings and wall plates

How to use

Push the keystone module into the corresponding opening of a compatible wall plate or patch panel until it clicks into place. Terminate the coaxial cable with the matching F male connector and screw it into the module's female thread for a secure connection. For removal, depress the retaining clip on the module and pull it out of the keystone opening. Ensure the cable and connector are properly seated and tightened to maintain signal quality.

Recommendations

When installing multiple modules, label or document the connected cables to simplify future maintenance. Where possible, use properly shielded coaxial cable and torque the F connectors to the manufacturer's recommended specification to avoid signal loss or connector damage.
