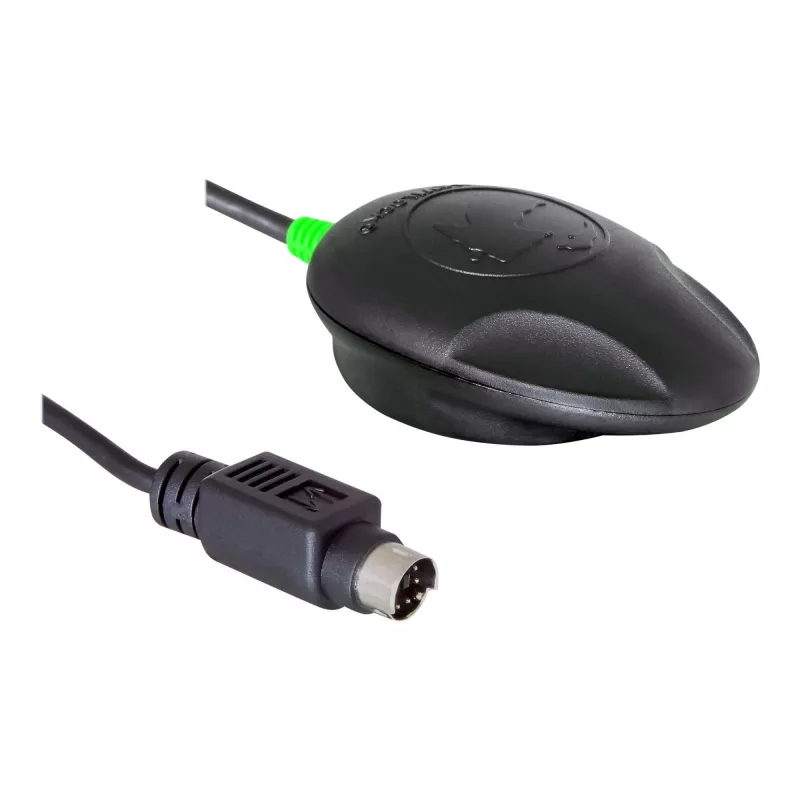

Módulo receptor GPS Navilock NL-603P

The Navilock NL-603P GPS receiver module is a compact, high-sensitivity GNSS unit designed for portable positioning and navigation tasks. With sensitivity down to -162 dBmW and support for L1 navigation signals, the module delivers reliable satellite reception in challenging signal conditions. The unit's compact dimensions (65 x 45 x 22 mm) and IPX6 water resistance rating make it suitable for outdoor use and integration into mobile setups. It is compatible with modern operating environments including Windows 10 Education and Enterprise and Android-based systems, enabling straightforward connectivity for a range of mapping, tracking and timing applications.

Advantages

The NL-603P combines high receiver sensitivity and L1 signal support to improve satellite lock speed and maintain stable positioning in urban canyons or partially obstructed environments. Its small form factor and low profile simplify installation in portable devices and dashboards. The IPX6 certification provides protection against powerful water jets, increasing reliability during outdoor operations. Compatibility with Windows 10 Education, Windows 10 Enterprise and Android ensures broad software support for data logging, navigation apps and custom solutions.

Suitable for

• Portable navigation and handheld mapping devices
• Vehicle tracking and fleet management systems
• Outdoor measurement and surveying tools
• Embedded systems requiring compact satellite positioning modules

Key specifications

• Receiver sensitivity: -162 dBmW for weak-signal environments
• Navigation support: L1 band signals compatible with standard GNSS satellites
• Dimensions: 65 x 45 x 22 mm for compact installation
• Water resistance rating: IPX6 suitable for protection against powerful water jets
• Host compatibility: Windows 10 Education, Windows 10 Enterprise and Android platforms

How to use

Connect the NL-603P to a compatible host device following the manufacturer's connection instructions for your platform. After physical connection and any required driver or app installation on Windows 10 Education/Enterprise or Android, power the module and allow it to acquire satellite signals. Position the module with a clear view of the sky for optimal reception; initial time-to-first-fix may vary depending on signal conditions. Use standard navigation or logging software to access position, time and satellite information provided by the receiver.

Recommendations

For best performance, mount the module with minimal obstructions toward the sky, avoid close proximity to large metal surfaces that can cause multipath, and ensure firmware and host drivers are kept up to date. While IPX6 protects against heavy water jets, avoid prolonged immersion and follow device integration guidelines for sealing and connector protection in wet environments.
