Módulo receptor GPS serie Navilock NL-8222MP

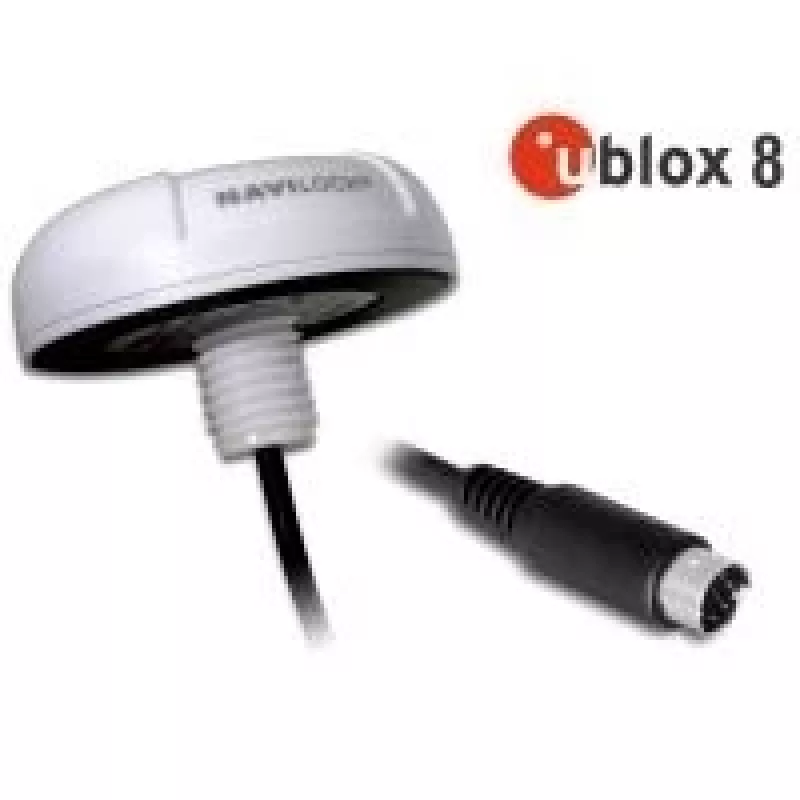

The Navilock NL-8222MP is a compact serial GPS receiver module based on the u-blox 8 chipset with a built-in high-sensitivity antenna. It supports L1 navigation signals at 1575.42 MHz and is designed for mounting on light-coloured surfaces such as boats, campers or buses; its unobtrusive white housing blends with vehicle exteriors. The unit measures 62 x 62 x 21 mm and connects to a notebook or other host using serial data; an MD6-style universal connector accepts optional USB or serial cables for flexible installation.

Advantages

The NL-8222MP delivers reliable satellite reception through its integrated antenna and u-blox 8 positioning engine, offering stable L1 tracking for navigation tasks. Its compact dimensions and low-profile white housing make it easy to install on vehicles or equipment without visual disruption. The universal connector increases compatibility with different host devices and cabling options.

Suitable for

• Navigation on boats, campers and buses
• Notebook-based routing and mobile mapping
• Vehicle or equipment mounting where a low-profile white receiver is preferred
• Applications requiring reliable L1 GNSS positioning

Key specifications

• Chipset: u-blox 8
• Frequency / band: L1 (1575.42 MHz)
• Dimensions: 62 mm x 62 mm x 21 mm
• Interface: Serial (MD6 universal connector; optional USB/serial cables)
• Housing colour: white (designed for installation on white surfaces)
• Brand / MPN / EAN: Navilock / 62530 / 4043619625307

How to use

Mount the receiver on a suitable flat, light-coloured surface (for example a boat deck, camper roof or vehicle body) ensuring the antenna has a clear view of the sky. Connect the unit to a laptop or host device using an appropriate serial or USB cable that fits the MD6-style universal connector. Configure your routing or navigation software to use the serial port provided by the receiver and set the correct baud rate if required. Verify satellite reception and allow the receiver a few minutes to acquire an initial fix.

Recommendations

For best performance, install the NL-8222MP where the antenna has an unobstructed view of the sky and away from large metal obstructions or sources of radio interference. Use quality cables and ensure connector contacts are secure; periodically check firmware and host software settings for compatibility with the u-blox 8 chipset.
