Módulo transceptor de fibra óptica BlueOptics 02314DBW-BO 100000 Mbit/s QSFP28

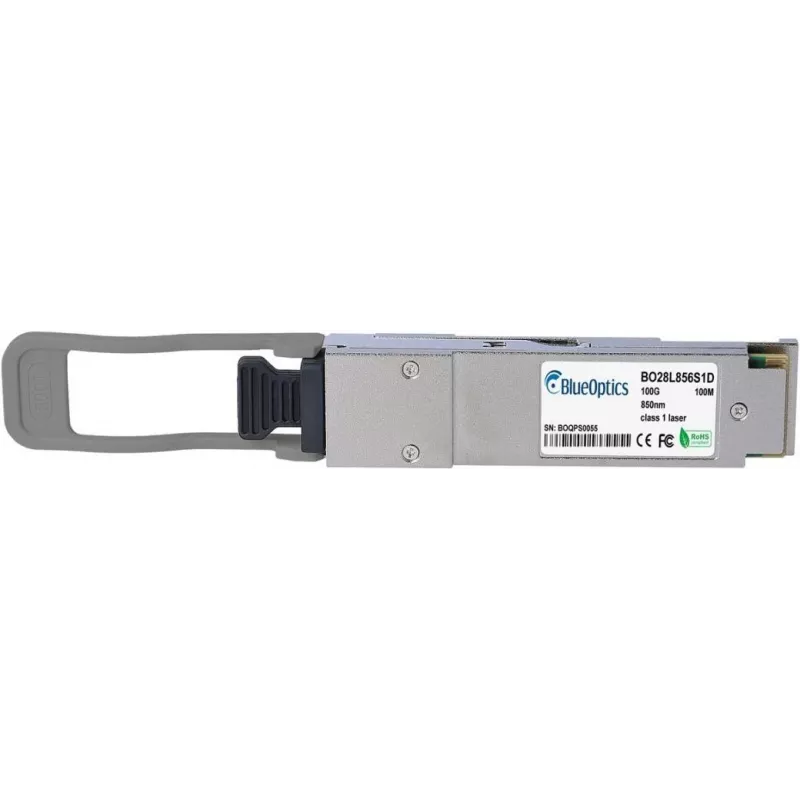

The BlueOptics 02314DBW-BO is a QSFP28 fiber optic transceiver module designed for high-speed optical links up to 100000 Mbit/s. It uses an LC Duplex connection and supports bidirectional multimode transmission (100GBASE‑SR2‑Bidi) with separate transmit and receive wavelengths in the 832–918 nm range. The module is built to MSA form-factor standards, has a compact silver housing, a low weight of approximately 40 g and an MTBF rated at 3,000,000 hours. It meets CE, FCC and RoHS compliance and integrates Digital Diagnostics Monitoring (DDM/DOM) for remote monitoring of voltage, temperature, laser current and optical power.

Advantages

The transceiver provides a standardized QSFP28 interface for 100 Gbit/s links, enabling simultaneous transmit and receive on a single multimode fiber via LC Duplex connectors. Its MSA-compliant design and component selection from established suppliers aim to ensure compatibility with common networking hardware and long operational life. Integrated digital diagnostics simplify fault finding and maintenance by delivering real‑time parameters for the optical link. The lightweight silver module is suitable for dense equipment deployments where space and weight matter.

Suitable for

• 100 Gbit/s uplinks between switches and routers in data centers
• High‑speed interconnects for storage systems and SAN fabrics
• Inter-rack fiber links and patch panel connections using LC Duplex
• Network equipment that supports QSFP28 100GBASE‑SR2‑Bidi transceivers

Key specifications

• Interface type: QSFP28
• Supported data rate: up to 100000 Mbit/s (100 Gbit/s)
• Optical mode: multimode fiber, bidirectional (SR2‑Bidi)
• Transmit wavelength range: 832–918 nm
• Receive wavelength range: 832–918 nm
• Connector: LC Duplex
• Form factor: QSFP28, silver housing
• Weight: approx. 0.04 kg
• MTBF: 3,000,000 hours
• Compliance: CE, FCC, RoHS
• Digital diagnostics: DDM / DOM (MSA SFF‑8472 compatible)

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port according to the host hardware manufacturer’s instructions. Connect LC Duplex multimode fiber patch cords to the transmit and receive ports, ensuring correct polarity. Check that the host device accepts third‑party QSFP28 modules and that DDM/DOM functions are supported by the equipment if you intend to monitor diagnostics. After insertion, verify link status and negotiated speed in the host management interface and perform optical power checks if required.

Recommendations

For best results use OM3/OM4 multimode fiber and high-quality LC Duplex patch cords, verify equipment compatibility with QSFP28 100GBASE‑SR2‑Bidi modules, and enable DDM/DOM support on the host for ongoing link monitoring and maintenance.
