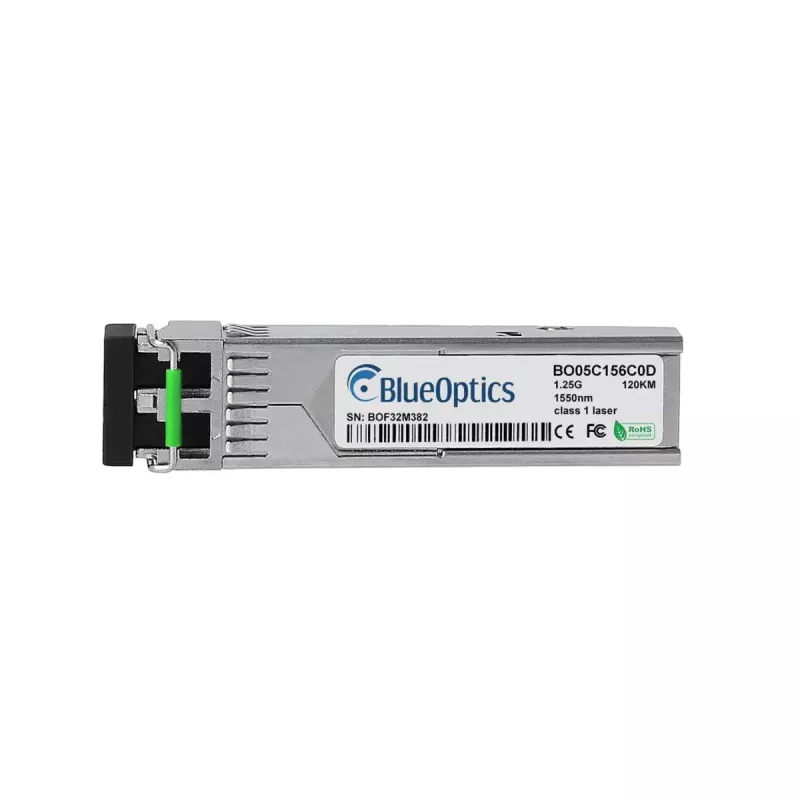

Módulo transceptor de fibra óptica BlueOptics 3HE01389CA-BO SFP 120000 m

The BlueOptics 3HE01389CA-BO SFP 120000 m is a single‑mode fiber optic transceiver module compliant with MSA SFP form factor standards. Designed for long‑distance optical links, it supports 1000BASE‑ZX operation with LC duplex connector and 1550 nm transmitter and receiver wavelengths, enabling data transmission up to 120 kilometres. The module comes in an aluminium housing, weighs approximately 20 g and is intended for use in network equipment that accepts SFP 1000BASE‑ZX transceivers.

Advantages

The module provides long‑reach connectivity while remaining lightweight and mechanically robust due to its aluminium casing. It follows industry MSA specifications for SFP compatibility and is tested for interoperability with major hardware platforms. Built with quality optical components and ICs, the transceiver offers stable signal transmission for Ethernet, Fibre Channel over Ethernet and SDH/SONET applications up to 1.25 Gbit/s over single‑mode fiber.

Suitable for

• Long‑distance point‑to‑point fiber links (up to 120 km)
• Switches and routers that accept SFP 1000BASE‑ZX modules
• Storage systems and SAN connections requiring optical interfaces
• Telecom and carrier networks using SDH/SONET or Fibre Channel over Ethernet

Key specifications

• Form factor: SFP (MSA compliant)
• Data rate: up to 1.25 Gbit/s (1000BASE‑ZX)
• Wavelength: 1550 nm transmitter and 1550 nm receiver
• Maximum reach: up to 120 000 m (120 km) over single‑mode fiber

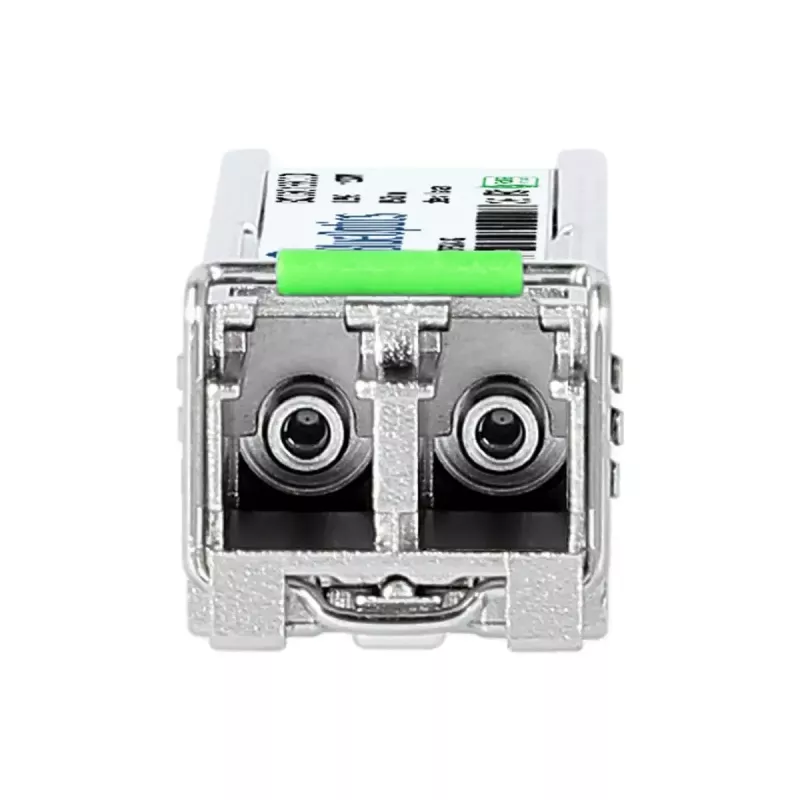

• Connector: LC duplex
• Housing material: aluminium
• Weight: approx. 0.02 kg

How to use

Install the BlueOptics SFP module into a compatible SFP cage on the target switch, router or storage device following the device manufacturer’s instructions. Ensure the host device supports 1000BASE‑ZX SFP transceivers and, if required, enable or verify Digital Diagnostics Monitoring (DDM/DOM) support in the host to access real‑time status parameters. Connect the LC duplex single‑mode fiber patch cord to the module, observing transmit/receive orientation. Verify link status and network configuration after insertion and optical mating.

Recommendations

Use single‑mode fiber and LC duplex patch cords rated for long‑reach links, maintain clean connector endfaces to prevent signal loss, and confirm that the host equipment supports DDM/DOM if diagnostic monitoring is required. For interoperability, test the module in the intended hardware and software environment before deployment in critical links.
