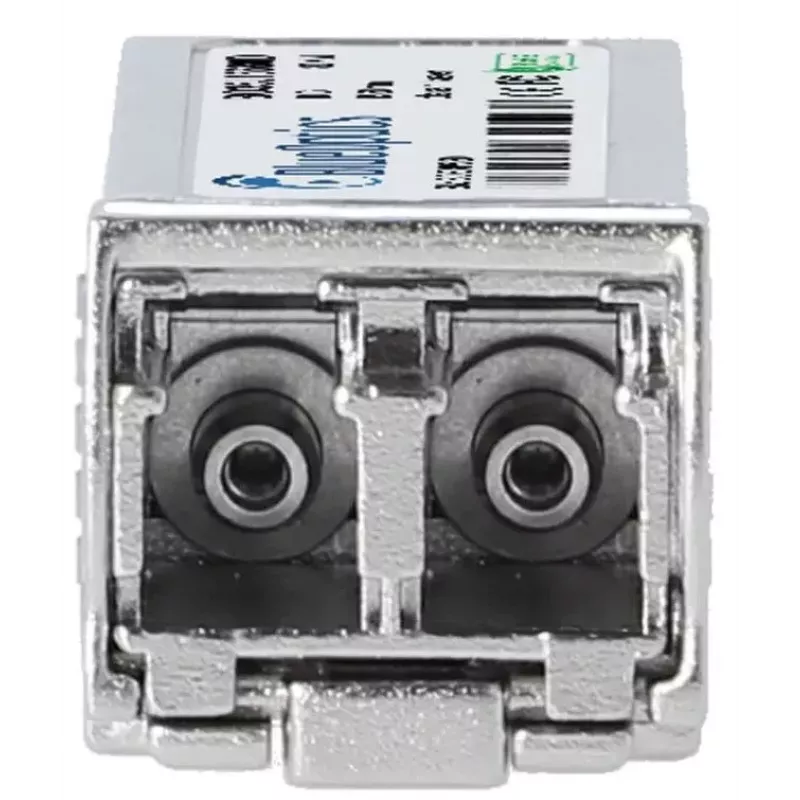

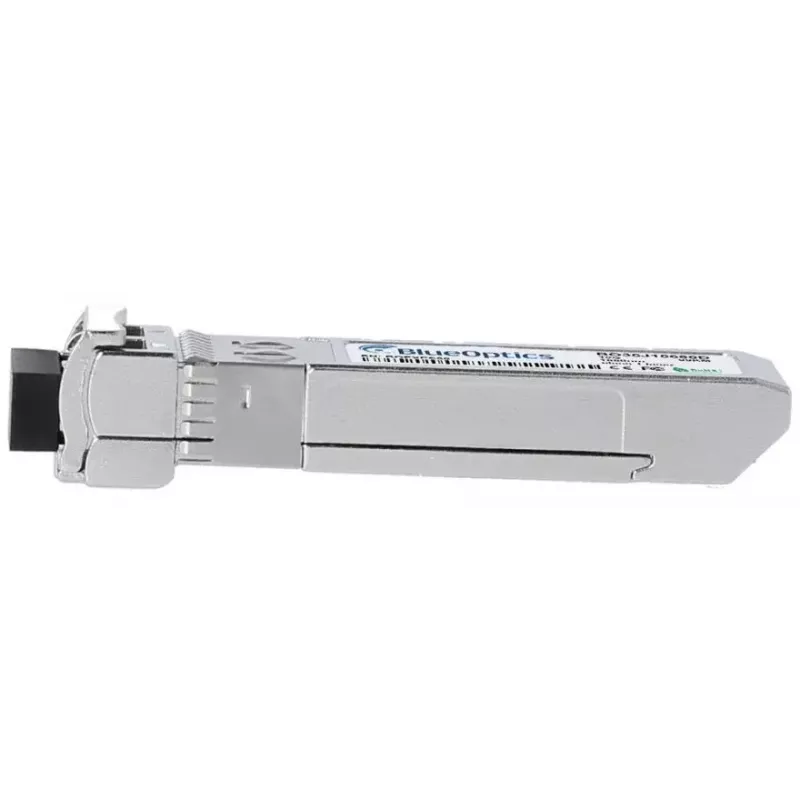

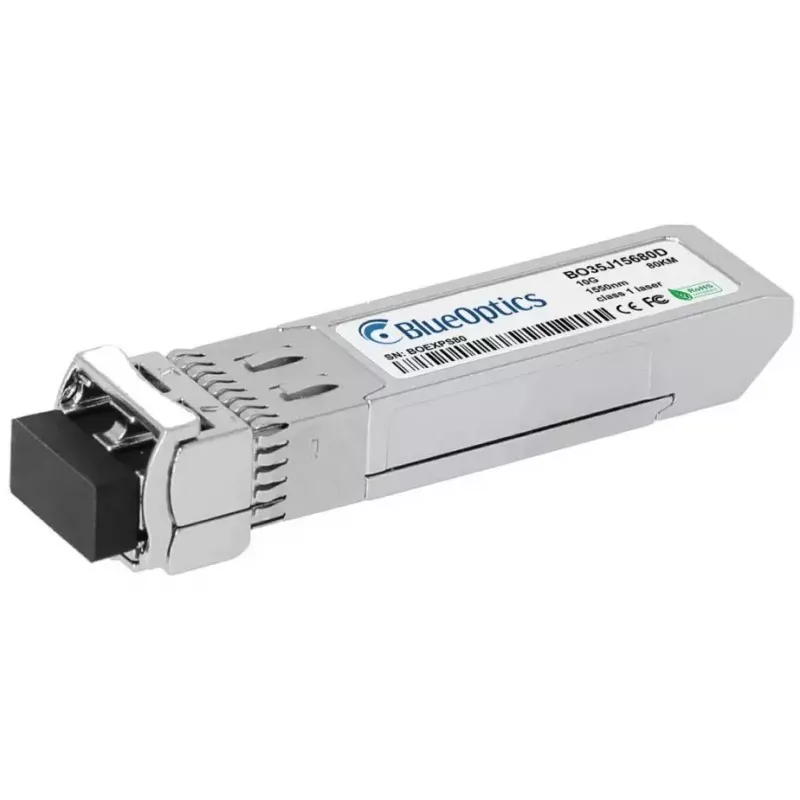

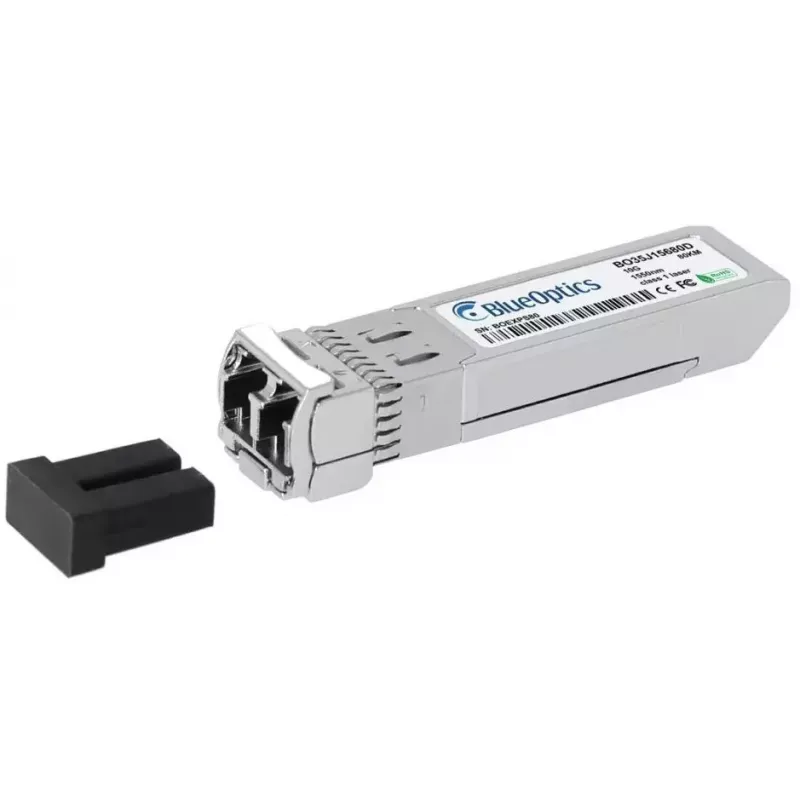

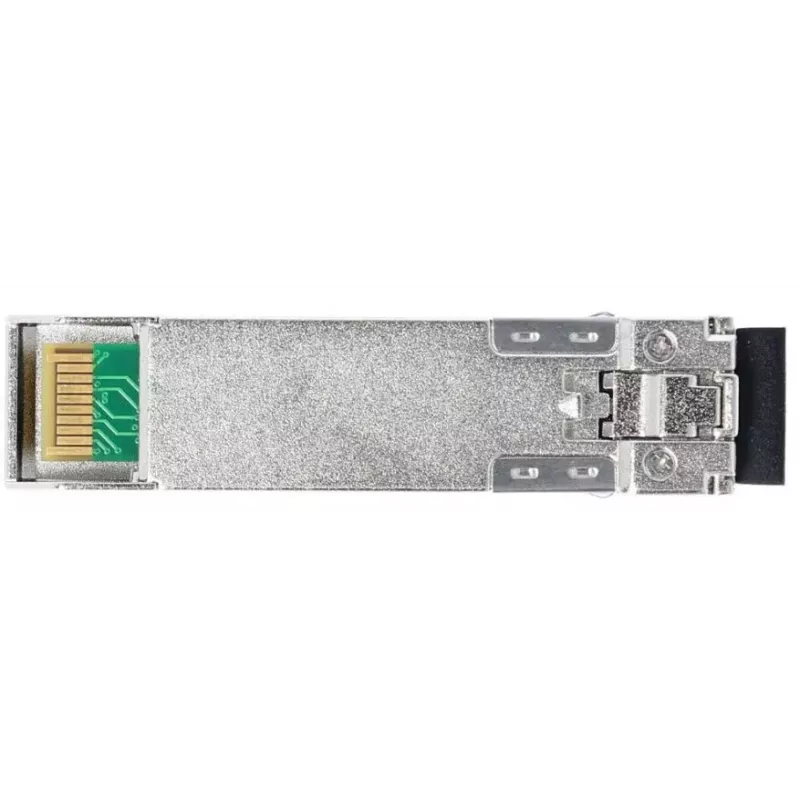

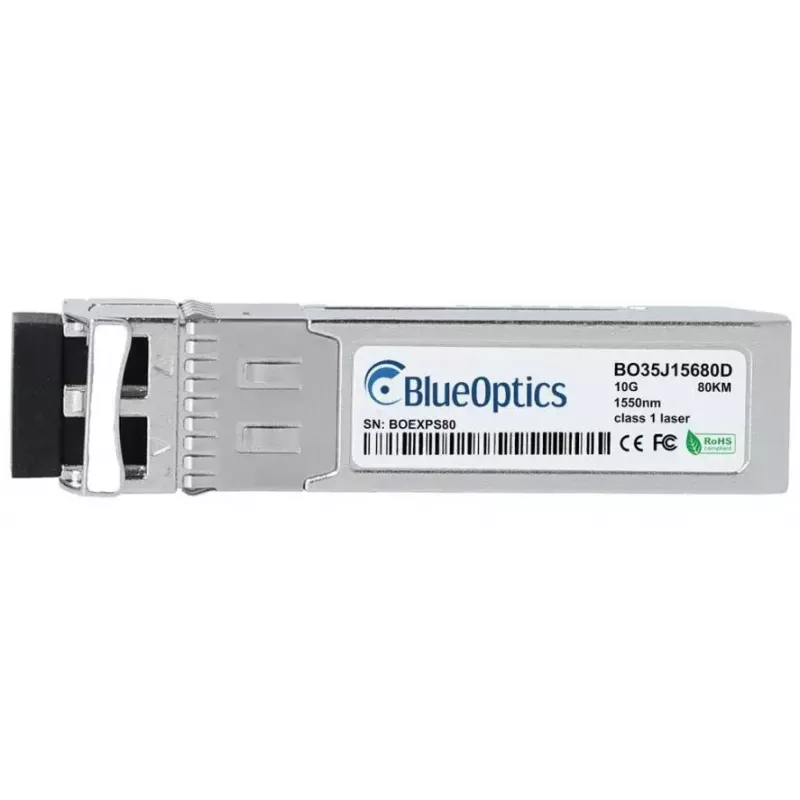

Módulo transceptor de fibra óptica BlueOptics 740-045928-BO SFP+ LC aluminio 20 g

The BlueOptics 740-045928-BO SFP+ LC Aluminium 20g is a fiber optic transceiver module designed for high-speed single-mode links. It follows MSA SFP+ form factor standards and uses an LC duplex connector for simultaneous transmit and receive over two fibers. Constructed with an aluminum housing and weighing approximately 20 g, this module supports 10G-class optical transmission suitable for long-reach applications when used with compatible network equipment and single-mode fiber.

Advantages

This SFP+ transceiver offers plug-and-play SFP+ compatibility with devices that accept MSA-compliant modules, providing a compact aluminum design for mechanical robustness and thermal dissipation. The LC duplex interface enables duplex optical connections while the single-mode optical design supports extended reach. The module is engineered and tested for interoperability with major vendor hardware and includes digital diagnostics monitoring support when the host platform enables it.

Suitable for

• 10 Gigabit Ethernet uplinks and fiber backbone connections
• Long-reach single-mode links in carrier, campus or data center environments
• Interconnecting switches, routers, storage systems and optical patch panels
• Replacement of MSA-compliant SFP+ transceivers in supported hardware

Key specifications

• Interface type: SFP+ (MSA form factor)
• Connector: LC duplex
• Optical medium: Single-mode fiber
• Transmission rate: 10 Gbps class (10GBASE specification compatibility)
• Housing material: Aluminium
• Weight: approx. 0.02 kg
• Digital Diagnostics Monitoring (DDM/DOM): supported when enabled by host

How to use

Install the transceiver into an SFP+ port of a compatible switch, router or storage device by aligning the module with the slot and pushing gently until it latches. Connect LC duplex single-mode patch cords to the module’s LC ports, ensuring correct TX/RX orientation. Verify link status and speed on the host device. If digital diagnostics are required, enable and read DDM/DOM parameters from the host management interface where supported.

Recommendations

Use high-quality single-mode LC patch cords, maintain clean fiber endfaces, and verify that the host device firmware supports third-party SFP+ modules and DDM if needed. For long-distance links, confirm power budget and transceiver wavelength compatibility with connected equipment and perform link testing after installation.
